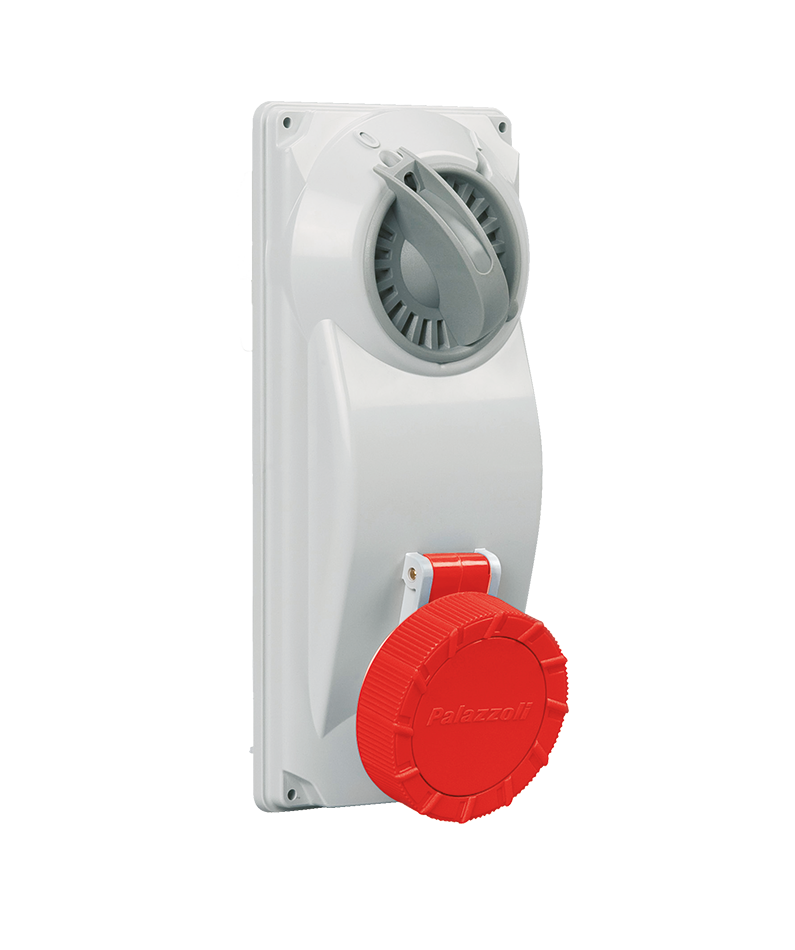

Vertical Switched Interlocked Socket - Without Backbox IP44

  • Interlocked socket-outlet for distribution boards.
  • Padlockable handle in open or closed position, with max 3 mm Ø padlock.
  • Best use for standard installations/applications.
  • Rated current from 16A up to 32A.
  • Operating voltage option from 110V up to 400V.
  • Thermoplastic body.
  • NOT supplied with backbox
Product selector
Part number Rated current Rated operating voltage Poles Clock Position Frequency IP Protection degree EAN Code
492124 16A 110V 2P+ 4h 50/60Hz IP44 8014950037575
492126 16A 230V 2P+ 6h 50/60Hz IP44 8014950037582
492136 16A 400V 3P+ 6h 50/60Hz IP44 8014950037599
492146 16A 400V 3P+N+ 6h 50/60Hz IP44 8014950037605
492226 32A 230V 2P+ 6h 50/60Hz IP44 8014950037612
492236 32A 400V 3P+ 6h 50/60Hz IP44 8014950037636
492246 32A 400V 3P+N+ 6h 50/60Hz IP44 8014950037629
