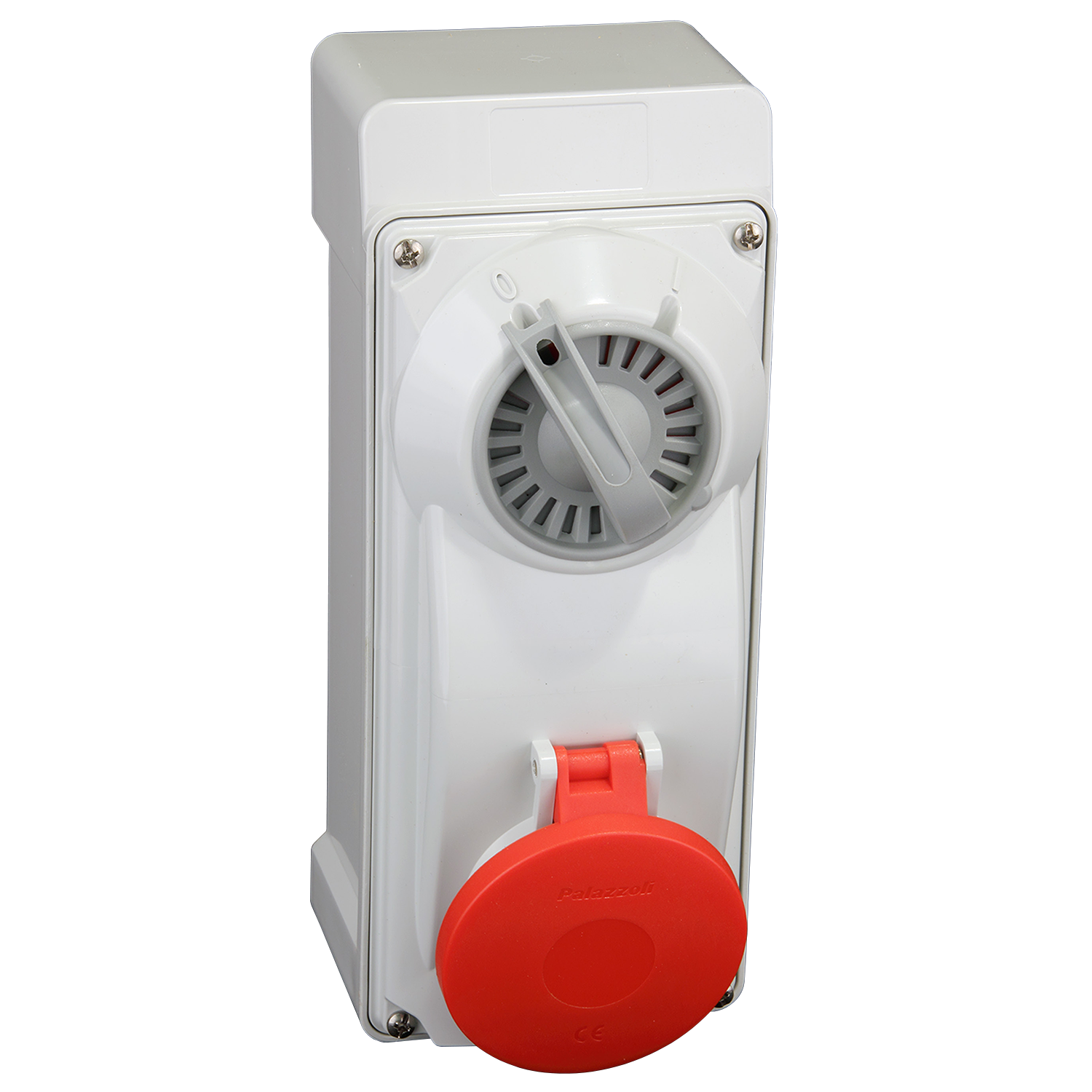

Vertical Switched Interlocked Socket - With Backbox IP44

  • Interlocked socket-outlet for distribution boards.
  • Padlockable handle in open or closed position, with max 3 mm Ø padlock.
  • Best use for standard installations/applications.
  • Rated current from 16A up to 32A.
  • Operating voltage option from 110V up to 400V.
  • Thermoplastic body.
  • Supplied with backbox.
Product selector
Part number Rated current Rated operating voltage Poles Clock Position Frequency IP Protection degree EAN Code
PM16/3300NFPB 16A 110V 2P+ 4h 50/60Hz IP44 8014950038244
PM16/3301NFPB 16A 230V 2P+ 6h 50/60Hz IP44 8014950038251
PM16/3305NFPB 16A 400V 3P+ 6h 50/60Hz IP44 8014950038268
PM16/3308NFPB 16A 400V 3P+N+ 6h 50/60Hz IP44 8014950038275
PM32/3300NFPB 32A 110V 2P+ 4h 50/60Hz IP44 8014950038282
PM32/3301NFPB 32A 230V 2P+ 6h 50/60Hz IP44 8014950038299
PM32/3305NFPB 32A 400V 3P+ 6h 50/60Hz IP44 8014950038305
PM32/3308NFPB 32A 400V 3P+N+ 6h 50/60Hz IP44 8014950038312
