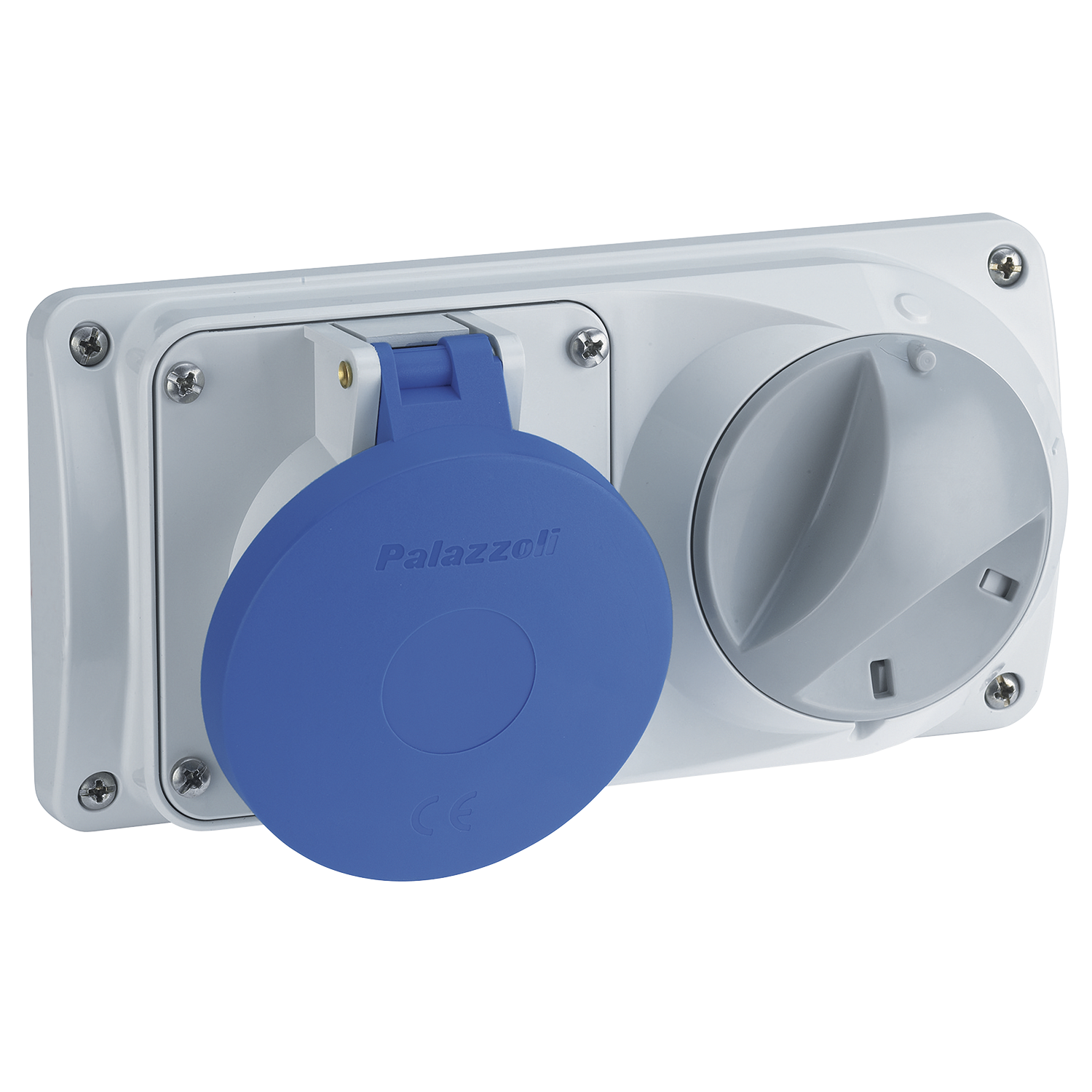

Horizontal Switched Interlocked Socket - Without Backbox IP44

  • Prima series designed as compact horizontal interlocked socket-outlet for distribution boards and standard applications.
  • Padlockable handle in open or closed position, with max 3 mm Ø padlock.
  • Compliance with standards IEC/EN 60309-1/2/4 and 60947-3.
  • Rated current from 16A up to 32A.
  • Operating voltage option from 110V up to 400V.
  • Thermoplastic body.
  • NOT supplied with backbox
Product selector
Part number Rated current Rated operating voltage Poles Clock Position Frequency IP Protection degree EAN Code
493124 16A 110V 2P+ 4h 50/60Hz IP44 8014950006212
493126 16A 230V 2P+ 6h 50/60Hz IP44 8014950006229
493136 16A 400V 3P+ 6h 50/60Hz IP44 8014950006250
493146 16A 400V 3P+N+ 6h 50/60Hz IP44 8014950006281
493226 32A 230V 2P+ 6h 50/60Hz IP44 8014950006311
493236 32A 400V 3P+ 6h 50/60Hz IP44 8014950006342
493246 32A 400V 3P+N+ 6h 50/60Hz IP44 8014950006373
