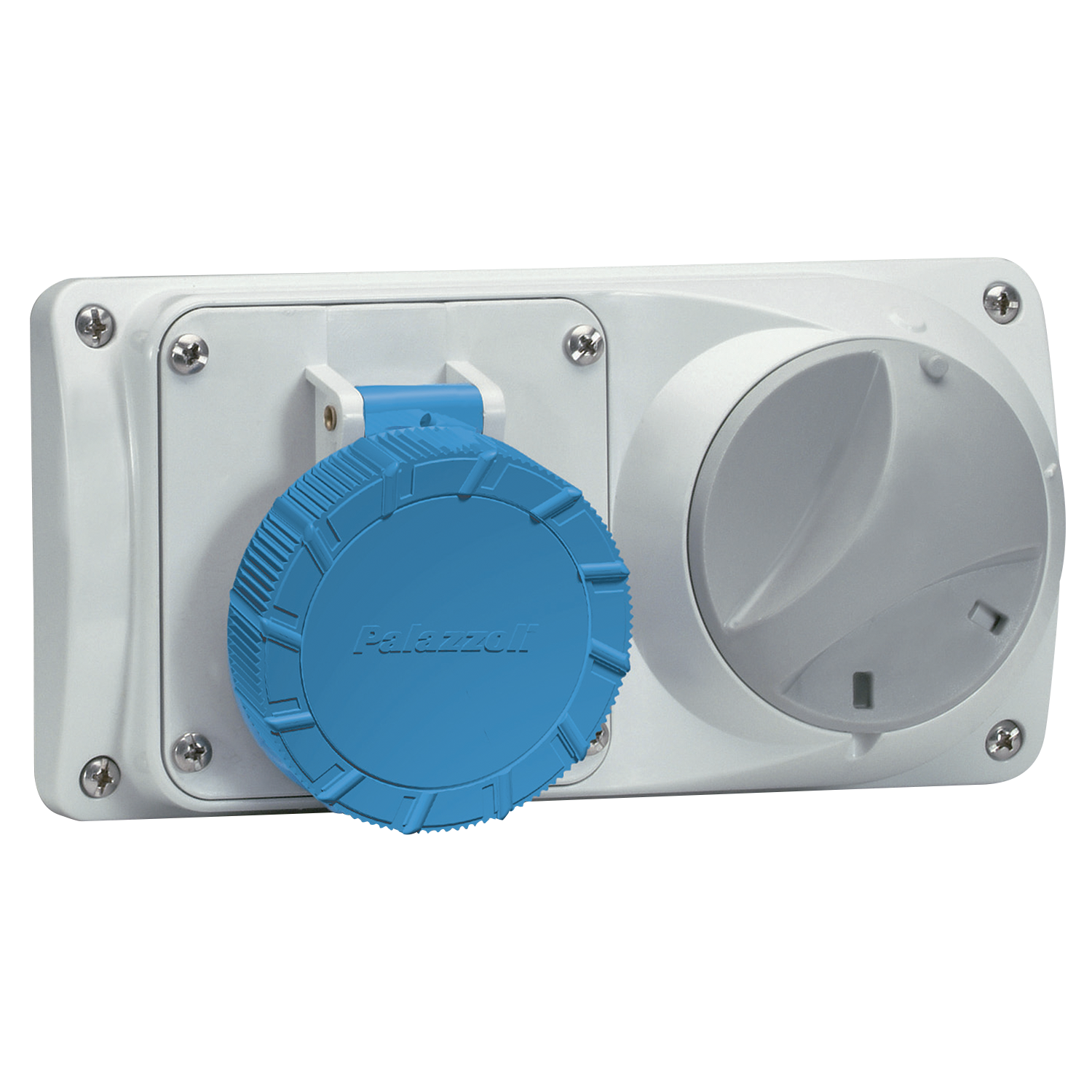

Horizontal Switched Interlocked Socket - Without Backbox IP55

  • Prima series designed as compact horizontal interlocked socket-outlet for distribution boards and standard applications.
  • Padlockable handle in open or closed position, with max 3 mm Ø padlock.
  • Compliance with standards IEC/EN 60309-1/2/4 and 60947-3.
  • Rated current from 16A up to 32A.
  • Operating voltage option from 110V up to 400V.
  • Thermoplastic body.
  • NOT supplied with backbox
Part number Rated current Rated operating voltage Poles Clock Position Frequency Protection degree EAN Code
495124 16A 110V 2P+ 4h 50/60Hz IP55 8014950010967
495134 16A 110V 3P+ 4h 50/60Hz IP55 8014950010998
495144 16A 110V 3P+N+ 4h 50/60Hz IP55 8014950011025
495126 16A 230V 2P+ 6h 50/60Hz IP55 8014950010974
495139 16A 230V 3P+ 9h 50/60Hz IP55 8014950011018
495149 16A 230V 3P+N+ 9h 50/60Hz IP55 8014950011049
495129 16A 400V 2P+ 9h 50/60Hz IP55 8014950010981
495136 16A 400V 3P+ 6h 50/60Hz IP55 8014950011001
495146 16A 400V 3P+N+ 6h 50/60Hz IP55 8014950011032
495224 32A 110V 2P+ 4h 50/60Hz IP55 8014950011056
495234 32A 110V 3P+ 4h 50/60Hz IP55 8014950011087
495244 32A 110V 3P+N+ 4h 50/60Hz IP55 8014950011117
495226 32A 230V 2P+ 6h 50/60Hz IP55 8014950011063
495239 32A 230V 3P+ 9h 50/60Hz IP55 8014950011100
495249 32A 230V 3P+N+ 9h 50/60Hz IP55 8014950011131
495229 32A 400V 2P+ 9h 50/60Hz IP55 8014950011070
495236 32A 400V 3P+ 6h 50/60Hz IP55 8014950011094
495246 32A 400V 3P+N+ 6h 50/60Hz IP55 8014950011124
495233 32A 380/440V 3P+ 3h 50/60Hz IP55 8014950033454
