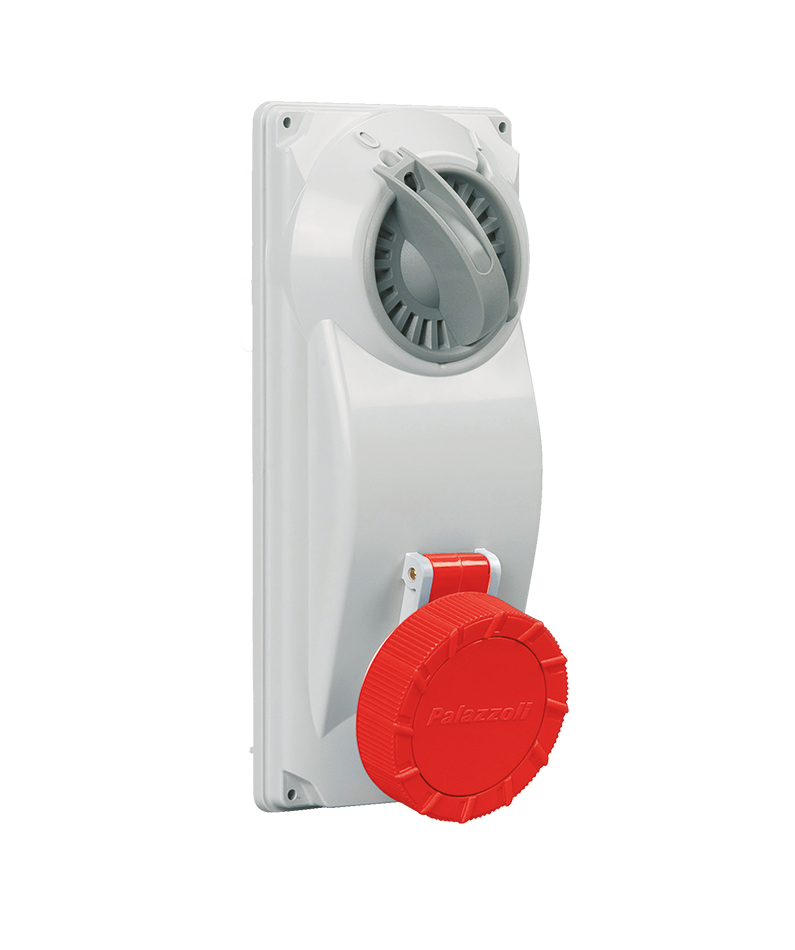

Vertical Switched Interlocked Socket - Without Backbox IP66

  • Interlocked socket-outlet for distribution boards.
  • Padlockable handle in open or closed position, with max 3 mm Ø padlock.
  • Best use for standard installations/applications.
  • Rated current from 16A up to 32A.
  • Operating voltage option from 110V up to 400V.
  • Thermoplastic body.
  • NOT supplied with backbox
Part number Rated current Rated operating voltage Poles Clock Position Frequency Protection degree EAN Code
491124 16A 110V 2P+ 4h 50/60Hz IP66/IP67 8014950037384
491134 16A 110V 3P+ 4h 50/60Hz IP66/IP67 8014950037414
491144 16A 110V 3P+N+ 4h 50/60Hz IP66/IP67 8014950037445
491126 16A 230V 2P+ 6h 50/60Hz IP66/IP67 8014950037391
491139 16A 230V 3P+ 9h 50/60Hz IP66/IP67 8014950037438
491149 16A 230V 3P+N+ 9h 50/60Hz IP66/IP67 8014950037469
491129 16A 400V 2P+ 9h 50/60Hz IP66/IP67 8014950037407
491136 16A 400V 3P+ 6h 50/60Hz IP66/IP67 8014950037421
491146 16A 400V 3P+N+ 6h 50/60Hz IP66/IP67 8014950037452
491224 32A 110V 2P+ 4h 50/60Hz IP66/IP67 8014950037476
491234 32A 110V 3P+ 4h 50/60Hz IP66/IP67 8014950037513
491244 32A 110V 3P+N+ 4h 50/60Hz IP66/IP67 8014950037544
491226 32A 230V 2P+ 6h 50/60Hz IP66/IP67 8014950037483
491239 32A 230V 3P+ 9h 50/60Hz IP66/IP67 8014950037537
491249 32A 230V 3P+N+ 9h 50/60Hz IP66/IP67 8014950037568
491229 32A 400V 2P+ 9h 50/60Hz IP66/IP67 8014950037490
491236 32A 400V 3P+ 6h 50/60Hz IP66/IP67 8014950037520
491246 32A 400V 3P+N+ 6h 50/60Hz IP66/IP67 8014950037551
491233 32A 380/440V 3P+ 3h 50/60Hz IP66/IP67 8014950037506
481324 63A 110V 2P+ 4h 50/60Hz IP65 8014950016235
481334 63A 110V 3P+ 4h 50/60Hz IP65 8014950016266
481344 63A 110V 3P+N+ 4h 50/60Hz IP65 8014950016297
481326 63A 230V 2P+ 6h 50/60Hz IP65 8014950016242
481339 63A 230V 3P+ 9h 50/60Hz IP65 8014950016280
481349 63A 230V 3P+N+ 9h 50/60Hz IP65 8014950016310
481329 63A 400V 2P+ 9h 50/60Hz IP65 8014950016259
481336 63A 400V 3P+ 6h 50/60Hz IP65 8014950016273
481346 63A 400V 3P+N+ 6h 50/60Hz IP65 8014950016303
