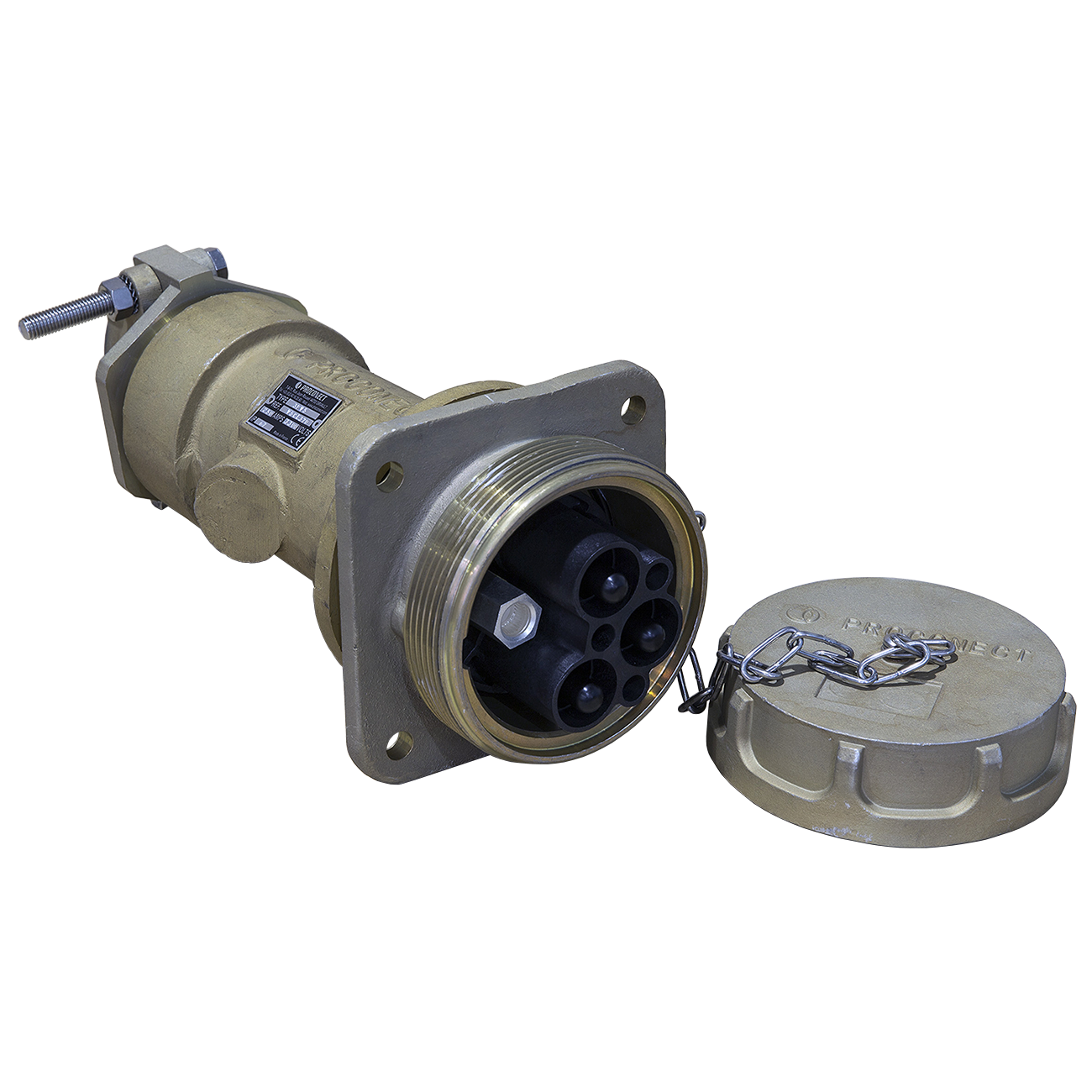

Straight Mobile Connector IP67 - Aluminium 250A to 400A

  • Connections for high amperages.
  • High resistance, reliability and safety for heavy loads.
  • Compliance with standards IEC/EN 60309-1.
  • Rated voltage up to 1000V.
  • IK10 as per IEC/EN 62262.
  • Made of aluminium alloy with anti-corrosion passivation surface treatment.
Product selector
Part number Rated current Rated operating voltage Poles Clock Position Frequency IP Protection degree EAN Code
760530 250A 1000V 3P+ N/A 50/60Hz IP67 8014950053223
760550 250A 1000V 3P+N+ N/A 50/60Hz IP67 8014950053230
760650 320A 1000V 3P+N+ N/A 50/60Hz IP67 8014950116751
760750 400A 1000V 3P+N+ N/A 50/60Hz IP67 8014950116768
