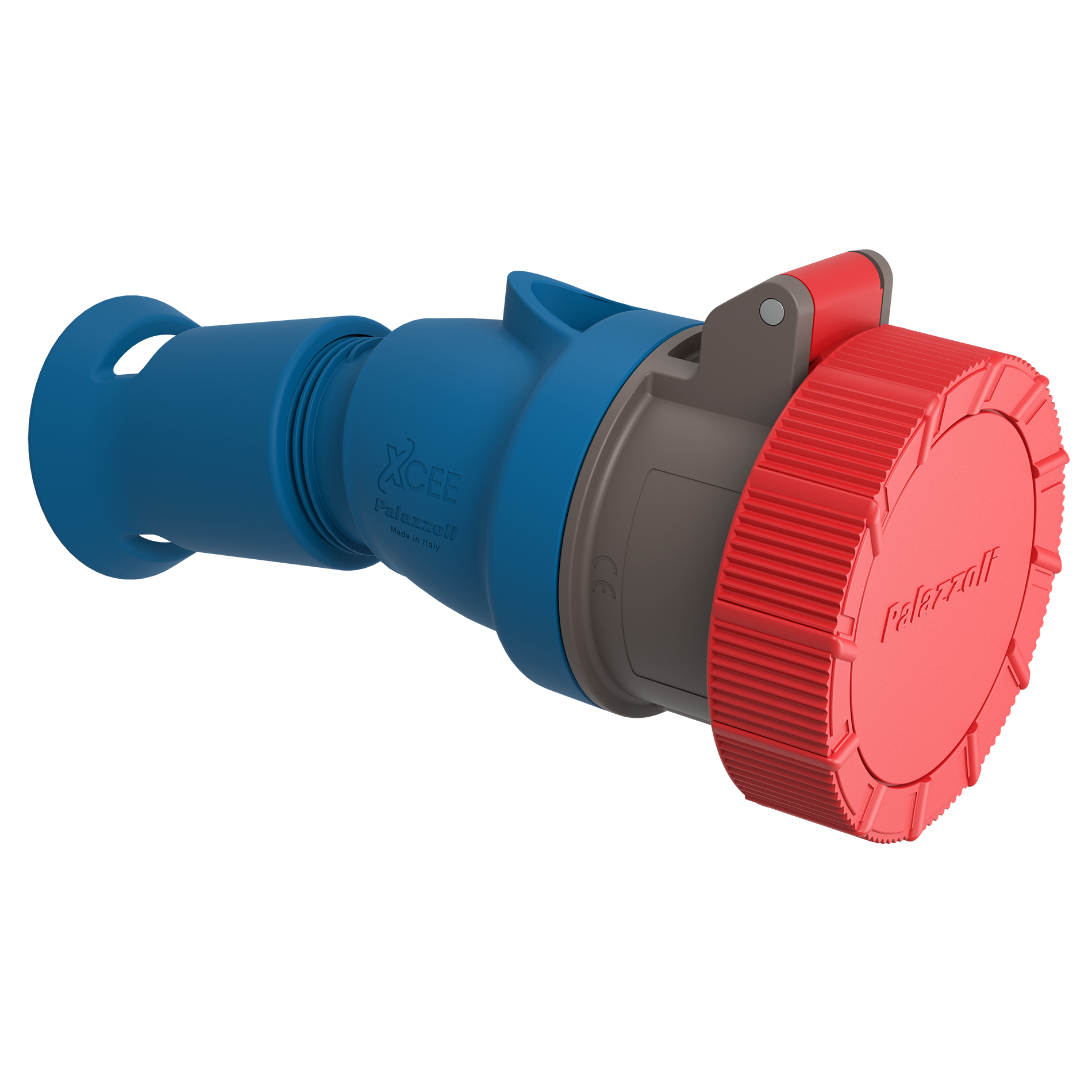

Couplers - XCEE

  • Safety performance as per IEC 60309 industrial socket-outlet.
  • Designed to allow for padlocking, either in a stand-alone fashion or connected to sockets.
  • Advanced comfort grip with an anti-slip coating (Even with gloves).
  • Rated current from 16A up to 125A.
  • Rated Voltage option from 110V up to 500V.
  • IP66/IP67/IP68/IP69 protection rating in accordance to IEC/EN 60529.
  • Compliance with standards IEC/EN 60309-1/2.
Couplers - XCEE
Product selector
Part number Rated current Rated operating voltage Poles Clock Position Frequency IP Protection degree EAN Code
770124 16A 110V 2P+ 4h 50/60Hz IP66/IP67 8014950127344
770126 16A 230V 2P+ 6h 50/60Hz IP66/IP67 8014950127351
770129 16A 400V 2P+ 9h 50/60Hz IP66/IP67 8014950127368
770224 32A 110V 2P+ 4h 50/60Hz IP66/IP67 8014950127450
770226 32A 230V 2P+ 6h 50/60Hz IP66/IP67 8014950127467
770229 32A 400V 2P+ 9h 50/60Hz IP66/IP67 8014950127474
770324 63A 110V 2P+ 4h 50/60Hz IP66/IP67 8014950136308
770326 63A 230V 2P+ 6h 50/60Hz IP66/IP67 8014950136315
770329 63A 400V 2P+ 9h 50/60Hz IP66/IP67 8014950136322
770134 16A 110V 3P+ 4h 50/60Hz IP66/IP67 8014950127375
770139 16A 230V 3P+ 9h 50/60Hz IP66/IP67 8014950127405
770136 16A 400V 3P+ 6h 50/60Hz IP66/IP67 8014950127382
770137 16A 500V 3P+ 7h 50/60Hz IP66/IP67 8014950127399
770234 32A 110V 3P+ 4h 50/60Hz IP66/IP67 8014950127481
770239 32A 230V 3P+ 9h 50/60Hz IP66/IP67 8014950127511
770236 32A 400V 3P+ 6h 50/60Hz IP66/IP67 8014950127498
770237 32A 500V 3P+ 7h 50/60Hz IP66/IP67 8014950127504
770233 32A 380/440V 3P+ 3h 50/60Hz IP66/IP67 8014950130450
770334 63A 110V 3P+ 4h 50/60Hz IP66/IP67 8014950136339
770339 63A 230V 3P+ 9h 50/60Hz IP66/IP67 8014950136360
770336 63A 400V 3P+ 6h 50/60Hz IP66/IP67 8014950136346
770337 63A 500V 3P+ 7h 50/60Hz IP66/IP67 8014950136353
770434 125A 110V 3P+ 4h 50/60Hz IP66/IP67 8014950136414
770439 125A 230V 3P+ 9h 50/60Hz IP66/IP67 8014950136445
770436 125A 400V 3P+ 6h 50/60Hz IP66/IP67 8014950136421
770437 125A 500V 3P+ 7h 50/60Hz IP66/IP67 8014950136438
770144 16A 110V 3P+N+ 4h 50/60Hz IP66/IP67 8014950127412
770149 16A 230V 3P+N+ 9h 50/60Hz IP66/IP67 8014950127443
770146 16A 400V 3P+N+ 6h 50/60Hz IP66/IP67 8014950127429
770147 16A 500V 3P+N+ 7h 50/60Hz IP66/IP67 8014950127436
770244 32A 110V 3P+N+ 4h 50/60Hz IP66/IP67 8014950127528
770249 32A 230V 3P+N+ 9h 50/60Hz IP66/IP67 8014950127559
770246 32A 400V 3P+N+ 6h 50/60Hz IP66/IP67 8014950127535
770247 32A 500V 3P+N+ 7h 50/60Hz IP66/IP67 8014950127542
770344 63A 110V 3P+N+ 4h 50/60Hz IP66/IP67 8014950136377
770349 63A 230V 3P+N+ 9h 50/60Hz IP66/IP67 8014950136407
770346 63A 400V 3P+N+ 6h 50/60Hz IP66/IP67 8014950136384
770347 63A 500V 3P+N+ 7h 50/60Hz IP66/IP67 8014950136391
770444 125A 110V 3P+N+ 4h 50/60Hz IP66/IP67 8014950136452
770449 125A 230V 3P+N+ 9h 50/60Hz IP66/IP67 8014950136483
770446 125A 400V 3P+N+ 6h 50/60Hz IP66/IP67 8014950136469
770447 125A 500V 3P+N+ 7h 50/60Hz IP66/IP67 8014950136476
770426 125A 230V 2P+ 6h 50/60Hz IP66/IP67 8014950206643
