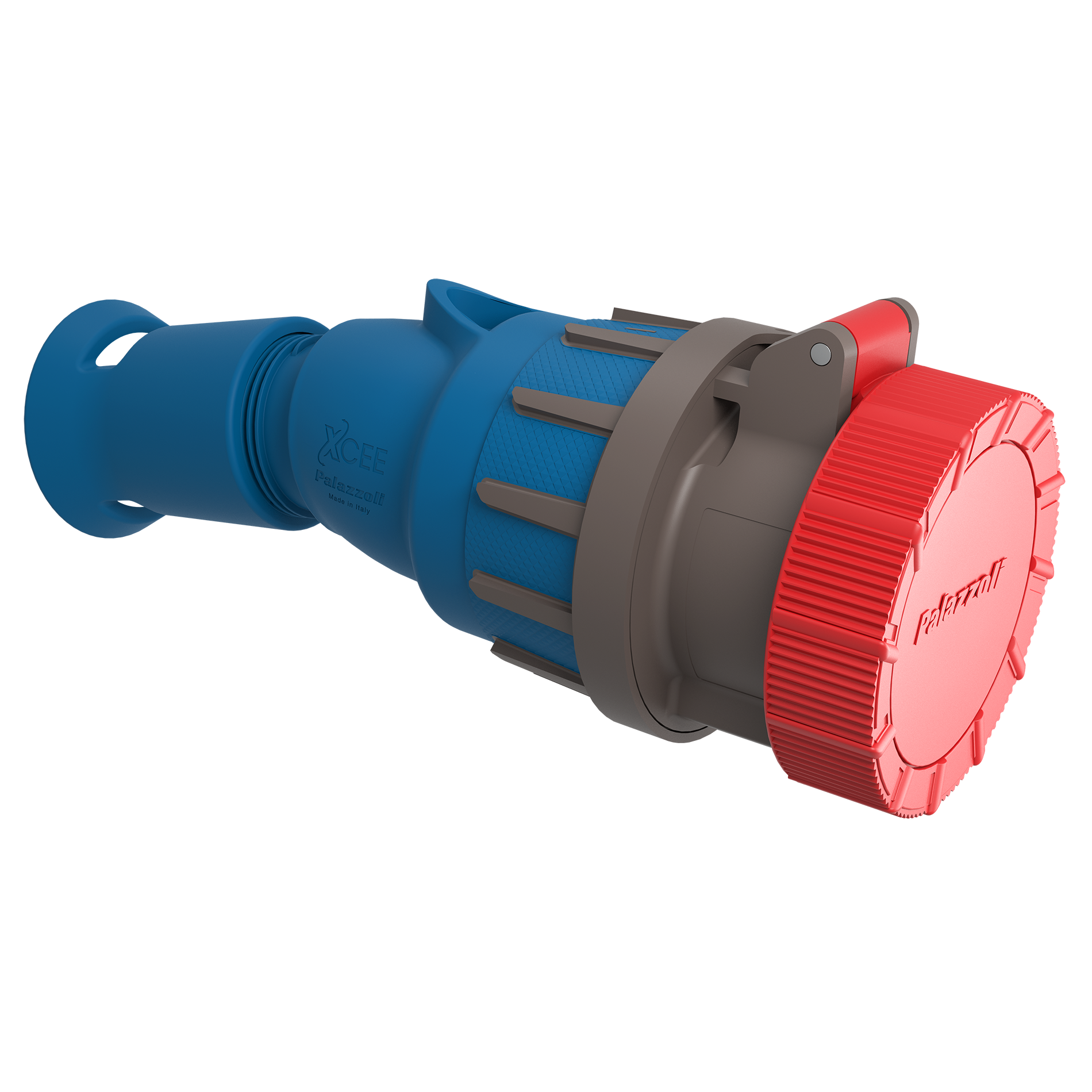

Couplers - ROTOR XCEE

  • Safety performance as per IEC 60309 industrial socket-outlet.
  • Designed to allow for padlocking, either in a stand-alone fashion or connected to sockets.
  • Advanced comfort grip with an anti-slip coating (Even with gloves).
  • Rated current from 16A up to 125A.
  • Rated Voltage option from 110V up to 500V.
  • IP66/IP67/IP68/IP69 protection rating in accordance to IEC/EN 60529.
  • Compliance with standards IEC/EN 60309-1/2.
Part number Rated current Rated operating voltage Poles Clock Position Frequency Protection degree EAN Code
410124 16A 110V 2P+ 4h 50/60Hz IP66/IP67 8014950120444
410126 16A 230V 2P+ 6h 50/60Hz IP66/IP67 8014950120451
410129 16A 400V 2P+ 9h 50/60Hz IP66/IP67 8014950125258
410224 32A 110V 2P+ 4h 50/60Hz IP66/IP67 8014950120550
410226 32A 230V 2P+ 6h 50/60Hz IP66/IP67 8014950125340
410229 32A 400V 2P+ 9h 50/60Hz IP66/IP67 8014950125357
410134 16A 110V 3P+ 4h 50/60Hz IP66/IP67 8014950125265
410139 16A 230V 3P+ 9h 50/60Hz IP66/IP67 8014950125296
410136 16A 400V 3P+ 6h 50/60Hz IP66/IP67 8014950125272
410137 16A 500V 3P+ 7h 50/60Hz IP66/IP67 8014950125289
410234 32A 110V 3P+ 4h 50/60Hz IP66/IP67 8014950125364
410239 32A 230V 3P+ 9h 50/60Hz IP66/IP67 8014950125395
410236 32A 400V 3P+ 6h 50/60Hz IP66/IP67 8014950125371
410237 32A 500V 3P+ 7h 50/60Hz IP66/IP67 8014950125388
410233 32A 380/440V 3P+ 3h 50/60Hz IP66/IP67 8014950130429
410144 16A 110V 3P+N+ 4h 50/60Hz IP66/IP67 8014950125302
410149 16A 230V 3P+N+ 9h 50/60Hz IP66/IP67 8014950125333
410146 16A 400V 3P+N+ 6h 50/60Hz IP66/IP67 8014950125319
410147 16A 500V 3P+N+ 7h 50/60Hz IP66/IP67 8014950125326
410244 32A 110V 3P+N+ 4h 50/60Hz IP66/IP67 8014950125401
410249 32A 230V 3P+N+ 9h 50/60Hz IP66/IP67 8014950125432
410246 32A 400V 3P+N+ 6h 50/60Hz IP66/IP67 8014950125418
410247 32A 500V 3P+N+ 7h 50/60Hz IP66/IP67 8014950125425
