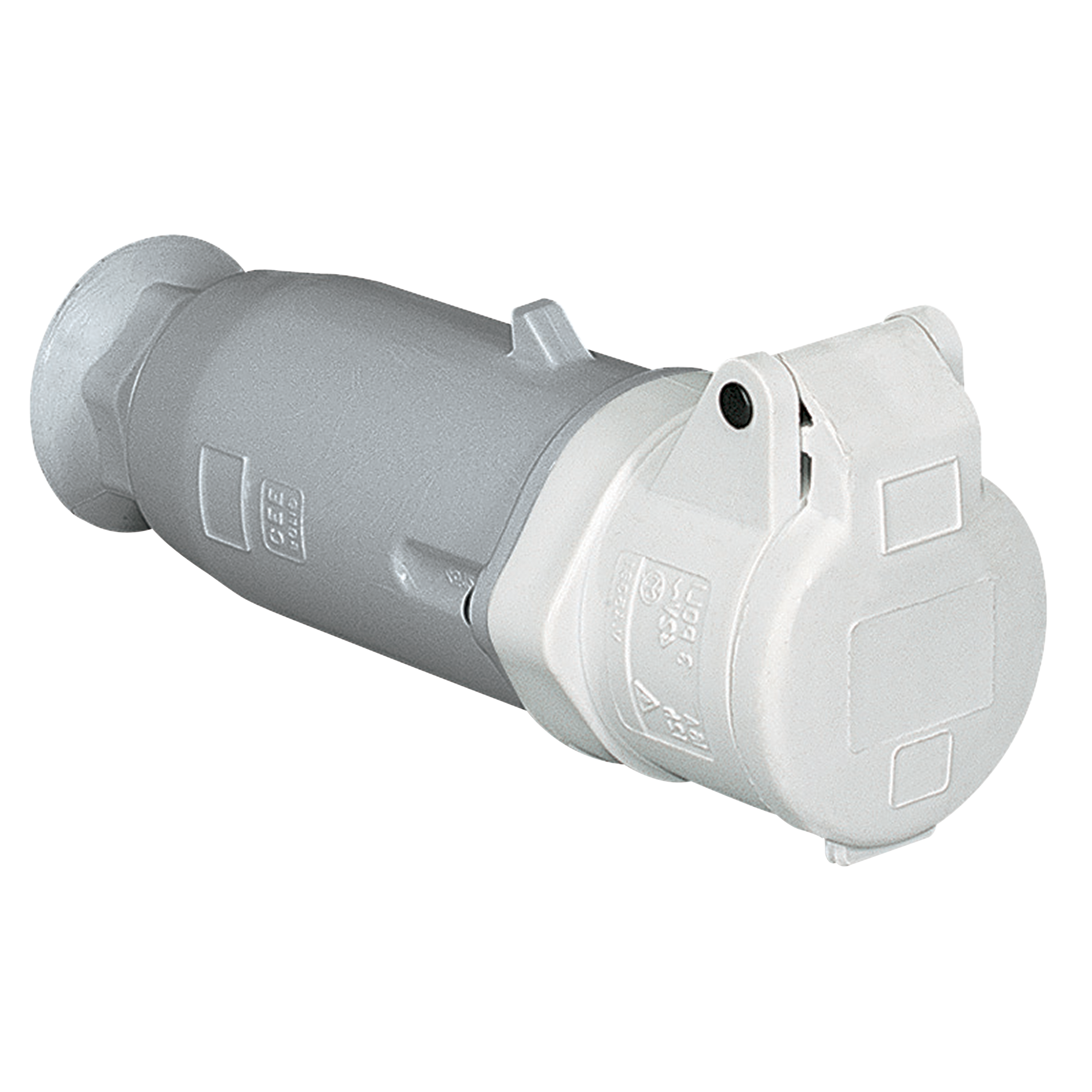

Straight Mobile Connector IP44

  • Designed for ease of assembly and wiring.
  • Rated current from 16A up to 32A.
  • Selection of extra-low and high voltage from 24V up to 400V.
  • IK08 as per IEC/EN 62262.
  • Thermoplastic body.
Straight Mobile Connector IP44
Product selector
Part number Rated current Rated operating voltage Poles Clock Position Frequency IP Protection degree EAN Code
720124 16A 110V 2P+ 4h 50/60Hz IP44 8014950000869
473002 16A 24V 2P N/A 50/60Hz IP44 8014950408115
720134 16A 110V 3P+ 4h 50/60Hz IP44 8014950000944
473062 16A 24V 3P N/A 50/60Hz IP44 8014950408313
720144 16A 110V 3P+N+ 4h 50/60Hz IP44 8014950001026
473102 16A 42V 2P 12h 50/60Hz IP44 8014950408351
720126 16A 230V 2P+ 6h 50/60Hz IP44 8014950000876
473112 16A 42V 3P 12h 50/60Hz IP44 8014950408399
720139 16A 230V 3P+ 9h 50/60Hz IP44 8014950000982
473012 16A 24-42V 2P 4h 100-200Hz IP44 8014950408153
720149 16A 230V 3P+N+ 9h 50/60Hz IP44 8014950001064
473122 16A 24-42V 3P 4h 100-200Hz IP44 8014950408436
720129 16A 400V 2P+ 9h 50/60Hz IP44 8014950000906
473602 16A 24-42V 2P 10h CC IP44 8014950409044
720136 16A 400V 3P+ 6h 50/60Hz IP44 8014950000968
473005 32A 24V 2P N/A 50/60Hz IP44 8014950408139
720146 16A 400V 3P+N+ 6h 50/60Hz IP44 8014950001040
473065 32A 24V 3P N/A 50/60Hz IP44 8014950408337
473066 32A 24V 3P N/A 50/60Hz IP67 8014950408344
720224 32A 110V 2P+ 4h 50/60Hz IP44 8014950001637
473105 32A 42V 2P 12h 50/60Hz IP44 8014950408375
720234 32A 110V 3P+ 4h 50/60Hz IP44 8014950001729
473115 32A 42V 3P 12h 50/60Hz IP44 8014950408412
720244 32A 110V 3P+N+ 4h 50/60Hz IP44 8014950001811
473015 32A 24-42V 2P 4h 100-200Hz IP44 8014950408177
720226 32A 230V 2P+ 6h 50/60Hz IP44 8014950001644
473125 32A 24-42V 3P 4h 100-200Hz IP44 8014950408450
720239 32A 230V 3P+ 9h 50/60Hz IP44 8014950001767
473605 32A 24-42V 2P 10h CC IP44 8014950409068
720249 32A 230V 3P+N+ 9h 50/60Hz IP44 8014950001859
720229 32A 400V 2P+ 9h 50/60Hz IP44 8014950001675
PM32/2500FPB 32A 400V 3P+ 6h 50/60Hz IP44 8014950031634
720246 32A 400V 3P+N+ 6h 50/60Hz IP44 8014950001835
