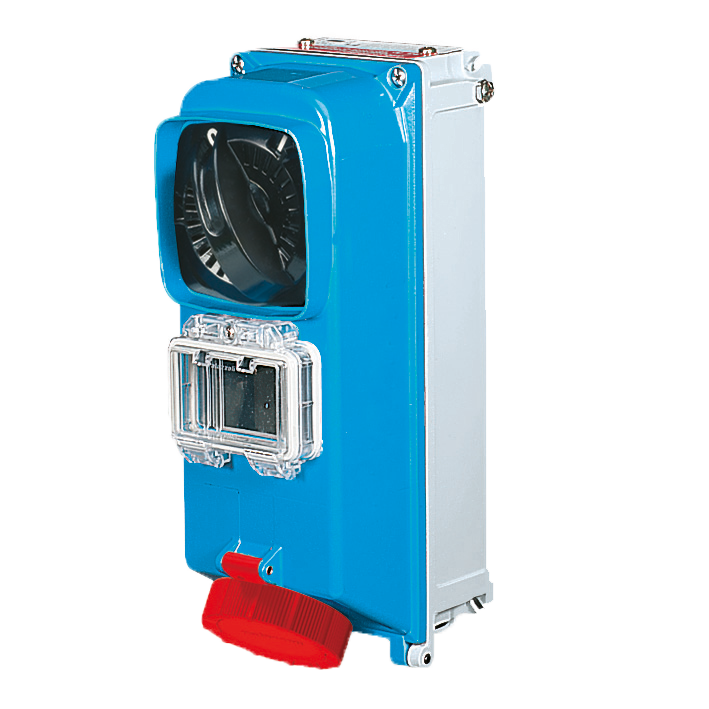

Vertical Switched Interlocked Sockets With RCDs - Metal Clad

  • IP67 Ingress Protection Rating (Watertight)
  • Alupres Metal Clad
  • Supplied with flat closing flange (top & bottom)
Product selector
Part number Rated current Rated operating voltage Poles IP Protection degree EAN Code
472623RCD 16A 230V 2P+ IP67 8014950055432
472624RCD 32A 230V 2P+ IP67 8014950055449
472027RCD 63A 230V 2P+ IP67 8014950055456
472733RCD 16A 400V~ 3P+ IP67 8014950055463
472734RCD 32A 400V~ 3P+ IP67 8014950055470
472137RCD 63A 400V~ 3P+ IP67 8014950055487
472843RCD 16A 400V~ 3P+N+ IP67 8014950055494
472844RCD 32A 400V~ 3P+N+ IP67 8014950055500
472647RCD 63A 400V~ 3P+N+ IP67 8014950055517
PDRCD125/408SINFPB 125A 400V 3P+N+ IP65 8014950055524
