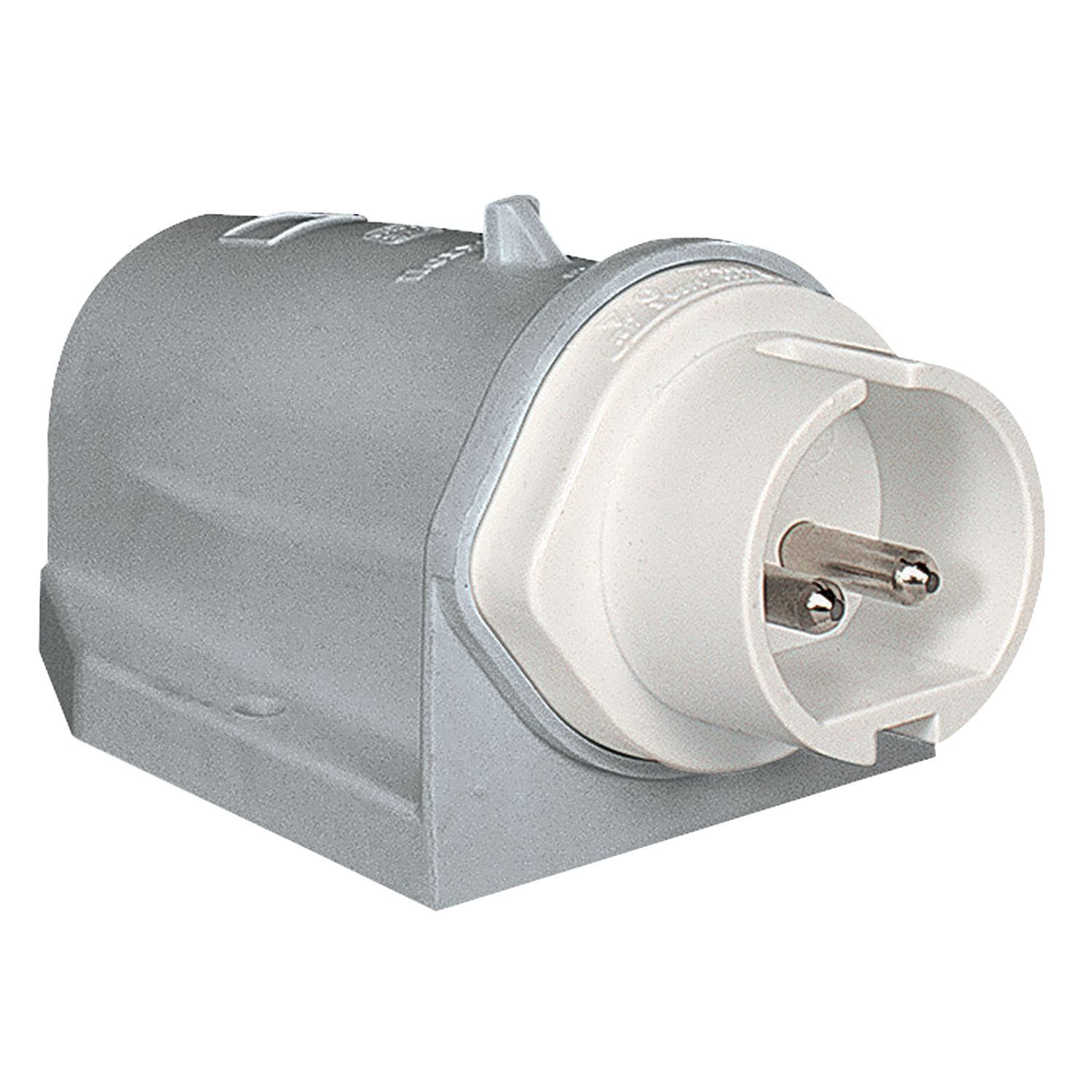

90° Angled Wall Mounted Plugs-IP44

  • Compliance with standards IEC/EN 60309-1/2.
  • Rated current from 16A up to 32A.
  • For extra-low voltage of 24-42V.
  • IK08 as per IEC/EN 62262.
  • Reinforced thermoplastic material for heavy-duty application.
Part number Rated current Rated operating voltage Poles Clock Position Frequency Protection degree EAN Code
476002 16A 24V 2P N/A 50/60Hz IP44 8014950410767
476012 16A 24V 3P N/A 50/60Hz IP44 8014950410781
476102 16A 42V 2P 12h 50/60Hz IP44 8014950410880
476112 16A 42V 3P 12h 50/60Hz IP44 8014950410903
476042 16A 24-42V 2P 4h 100-200Hz IP44 8014950410804
476142 16A 24-42V 3P 4h 100-200Hz IP44 8014950410927
476602 16A 24-42V 2P 10h CC IP44 8014950411726
476005 32A 24V 2P N/A 50/60Hz IP44 8014950410774
476015 32A 24V 3P N/A 50/60Hz IP44 8014950410798
476105 32A 42V 2P 12h 50/60Hz IP44 8014950410897
476115 32A 42V 3P 12h 50/60Hz IP44 8014950410910
476045 32A 24-42V 2P 4h 100-200Hz IP44 8014950410811
476145 32A 24-42V 3P 4h 100-200Hz IP44 8014950410934
476605 32A 24-42V 2P 10h CC IP44 8014950411733
