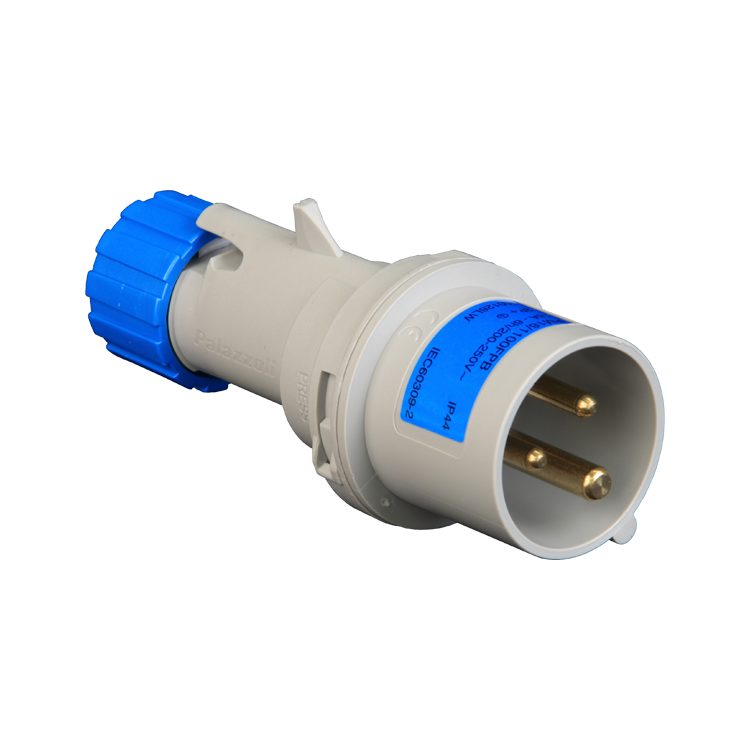

Straight Plug IP44

  • Designed for ease of assembly and wiring.
  • Twist grip cable gland locking system.
  • Rated current up to 32A.
  • IK08 rating as per IEC/EN 62262.
  • Thermoplastic grip material.
Part number Rated current Rated operating voltage Poles Clock Position Frequency Protection degree EAN Code
PM16/1000FPB 16A 110V 2P+ 4h 50/60Hz IP44 8014950031405
PM16/1100FPB 16A 230V 2P+ 6h 50/60Hz IP44 8014950031412
PM16/1500FPB 16A 400V 3P+ 6h 50/60Hz IP44 8014950031436
PM16/1800FPB 16A 400V 3P+N+ 6h 50/60Hz IP44 8014950031450
PM32/1000FPB 32A 110V 2P+ 4h 50/60Hz IP44 8014950031467
PM32/1100FPB 32A 230V 2P+ 6h 50/60Hz IP44 8014950031474
PM32/1500FPB 32A 400V 3P+ 6h 50/60Hz IP44 8014950031481
PM32/1800FPB 32A 400V 3P+N+ 6h 50/60Hz IP44 8014950031498
700134 16A 110V 3P+ 4h 50/60Hz IP44 8014950000708
700144 16A 110V 3P+N+ 4h 50/60Hz IP44 8014950000784
700139 16A 230V 3P+ 9h 50/60Hz IP44 8014950000746
700149 16A 230V 3P+N+ 9h 50/60Hz IP44 8014950000821
700129 16A 400V 2P+ 9h 50/60Hz IP44 8014950000661
700234 32A 110V 3P+ 4h 50/60Hz IP44 8014950001446
700244 32A 110V 3P+N+ 4h 50/60Hz IP44 8014950001538
700239 32A 230V 3P+ 9h 50/60Hz IP44 8014950001484
700249 32A 230V 3P+N+ 9h 50/60Hz IP44 8014950001576
700229 32A 400V 2P+ 9h 50/60Hz IP44 8014950001392
