FIT55

FIT 55 series is the excellent solution for LED street lighting applications: roads, intersections, roundabouts, highways, junctions and parking lots.

FIT 55 products in their standard configurations are available from 34W to 209W with luminous fluxes up to 30,000lm.

FIT 55 LED street lighting products offer the possibility of having five different street optics inside, which can be modified by adjusting a screw placed inside the street lighting.

FIT 55 is the only fixture that, thanks to the patented FOS (FIT 55 Optical System) solution and by moving the aluminium reflectors, allows the optics to be adjusted in up to 5 positions, even when the product is already installed, to modify the front and side light emission.

The LED street lights are made of low copper content aluminium alloy for maximum resistance even in hostile environments. The electronic components are strictly selected, with X-ray checks of the welding on LEDs.

The body is in die-cast aluminium EN 46100 with anti-corrosion treatment for maximum resistance in harsh environments.

Product selector
Technical support
Technical support
Corrosion Resistant
Corrosion Resistant
Risk group zero
Risk group zero
Energy saving
Energy saving
Product selector

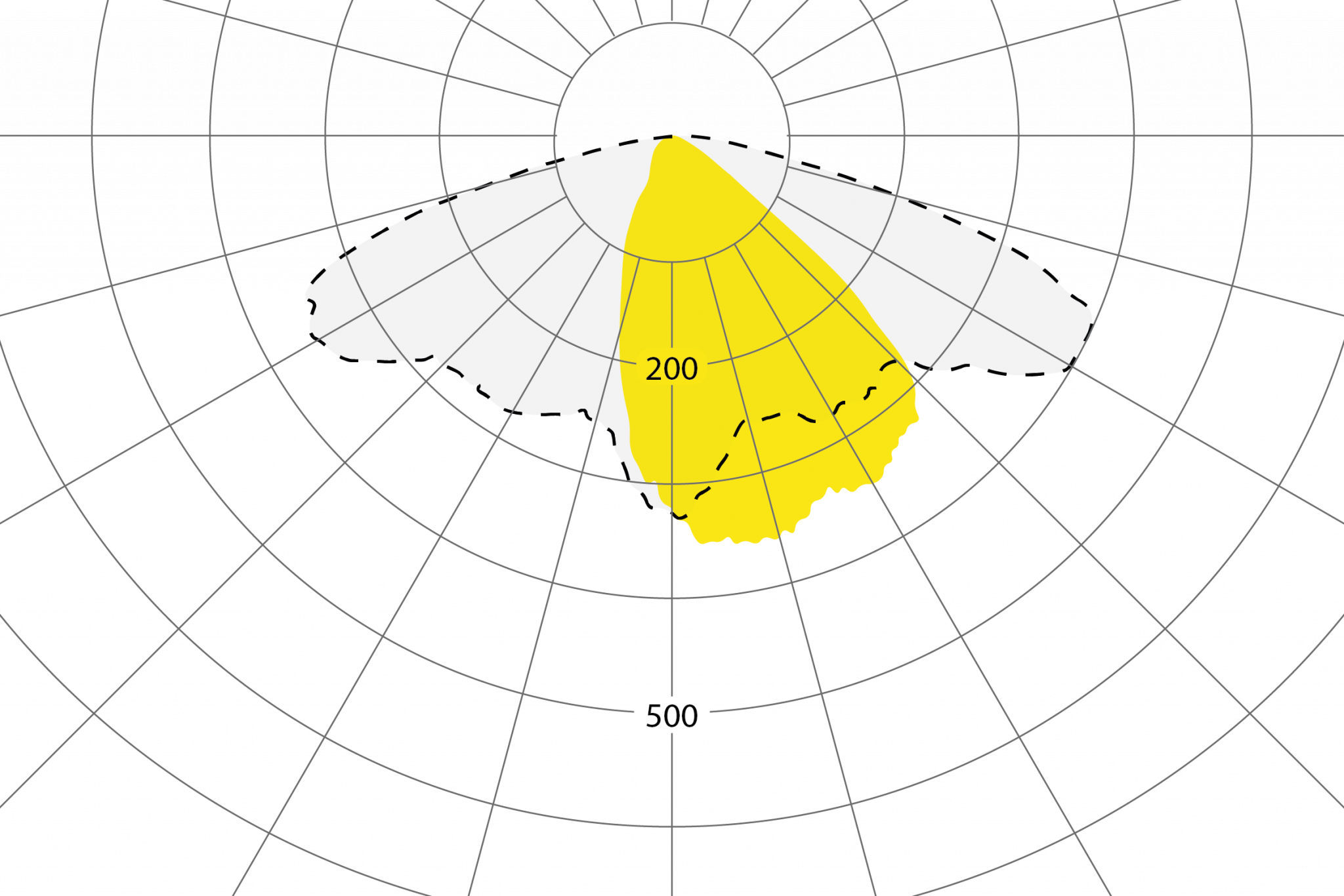

STR-AM roadway wide beam optics - FIT55 Size S

Included: adjustable pole mount

-5° to +20° for pole-top application;

-20° to +5° for wall mounting with projecting arm.

Suitable for pole diameters from 42mm to 76mm

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
834110MV 17W 2822lm 166lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834120MV 34W 4986lm 147lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834130MV 54W 7244lm 134lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834110 17W 2822lm 166lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834120 34W 4986lm 147lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834130 54W 7244lm 134lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834210MV 37W 5755lm 156lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834220MV 69W 9972lm 145lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834230MV 86W 12100lm 141lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834210 37W 5755lm 156lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834220 69W 9972lm 145lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834230 86W 12100lm 141lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
854111MV 17W 2822lm 166lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854110MV 17W 2822lm 166lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854120MV 34W 4986lm 147lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854130MV 54W 7244lm 134lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854131MV 54W 7244lm 134lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854210MV 37W 5755lm 156lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854211MV 37W 5755lm 156lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834511
854220MV 69W 9972lm 145lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854230MV 86W 12100lm 141lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
833120MV 34W 4452lm 131lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833130MV 53W 6470lm 122lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833220MV 69W 9373lm 136lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833230MV 86W 11370lm 132lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833531MV 173.60W 23683lm 136lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A

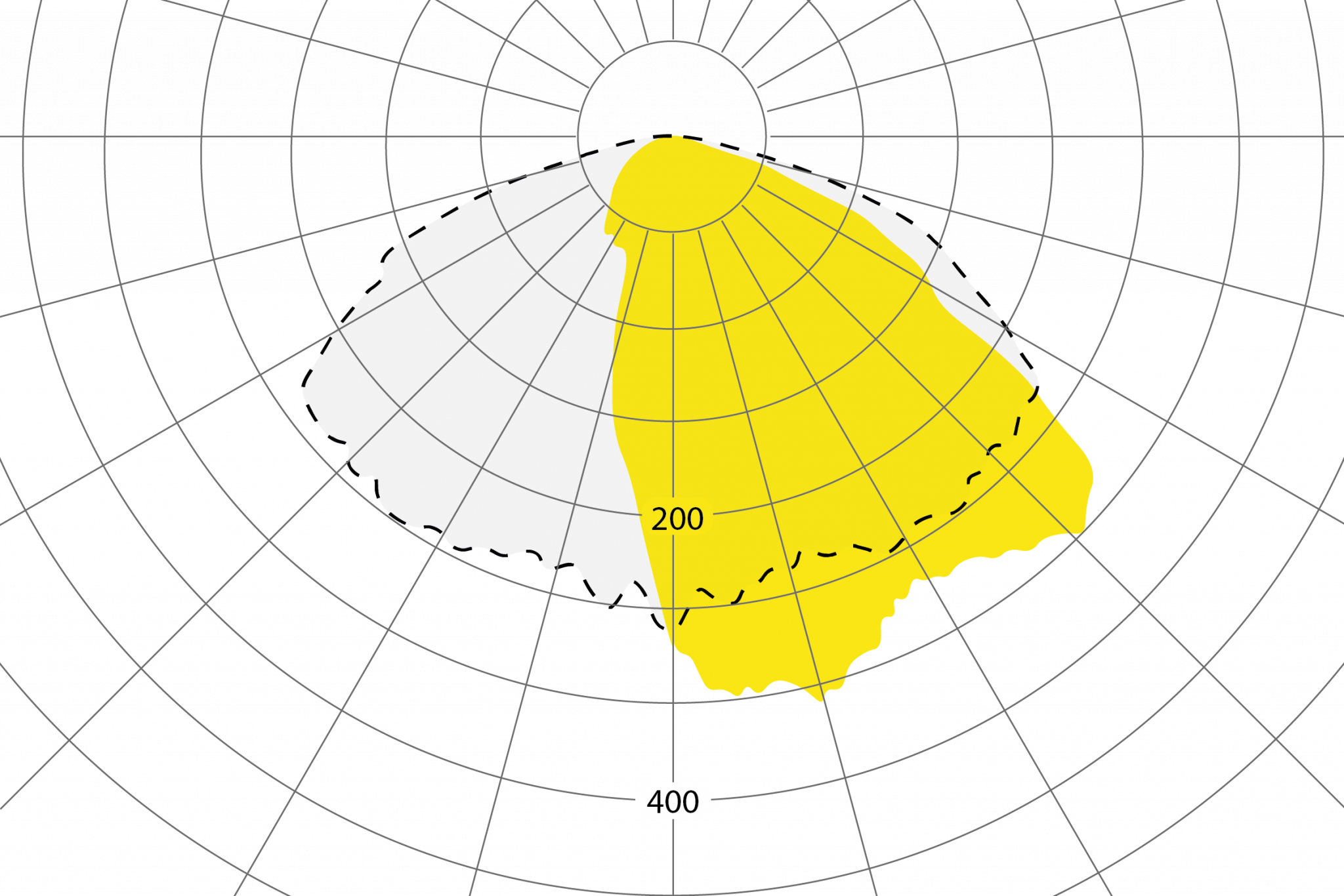

STR-ST roadway narrow beam optics - FIT55 Size S

Included: adjustable pole mount

-5° to +20° for pole-top application;

-20° to +5° for wall mounting with projecting arm.

Suitable for pole diameters from 42mm to 76mm

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
834111MV 17W 2822lm 166lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834121MV 34W 4986lm 147lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834131MV 54W 7244lm 134lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834111 17W 2822lm 166lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834121 34W 4986lm 147lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834131 54W 7244lm 134lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834211MV 37W 5755lm 156lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834221MV 69W 9972lm 145lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834231MV 86W 12100lm 141lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834211 37W 5755lm 156lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834221 69W 9972lm 145lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834231 86W 12100lm 141lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
854121MV 34W 4986lm 147lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854221MV 69W 9972lm 145lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854231MV 86W 12100lm 141lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
833121MV 34W 4452lm 131lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833131MV 53W 6470lm 122lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833221MV 69W 9373lm 136lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833231MV 86W 11370lm 132lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A

STR-AM ROADWAY WIDE BEAM OPTICS - FIT55 SIZE M

Included: adjustable pole mount

-5° to +20° for pole-top application;

-20° to +5° for wall mounting with projecting arm.

Suitable for pole diameters from 42mm to 76mm

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
834310MV 54W 8467lm 157lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834320MV 103.80W 14958lm 144lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834330MV 145W 20050lm 138lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834310 54W 8467lm 157lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834320 103.80W 14958lm 144lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834330 145W 20050lm 138lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834410MV 72W 11289lm 157lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834410MV 72W 11289lm 157lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834420MV 139W 19944lm 143lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834430MV 176.50W 24460lm 139lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834410 72W 11289lm 157lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834420 139W 19944lm 143lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834430 176.50W 24460lm 139lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834510MV 91.50W 14111lm 154lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834520MV 128W 19328lm 151lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834530MV 173.60W 24930lm 144lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834510 91.50W 14111lm 154lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834520 128W 19328lm 151lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834530 173.60W 24930lm 144lm/W Street wide AM Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834610MV 101W 15554lm 154lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834620MV 153.30W 23707lm 155lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834630MV 208.50W 29916lm 143lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854310MV 54W 8467lm 157lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854320MV 103.80W 14958lm 144lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854330MV 145W 20050lm 138lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854410MV 72W 11289lm 157lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854420MV 139W 19944lm 143lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854430MV 176.50W 24460lm 139lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854510MV 91.50W 14111lm 154lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854520MV 128W 19328lm 151lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854530MV 173.60W 24930lm 144lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854610MV 101W 15554lm 154lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854620MV 153.30W 23707lm 155lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854630MV 208.50W 29916lm 143lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
833320MV 104W 18850lm 130lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833330MV 145W 20050lm 138lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833420MV 139W 18940lm 132lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833430MV 176.50W 23237lm 132lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833520MV 128W 18768lm 147lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833530MV 173.60W 23683lm 136lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833620MV 153W 22521lm 147lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833630MV 208.50W 28420lm 136lm/W Street wide AM Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A

STR-ST roadway narrow beam optics - FIT55 Size M

Included: adjustable pole mount

-5° to +20° for pole-top application;

-20° to +5° for wall mounting with projecting arm.

Suitable for pole diameters from 42mm to 76mm

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
834311MV 54W 8467lm 157lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834321MV 103.80W 14958lm 144lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834331MV 145W 20050lm 138lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834311 54W 8467lm 157lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834321 103.80W 14958lm 144lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834331 145W 20050lm 138lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834411MV 72W 11289lm 157lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834421MV 139W 19944lm 143lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834431MV 176.50W 24460lm 139lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834411 72W 11289lm 157lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834421 139W 19944lm 143lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834431 176.50W 24460lm 139lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834511MV 91.50W 14111lm 154lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834521MV 128W 19328lm 151lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834531MV 173.60W 24930lm 144lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834521 128W 19328lm 151lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834531 173.60W 24930lm 144lm/W Street narrow ST Extraclear tempered glass 4 mm Standard on-off 4000K N/A
834611MV 101W 15554lm 154lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834621MV 153.30W 23707lm 155lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
834631MV 208.50W 29916lm 143lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854311MV 54W 8467lm 157lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854321MV 103.80W 14958lm 144lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854331MV 145W 20050lm 138lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854411MV 72W 11289lm 157lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854421MV 139W 19944lm 143lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854431MV 176.50W 24460lm 139lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854511MV 91.50W 14111lm 154lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854521MV 128W 19328lm 151lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854531MV 173.60W 24930lm 144lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854611MV 101W 15554lm 154lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854621MV 153.30W 23707lm 155lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
854631MV 208.50W 29916lm 143lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 4000K N/A
833321MV 104W 18850lm 130lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833331MV 145W 18850lm 130lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833421MV 139W 18940lm 136lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833431MV 176.50W 23237lm 132lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833521MV 128W 23683lm 136lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833621MV 153W 22521lm 147lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A
833631MV 208.50W 28420lm 136lm/W Street narrow ST Extraclear tempered glass 4 mm Midnight bilevel 3000K N/A

Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.

Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.

Logo Lumicon
Logo Lia
Warranty
CESI
Certificate CESI
RINA
Certificate RINA
ATEX
Certificate ATEX
IECex
Certificate IECex
NEMKO
Certificate NEMKO
QL
Certificate QL
LDT File Data Sheet
