RINO

RINO is the new series of watertight lighting fixtures in AISI 304 stainless steel and painted galvanized steel. They are suitable for applications where greater resistance to environmental aggression is required. For use in industrial, commercial and food environments.The body is made of a single piece of AISI 304 stainless steel or galvanized steel without welded joints, able to withstand harsh environmental conditions. The diffuser in tempered glass or UV stabilized polycarbonate is attached to the body, thanks to a system of AISI 304 stainless steel fastenings. The IP66 rating is guaranteed by a reinforced gasket in anti-ageing elastomer. The light fixture is equipped with M8 threaded eyebolts that are screwed to the body with no need to open the luminaire. They enable mounting the luminaire to chains, ropes and lighting busbars. There are 5 versions available: On/Off, DALI, Emergency 3h, HT +55 °C and various mounting accessories.

Download brochure
IK09
IK09
IP66
IP66
Technical support
Technical support
Corrosion Resistant
Corrosion Resistant
Flicker free
Flicker free
Energy saving
Energy saving

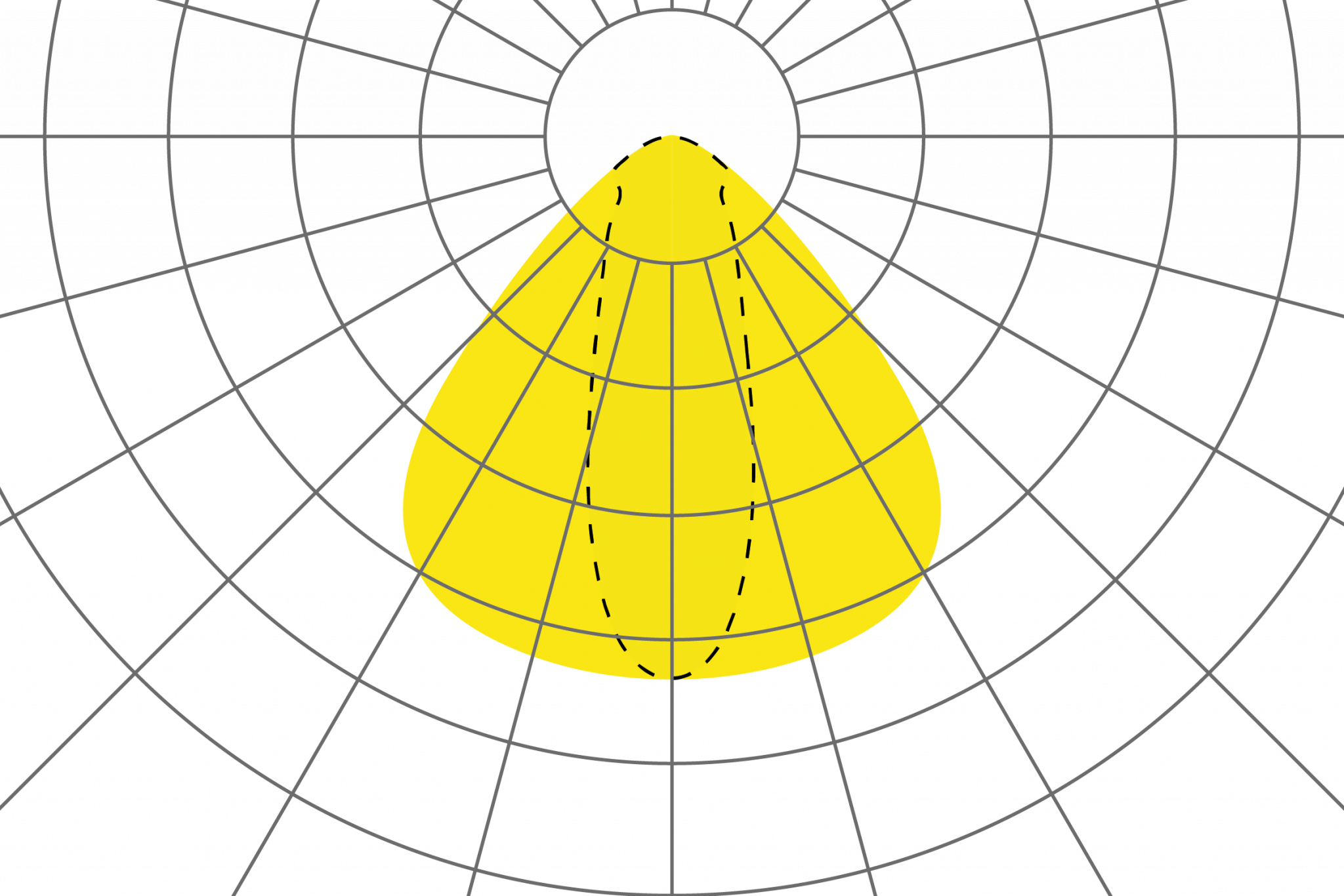

110° symmetrical optics - RINO LED 690mm

Included: pair of eyebolts in AISI 304 Stainless Steel for pendant mounting.

Power supply with quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
822182 26W 3692lm 142lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
822282 40W 5640lm 141lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
842182 26W 3692lm 142lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
842282 40W 5640lm 141lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
842180 26W 3692lm 142lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 1h recharge 24h
842280 43W 5640lm 141lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 1h recharge 24h

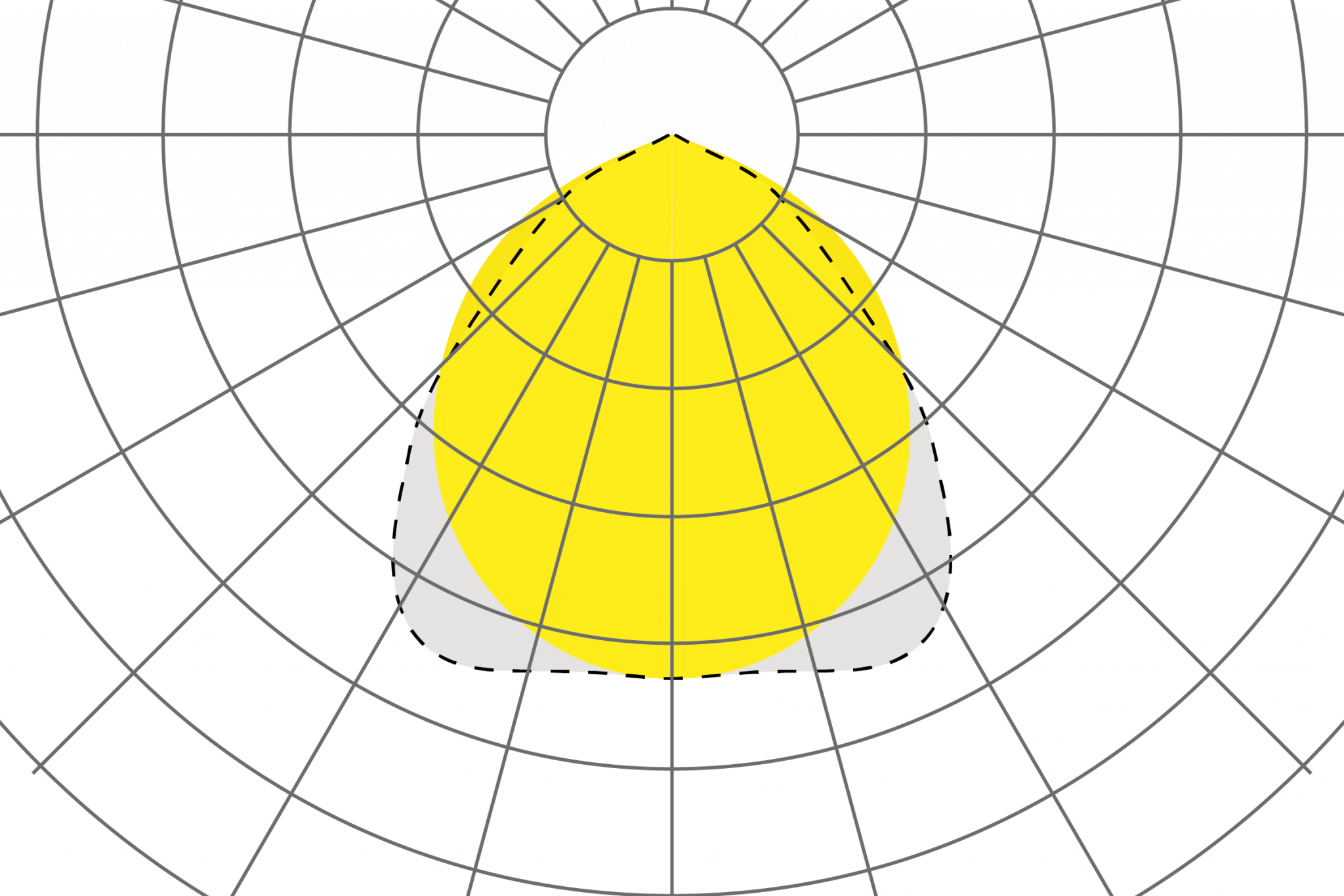

88° SYMMETRICAL OPTICS - RINO LED 690MM

Included: pair of eyebolts in AISI 304 Stainless Steel for pendant mounting.

Power supply with quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
821182 26W 3562lm 137lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
821282 40W 5400lm 135lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
826182 26W 3562lm 137lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
826282 40W 5400lm 135lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
821180 28W 3562lm 137lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 1h recharge 24h
821280 43W 5400lm 135lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 1h recharge 24h
821183 28W 3562lm 137lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 3h recharge 24h
821283 43W 5400lm 135lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 3h recharge 24h
841182
841282 40W 5400lm 135lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
846182 26W 3562lm 137lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
846282 40W 5400lm 135lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A

110° SYMMETRICAL OPTICS - RINO LED 1300MM

Included: pair of eyebolts in AISI 304 Stainless Steel for pendant mounting.

Power supply with quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
822382 52W 7384lm 142lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
822482 63W 8946lm 142lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
822582 75W 10575lm 141lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
842382 52W 7384lm 142lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
842482 63W 8946lm 142lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
842582 75W 10575lm 141lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
842380 52W 7384lm 142lm/W Symmetrical wide 110° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 1h recharge 24h

88° SYMMETRICAL OPTICS - RINO LED 1300MM

Included: pair of eyebolts in AISI 304 Stainless Steel for pendant mounting.

Power supply with quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
821382 52W 7072lm 136lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
821482 63W 8631lm 137lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
821582 75W 9900lm 132lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
826382 52W 7072lm 136lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
826482 63W 8631lm 137lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
826582 75W 9900lm 132lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
821382DA 52W 7072lm 136lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
821482DA 55W 7518lm 136.70lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
821582DA 71W 9428lm 132lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
826382DA 52W 7072lm 136lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI
826482DA 55W 7518lm 136.70lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI
826582DA 71W 9428lm 132lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI
841382 52W 7072lm 136lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
841482 63W 8631lm 137lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
841582 75W 9900lm 132lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
846382 52W 7072lm 136lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
846482 63W 8631lm 137lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
846582 75W 9900lm 132lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
821380 52W 7072lm 136lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 1h recharge 24h
821480 67W 8631lm 137lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 1h recharge 24h
821383 52W 7072lm 136lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 3h recharge 24h
821483 67W 8631lm 137lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 3h recharge 24h
821583 79W 9900lm 132lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Internal battery duration 3h recharge 24h
826380 52W 7072lm 136lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K Internal battery duration 1h recharge 24h
826480 67W 8631lm 137lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K Internal battery duration 1h recharge 24h
826580 79W 9900lm 132lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K Internal battery duration 1h recharge 24h
826383 52W 7072lm 136lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K Internal battery duration 3h recharge 24h
826483 67W 8631lm 137lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K Internal battery duration 3h recharge 24h
826583 79W 9900lm 132lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K Internal battery duration 3h recharge 24h
821382HT 33W 4700lm 142.40lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
821482HT 45W 6404lm 142.30lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
821582HT 54W 7600lm 140.70lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
826382HT 33W 4700lm 142.40lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
826482HT 45W 6404lm 142.30lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A
826582HT 54W 7600lm 140.70lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate Standard on-off 4000K N/A

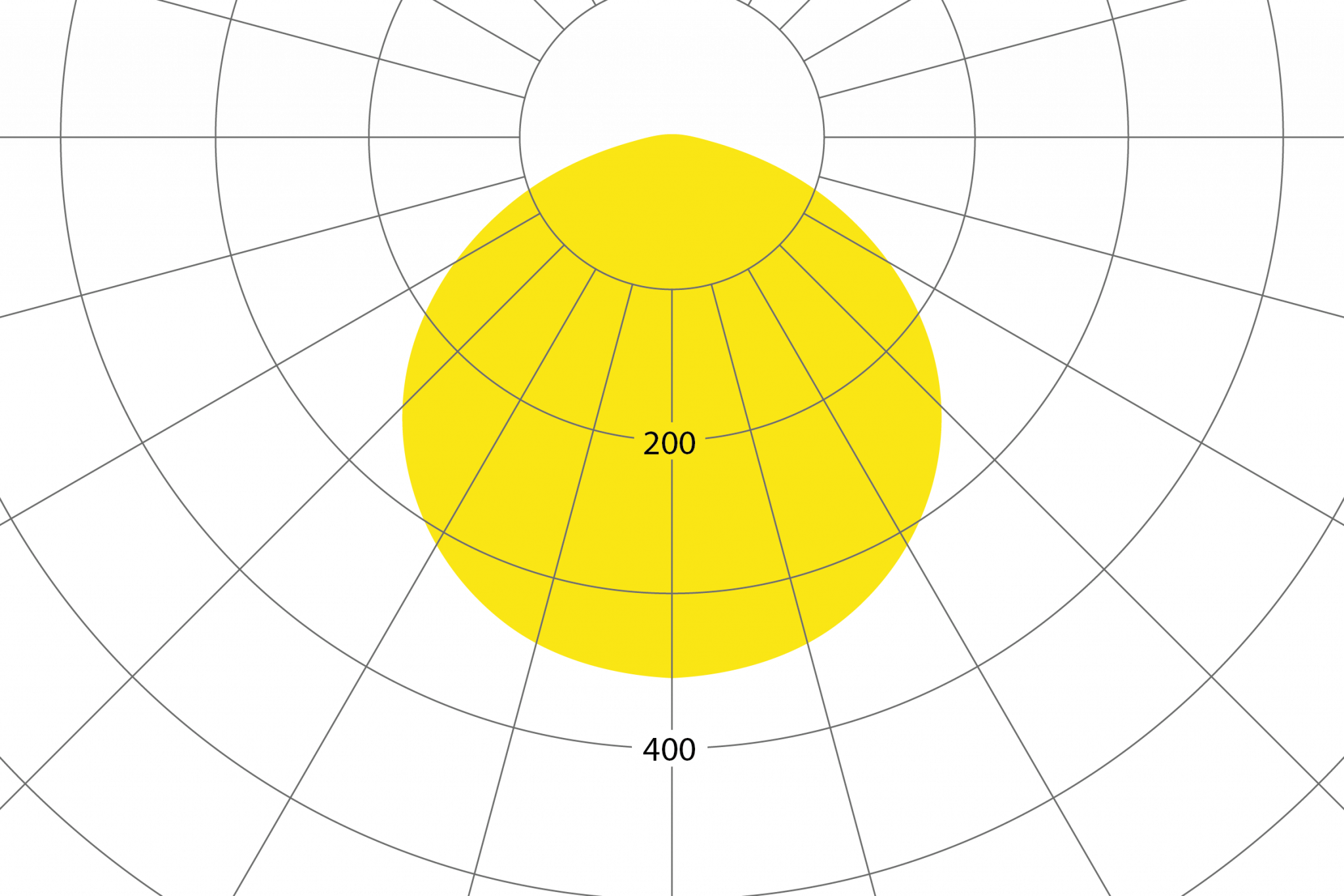

Narrow beam optic 30° X 90° - RINO LED 1300mm

Included: pair of eyebolts in AISI 304 Stainless Steel for pendant mounting.

Power supply with quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
820382 52W 6500lm 125lm/W Simmetrica concentrante comfort 30°X90° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
820482 63W 8001lm 127lm/W Simmetrica concentrante comfort 30°X90° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
820582 75W 9375lm 125lm/W Simmetrica concentrante comfort 30°X90° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
825382 52W 6500lm 125lm/W Simmetrica concentrante comfort 30°X90° UV stabilized polycarbonate Standard on-off 4000K N/A
825482 63W 8001lm 127lm/W Simmetrica concentrante comfort 30°X90° UV stabilized polycarbonate Standard on-off 4000K N/A
825582 75W 9375lm 125lm/W Simmetrica concentrante comfort 30°X90° UV stabilized polycarbonate Standard on-off 4000K N/A
840382 52W 6500lm 125lm/W Simmetrica concentrante comfort 30°X90° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
840482 63W 8001lm 127lm/W Simmetrica concentrante comfort 30°X90° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
840582 75W 9375lm 125lm/W Simmetrica concentrante comfort 30°X90° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
845382
845482 63W 8001lm 127lm/W Simmetrica concentrante comfort 30°X90° UV stabilized polycarbonate Standard on-off 4000K N/A
845582 75W 9375lm 125lm/W Simmetrica concentrante comfort 30°X90° UV stabilized polycarbonate Standard on-off 4000K N/A

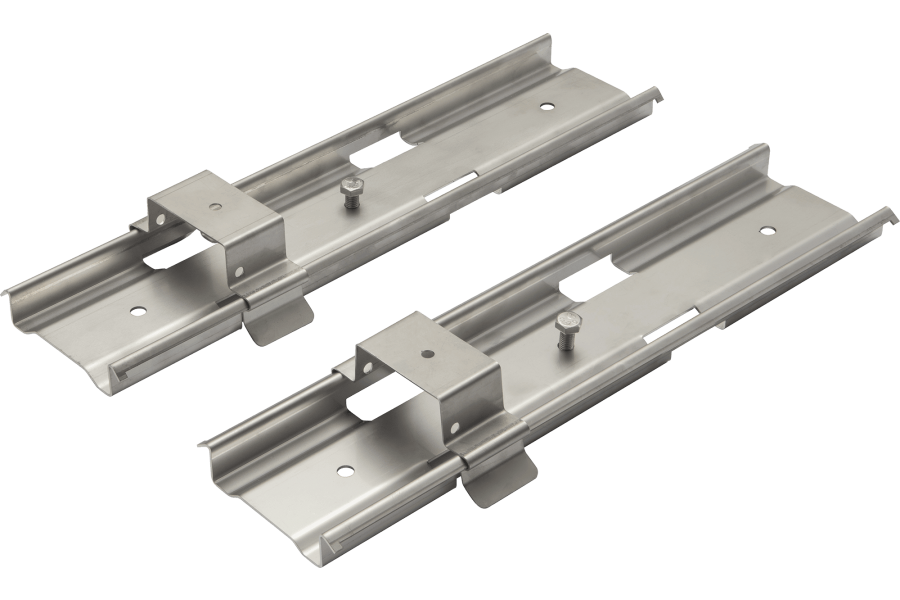

RINO ADAPTING KIT FOR CEILING MOUNTING

ADAPTING KIT FOR CEILING MOUNTING
Part numbers Manufacturing material Description
820018 Stainless steel AISI 304 KIT FOR RAPID CEILING MOUNTING

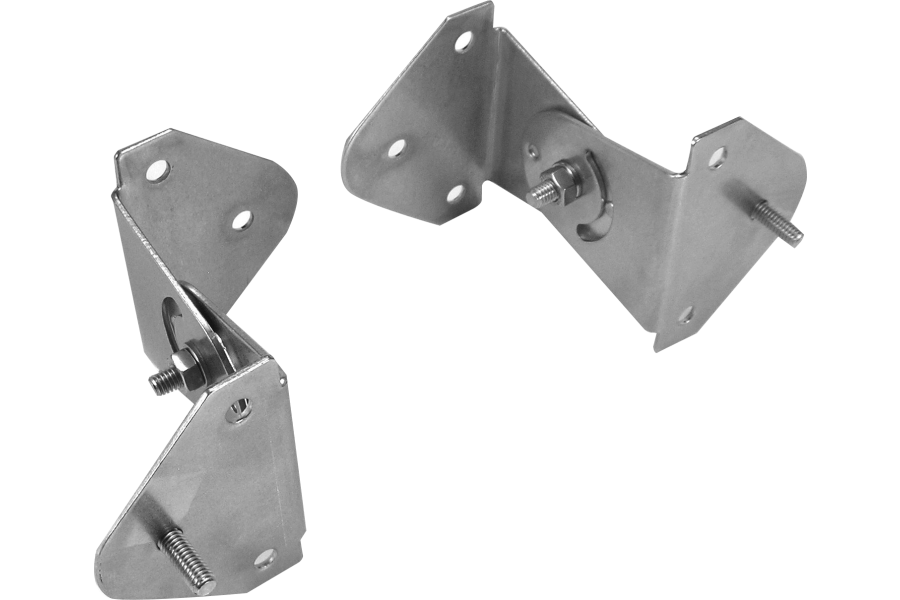

RINO PAIR OF ADJUSTABLE SUPPORTS FOR WALL OR CEILING MOUNTING OF STEEL LIGHT FIXTURES WITH SCREW COUPLING

PAIR OF ADJUSTABLE SUPPORTS FOR WALL OR CEILING MOUNTING OF STEEL LIGHT FIXTURES WITH SCREW COUPLING
Part numbers Manufacturing material Description
820010 Stainless steel AISI 304 SWIVELLING SUPPORTS FOR STAINLESS STEEL LIGHTING FIXTURES
820010 Stainless steel AISI 304 SWIVELLING SUPPORTS FOR STAINLESS STEEL LIGHTING FIXTURES

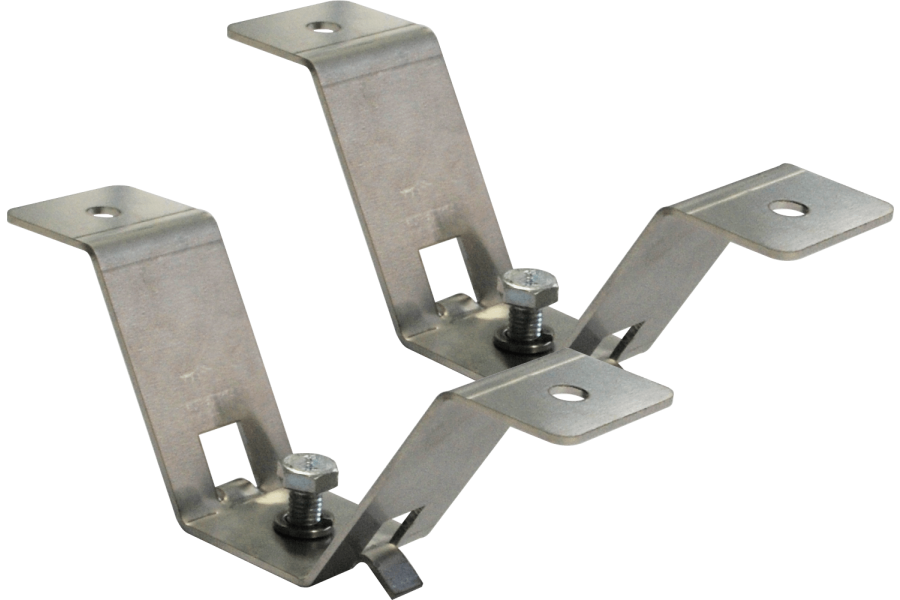

RINOL PAIR OF “V” BRACKETS FOR CEILING MOUNTING OF STEEL LIGHTING FIXTURES WITH SCREW COUPLING

PAIR OF “V” BRACKETS FOR CEILING MOUNTING OF STEEL LIGHTING FIXTURES WITH SCREW COUPLING
Part numbers Manufacturing material Description
820017 Stainless steel AISI 304 SUPPORTS FOR STAINLESS STEEL LIGHTING FIXTURES
820017 Stainless steel AISI 304 SUPPORTS FOR STAINLESS STEEL LIGHTING FIXTURES

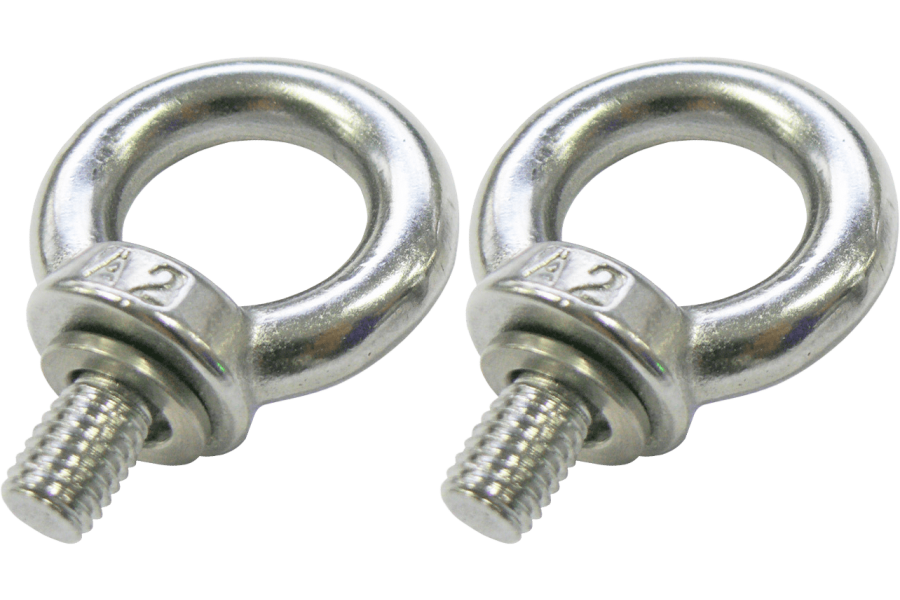

RINO PAIR OF EYEBOLTS FOR PENDANT MOUNTING OF STEEL LIGHTING FIXTURES WITH SCREW COUPLING

PAIR OF EYEBOLTS FOR PENDANT MOUNTING OF STEEL LIGHTING FIXTURES WITH SCREW COUPLING
Part numbers Manufacturing material Description
820011 Stainless steel AISI 304 PAIR OF EYEBOLT FOR INSTALLATION AND SUSPENSION OF WATERTIGHT STAINLESS STEEL LIGHTING FIXTURES
820011 Stainless steel AISI 304 PAIR OF EYEBOLT FOR INSTALLATION AND SUSPENSION OF WATERTIGHT STAINLESS STEEL LIGHTING FIXTURES

Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.

Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.

Logo Lumicon
Logo Lia
Warranty
CESI
Certificate CESI
RINA
Certificate RINA
ATEX
Certificate ATEX
IECex
Certificate IECex
NEMKO
Certificate NEMKO
QL
Certificate QL
LDT File Data Sheet
