Meta150

META150 is the new addition to the META range of professional pendant light fixtures with an efficiency of up to 150 lm/W, with LEDs arranged in a circular crown that allow uniform lighting without the need for adjustments. This efficacy allows you to save over 70% on energy consumption. The META150 light is protected by a die-cast aluminium body with an anti-corrosion treatment and by a tempered glass or HACCP polycarbonate diffuser. The quality of the light can be seen from the high visual comfort given by the PMMA lenses designed and built by Palazzoli. The lifetime over 230.000 hours and the Italian design make META150 the best solution for industrial, retail and sports lighting.

IP66/IP67
IP66/IP67
IK08
IK08
Corrosion Resistant
Corrosion Resistant
Flicker free
Flicker free
Energy saving
Energy saving
Product selector

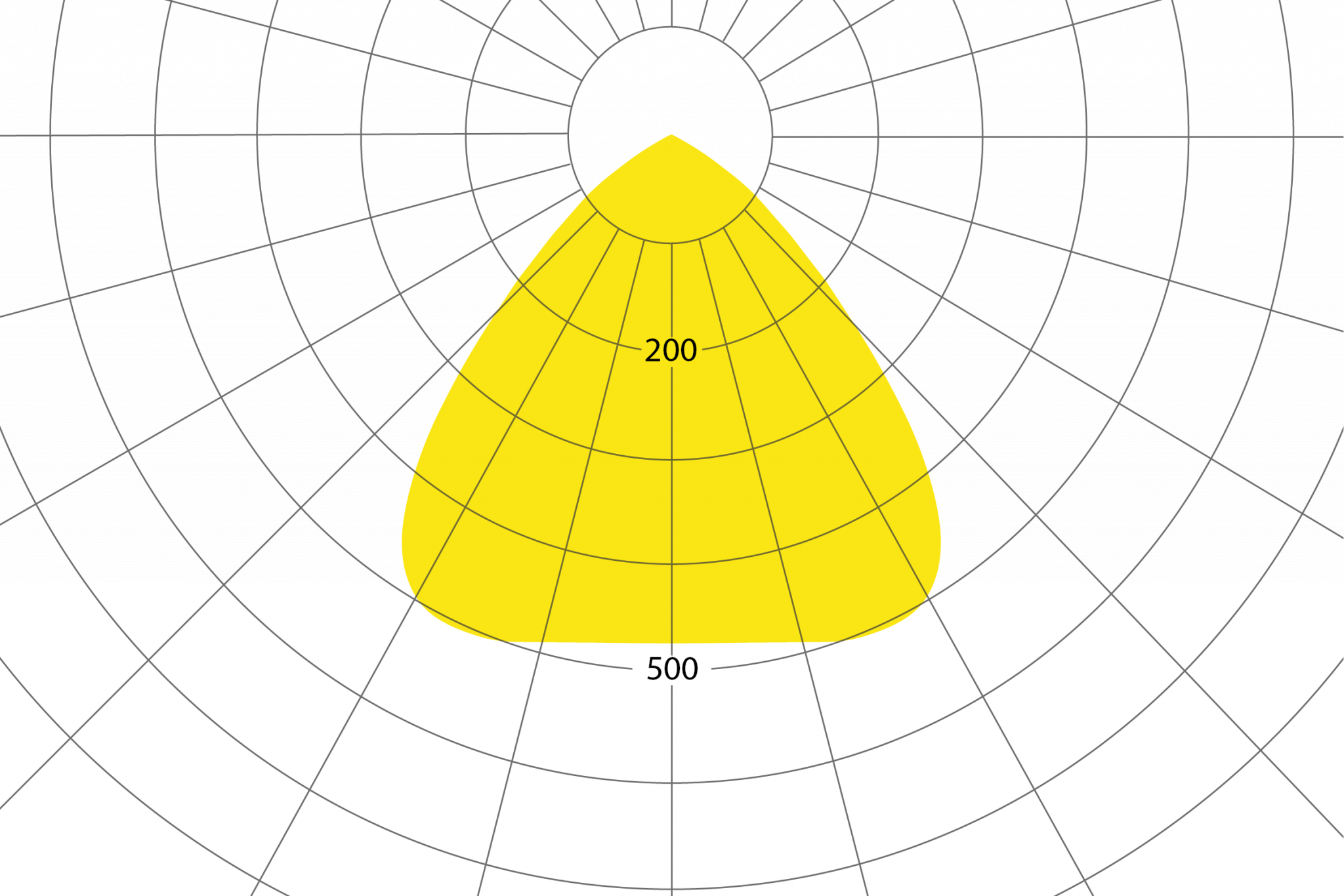

Rotosymmetrical 90° Comfort Wide Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 5m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810630DA 117W 16349lm 140lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810640DA 156W 21798lm 140lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810650DA 179W 25712lm 143.60lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810660DA 215W 30883lm 143.60lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI

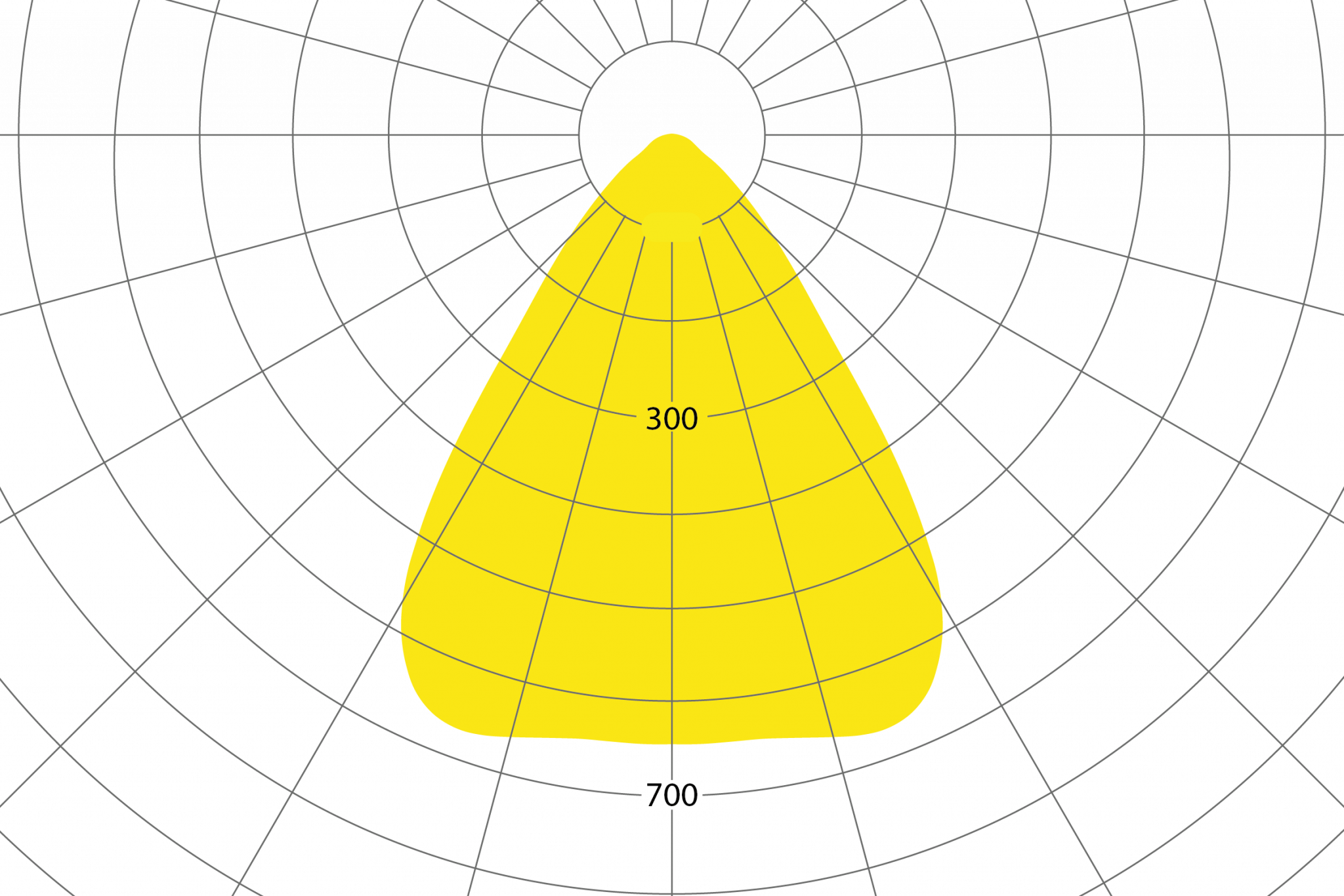

Rotosymmetrical 75° Medium Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 5m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810631DA 117W 16022lm 137lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810641DA 156W 21362lm 137lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810651DA 179W 25193lm 140.70lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810661DA 215W 30260lm 140.70lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI

HACCP - Rotosymmetrical 90° Comfort Wide Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 5m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810432DA 117W 16349lm 140lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI
810442DA 156W 21798lm 140lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI
810452DA 179W 25712lm 143.60lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI
810462DA 215W 30883lm 143.60lm/W Symmmetrical wide comfort 88° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI

HACCP - Rotosymmetrical 75° Medium Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 5m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810433DA 117W 16022lm 137lm/W Symmetrical medium beam 75° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI
810443DA 156W 21362lm 137lm/W Symmetrical medium beam 75° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI
810453DA 179W 25193lm 140.70lm/W Symmetrical medium beam 75° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI
810463DA 215W 30260lm 140.70lm/W Symmetrical medium beam 75° UV stabilized polycarbonate DALI 4000K Obtainable with UPS/DALI

High Efficiency - Rotosymmetrical 90° Comfort Wide Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 5m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810430DA 96W 13632lm 142lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810440DA 129W 18318lm 142lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810450DA 151W 22197lm 147lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810460DA 181W 26426lm 146lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI

High Efficiency - Rotosymmetrical 75° Medium Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 5m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810431DA 96W 13440lm 140lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810441DA 129W 18060lm 140lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810451DA 151W 21895lm 145lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810461DA 181W 26064lm 144lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI

High Temperature +60°C - Rotosymmetrical 90° Comfort Wide Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 5m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810430HT 73W 10775lm 147.60lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810440HT 97W 14317lm 147.60lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810450HT 112W 16912lm 151lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810460HT 134W 20234lm 151lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI

High Temperature +60°C - Rotosymmetrical 75° Medium Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 5m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810431HT 73W 10600lm 145lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810451HT 112W 16576lm 148lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
810461HT 134W 19832lm 148lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI

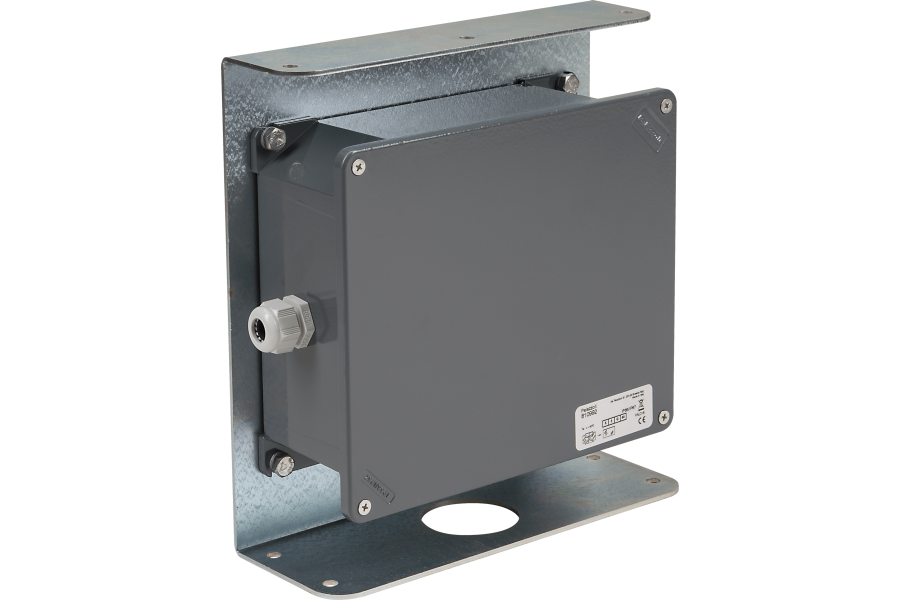

Emergency Kit for META

Emergency Kit

Part numbers Manufacturing material Description
810992 Palazzoli Thermosetting GRP ENCLOSURE FOR 1H EMERGENCY KIT
810991 Aluminum alloy ENCLOSURE FOR 3H EMERGENCY KIT

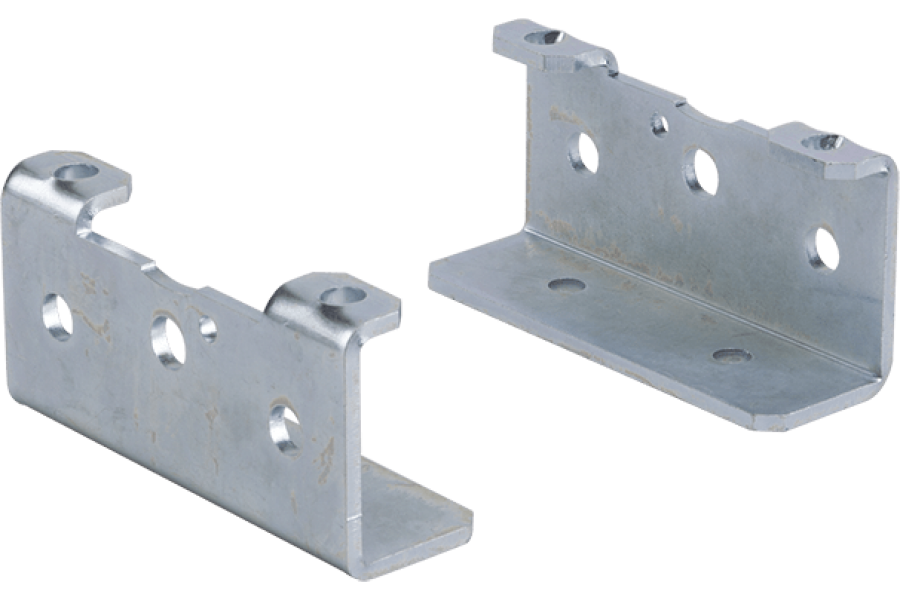

PAIR OF BRACKETS FOR MOUNTING ON DOUBLE CHAIN AND BUSBAR

PAIR OF BRACKETS
Part numbers Manufacturing material Description
810997 Steel KIT FOR DOUBLE CHAIN OR BUSBARS INSTALLATION

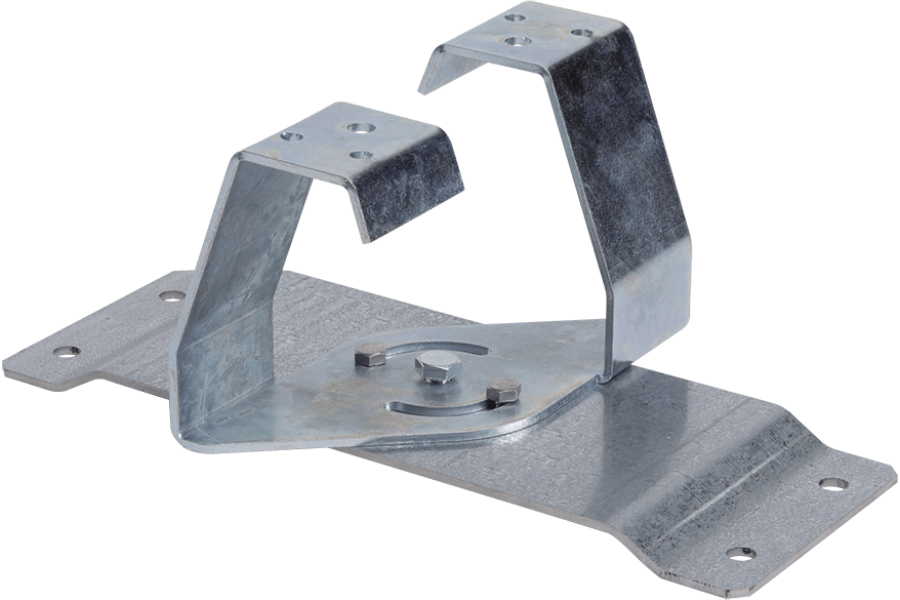

0 - 90° ADJUSTABLE BRACKET FOR MOUNTING ON DOUBLE CHAIN

0 - 90° ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
810996 Steel ADJUSTABLE KIT FOR SUSPENDD INSTALLATION

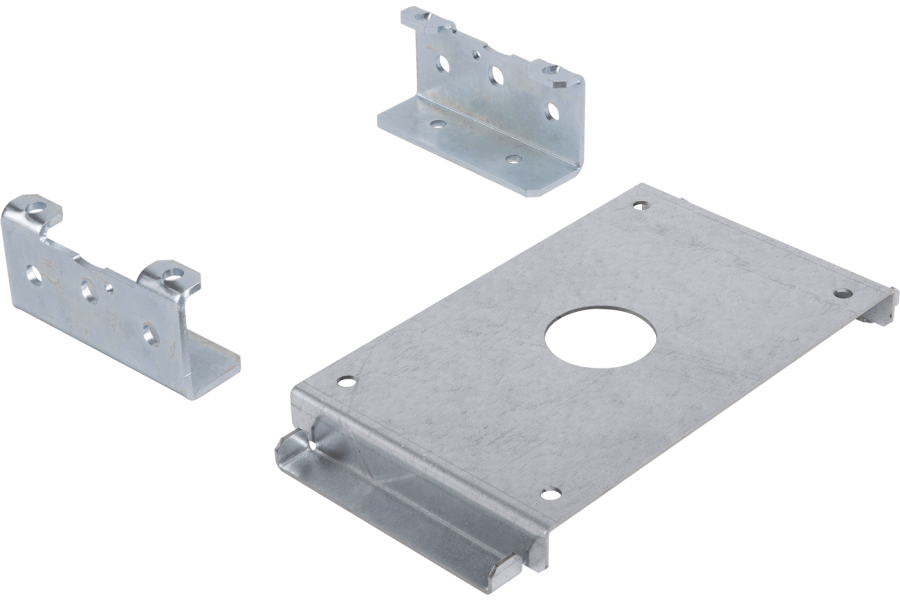

KIT WITH BRACKET FOR CEILING MOUNTING

KIT WITH BRACKET
Part numbers Manufacturing material Description
810998 Steel KIT FOR CEILING INSTALLATION

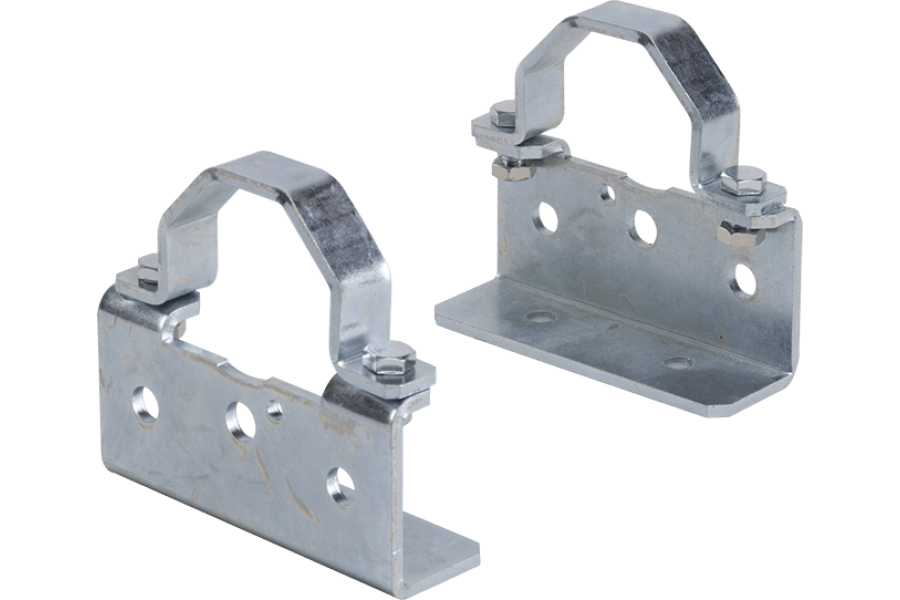

SET OF BRACKETS FOR HORIZONTAL POLE MOUNTING Ø 60 MM

SET OF BRACKETS FOR HORIZONTAL POLE MOUNTING Ø 60 MM
Part numbers Manufacturing material Description
810995 Steel PAIR OF COLLARS FOR POLE MOUNTING

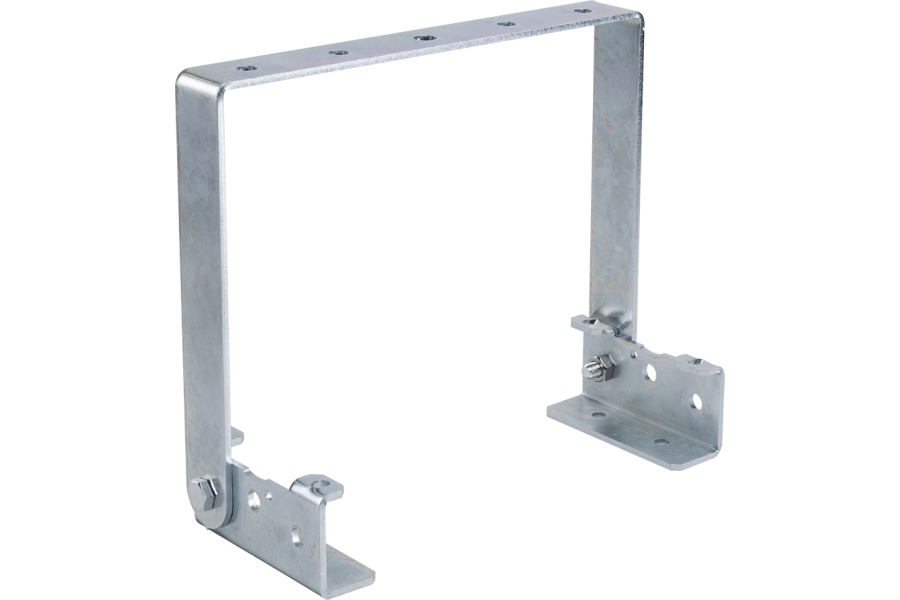

ADJUSTABLE BRACKET FOR WALL-MOUNTING POLE MOUNTING AND LIGHT TOWER MOUNTING

ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
810999 Steel ADJUSTABLE SUPPORT IN ZINC STEEL

0 - 90° ADJUSTABLE BRACKET FOR MOUNTING ON CATENARY CABLE

0 - 90° ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
810994 Steel KIT FOR WIRES SUSPENDED INSTALLATION

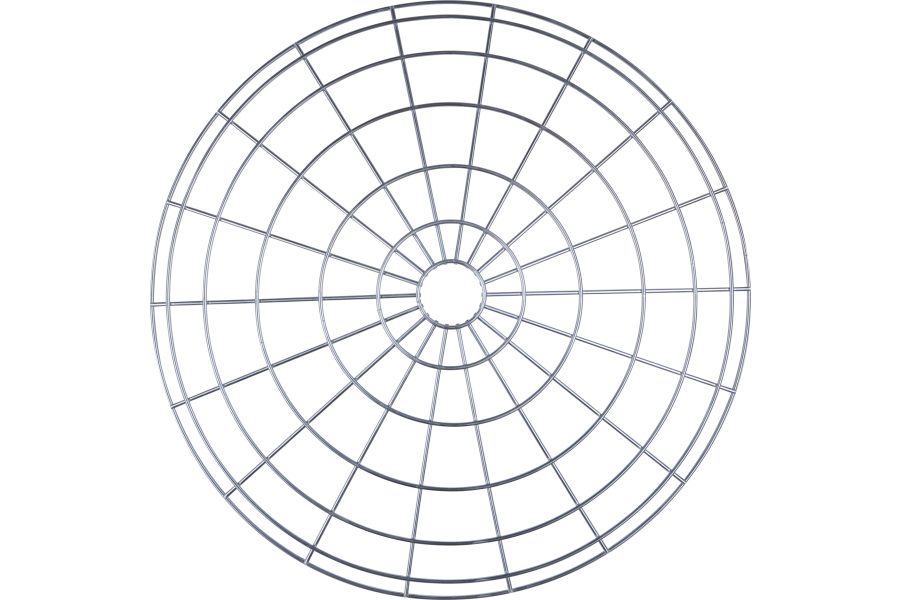

PROTECTION GUARD

PROTECTION GUARD
Part numbers Manufacturing material Description
810993 Stainless steel AISI 304 PROTECTION GRILL IN ZINC STEEL

Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.

Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.
