Meta

META is the first industrial luminaire with LEDs arranged in a circular crown that allow uniform lighting without the need for adjustments. The body is made of die-cast aluminium with anti-corrosion treatment, finished with an anti-scratch powder coating. The 4 mm thick extra-clear tempered glass diffuser guarantees maximum resistance in harsh environments with chemical substances. Thanks to the different beam optics available in the catalogue for extra wide, narrow, elliptical and asymmetrical distributions, work areas can be illuminated in the best possible way, guaranteeing visual comfort and the best lighting performance.

1-10V dimmable
1-10V dimmable
IP66/IP67
IP66/IP67
IK08
IK08
Corrosion Resistant
Corrosion Resistant
Flicker free
Flicker free
Energy saving
Energy saving
Product selector

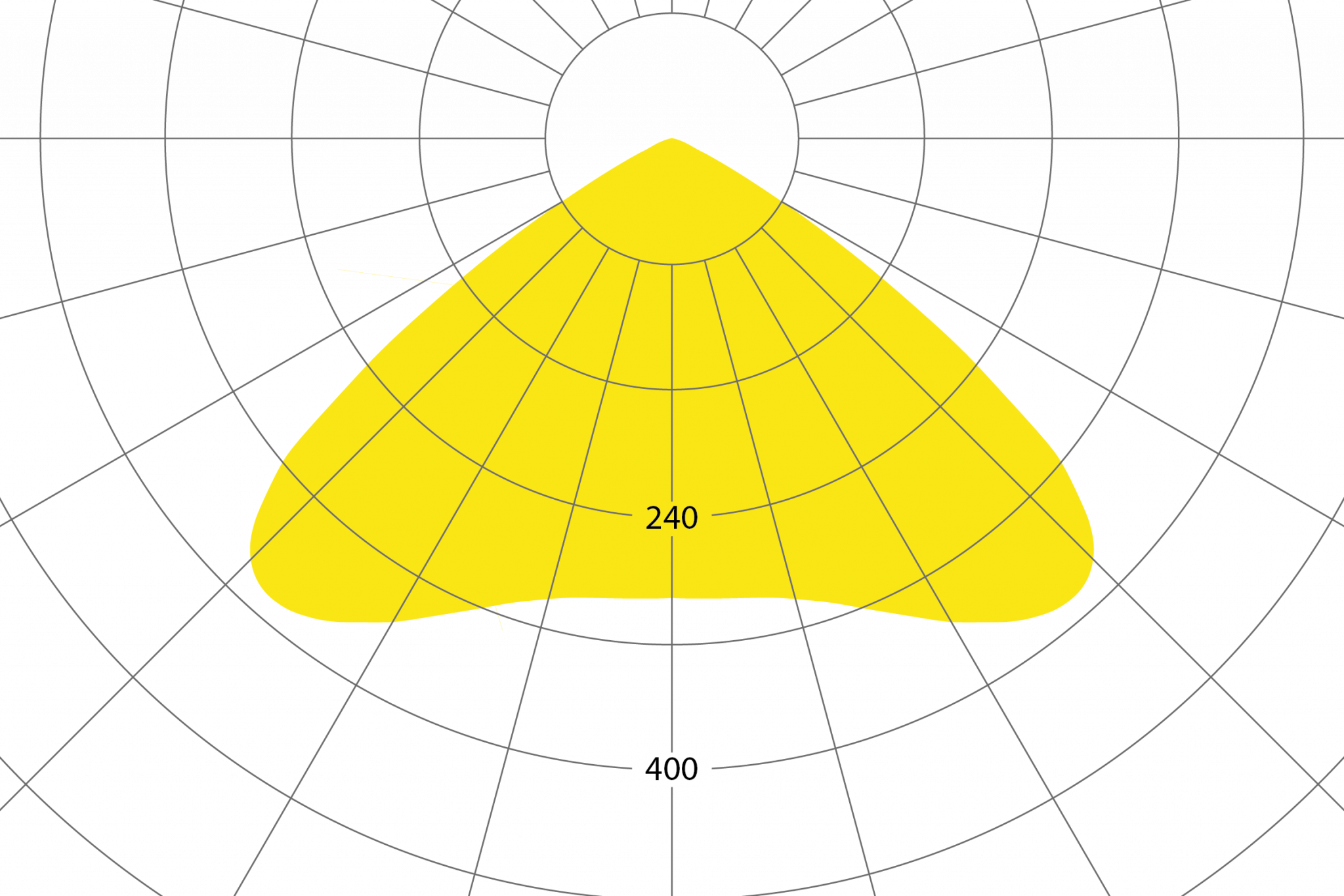

Rotosymmetrical 110° Extra Wide Beam

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 4m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810090 99W 10830lm 109.40lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810020 133W 14439lm 108.60lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810050 168W 18049lm 107.40lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810080 199W 21659lm 108.80lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810190 99W 10830lm 109.40lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K Battery kit, duration 1/3h recharge 24h
810120 133W 14439lm 108.60lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K Battery kit, duration 1/3h recharge 24h
810150 168W 18049lm 107.40lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K Battery kit, duration 1/3h recharge 24h
810180 199W 21659lm 108.80lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K Battery kit, duration 1/3h recharge 24h

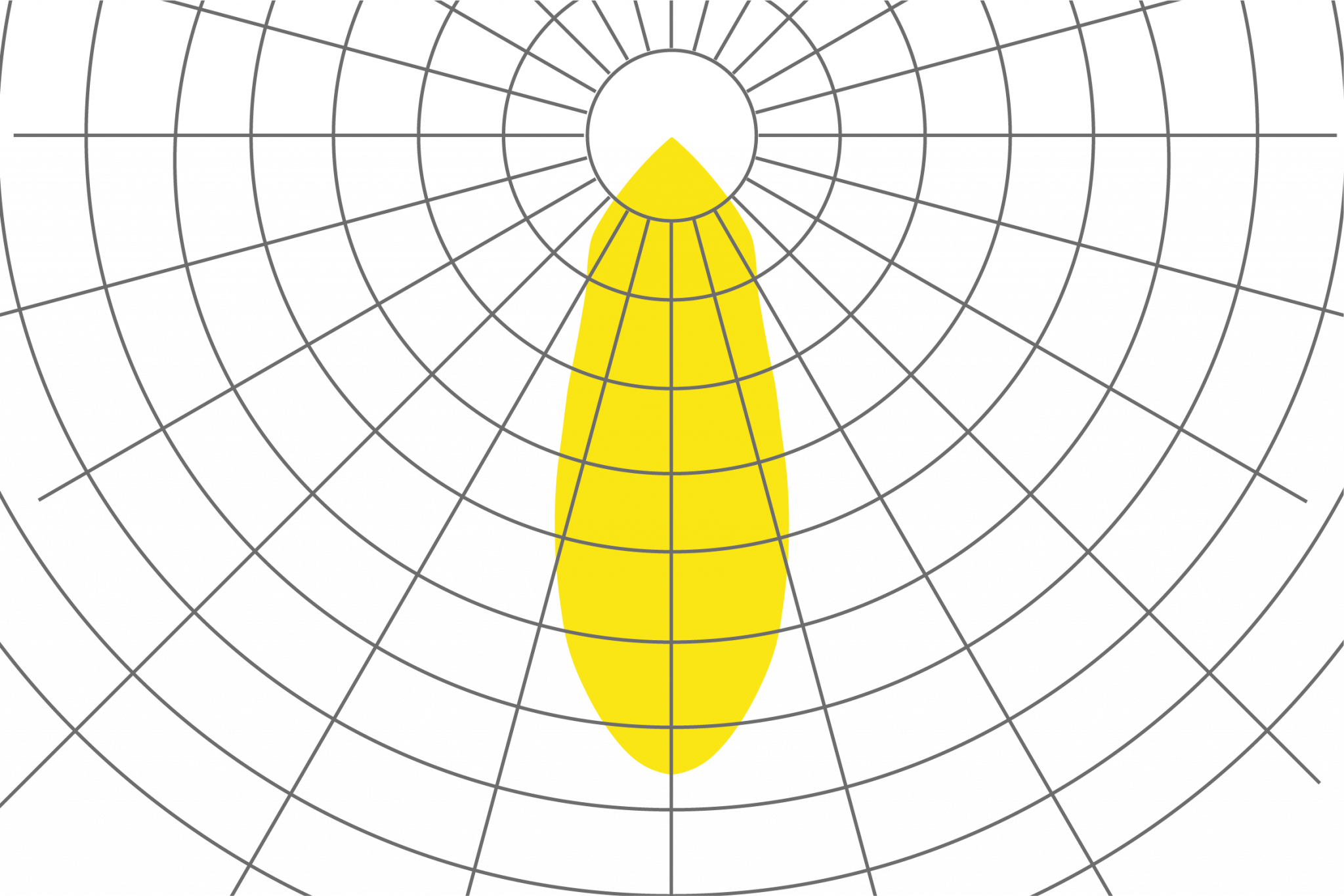

Rotosymmetrical 41° Narrow Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 6m & 9m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810091 99W 10572lm 106.80lm/W Rotosymmetric narrow comfort 41° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810021 133W 14096lm 106lm/W Rotosymmetric narrow comfort 41° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810051 168W 17620lm 104.90lm/W Rotosymmetric narrow comfort 41° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810081 199W 21144lm 106.30lm/W Rotosymmetric narrow comfort 41° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A

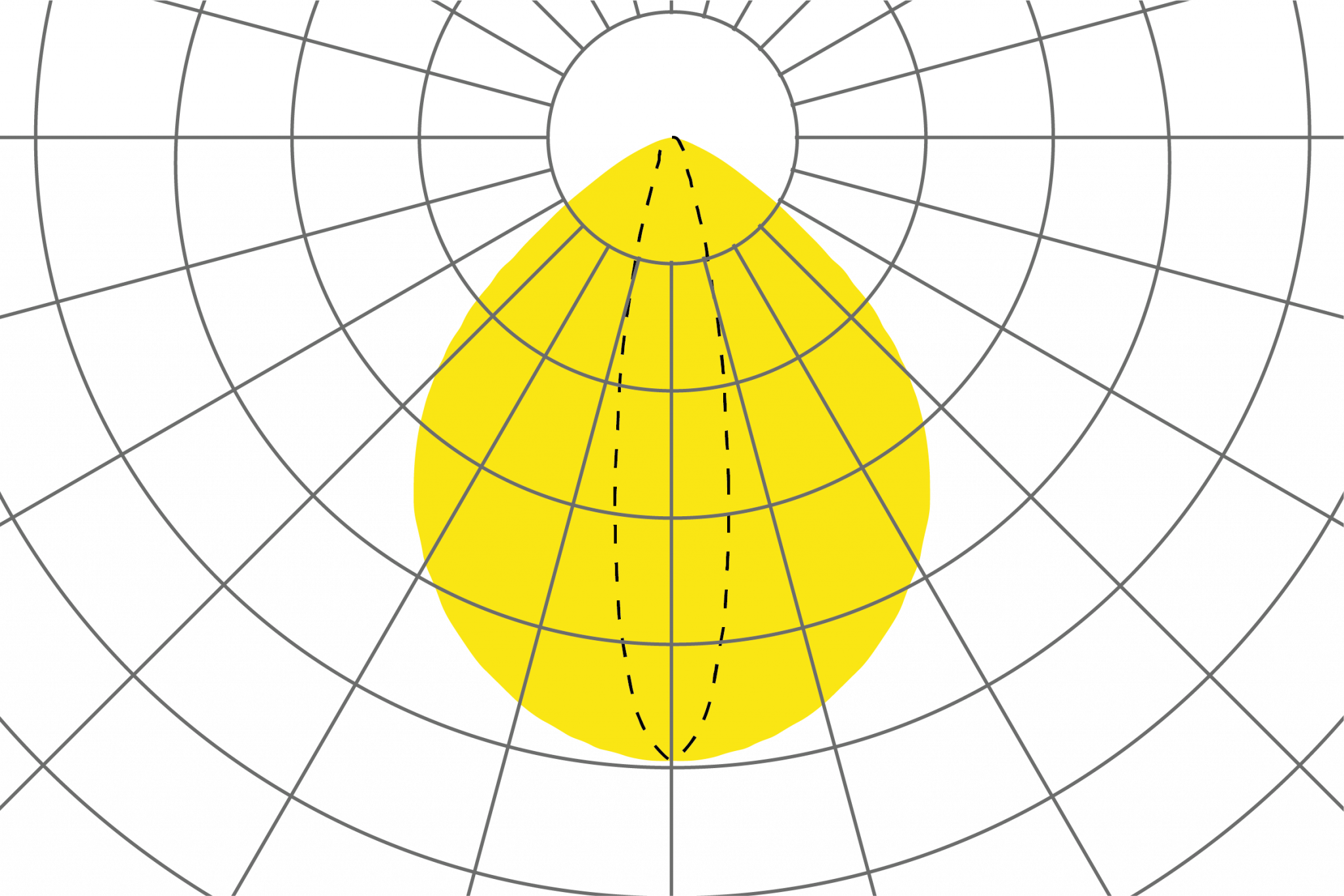

Symmetrical 92°x20° Elliptical Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 6m & 9m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810092 99W 9965lm 100.70lm/W Simmetrica ellittica comfort 92°X20° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810022 133W 13287lm 99.90lm/W Simmetrica ellittica comfort 92°X20° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810052 168W 16609lm 98.90lm/W Simmetrica ellittica comfort 92°X20° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810082 199W 19931lm 100.20lm/W Simmetrica ellittica comfort 92°X20° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A

High Temperature +55° - Rotosymmetrical 110° Extra Wide Beam

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 4m & 8m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810090HT 76W 8339lm 109.70lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810020HT 102W 11118lm 109lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810050HT 128W 13898lm 107.70lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810080HT 153W 16677lm 109lm/W Rotosymmetric wide 110° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A

High Temperature +55°C - Rotosymmetrical 41° Narrow Beam Optics

Supplied with quick connection for pendant mounting. Power supply with 5P quick connector.

Recommended installation height: between 6m & 9m.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810091HT 76W 8140lm 107.10lm/W Rotosymmetric narrow comfort 41° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810021HT 102W 10854lm 106.40lm/W Rotosymmetric narrow comfort 41° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810051HT 128W 13567lm 105.20lm/W Rotosymmetric narrow comfort 41° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A
810081HT 153W 16281lm 106.40lm/W Rotosymmetric narrow comfort 41° Extraclear tempered glass 4 mm Dimming 1-10V 4000K N/A

Emergency Kit for META

Emergency Kit

Part numbers Manufacturing material Description
810992 Palazzoli Thermosetting GRP ENCLOSURE FOR 1H EMERGENCY KIT
810991 Aluminum alloy ENCLOSURE FOR 3H EMERGENCY KIT

PAIR OF BRACKETS FOR MOUNTING ON DOUBLE CHAIN AND BUSBAR

PAIR OF BRACKETS
Part numbers Manufacturing material Description
810997 Steel KIT FOR DOUBLE CHAIN OR BUSBARS INSTALLATION

0 - 90° ADJUSTABLE BRACKET FOR MOUNTING ON DOUBLE CHAIN

0 - 90° ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
810996 Steel ADJUSTABLE KIT FOR SUSPENDD INSTALLATION

KIT WITH BRACKET FOR CEILING MOUNTING

KIT WITH BRACKET
Part numbers Manufacturing material Description
810998 Steel KIT FOR CEILING INSTALLATION

SET OF BRACKETS FOR HORIZONTAL POLE MOUNTING Ø 60 MM

SET OF BRACKETS FOR HORIZONTAL POLE MOUNTING Ø 60 MM
Part numbers Manufacturing material Description
810995 Steel PAIR OF COLLARS FOR POLE MOUNTING

ADJUSTABLE BRACKET FOR WALL-MOUNTING POLE MOUNTING AND LIGHT TOWER MOUNTING

ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
810999 Steel ADJUSTABLE SUPPORT IN ZINC STEEL

0 - 90° ADJUSTABLE BRACKET FOR MOUNTING ON CATENARY CABLE

0 - 90° ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
810994 Steel KIT FOR WIRES SUSPENDED INSTALLATION

PROTECTION GUARD

PROTECTION GUARD
Part numbers Manufacturing material Description
810993 Stainless steel AISI 304 PROTECTION GRILL IN ZINC STEEL

Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.

Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.
