X-TIGUA is the best way to illuminate large open spaces, sports facilitys, slip roads, junctions and roundabouts. A die-cast aluminium body with very low copper content, anti-corrosion treatment, and a 4mm thick diffuser in extra-clear tempered glass guarantees the durability of this floodlight. It is available in 3 sizes providing actual output up to 65000 lm. The rear heat sink allows for excellent heat management and increases the longevity of the luminous flux. Latest-generation LEDs can maintain luminous flux over a period of more than 100,000 hours, The optics are made using non-ageing UV-resistant PMMA lenses with >90% efficiency and >95% transparency. The range consists of 3 symmetrical beams, 3 asymmetrical beams and 1 suited to roadway. Designed for fast and secure cabling. X-TIGUA offers a wide range of accessories allowing a multitude of mounting options.
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|

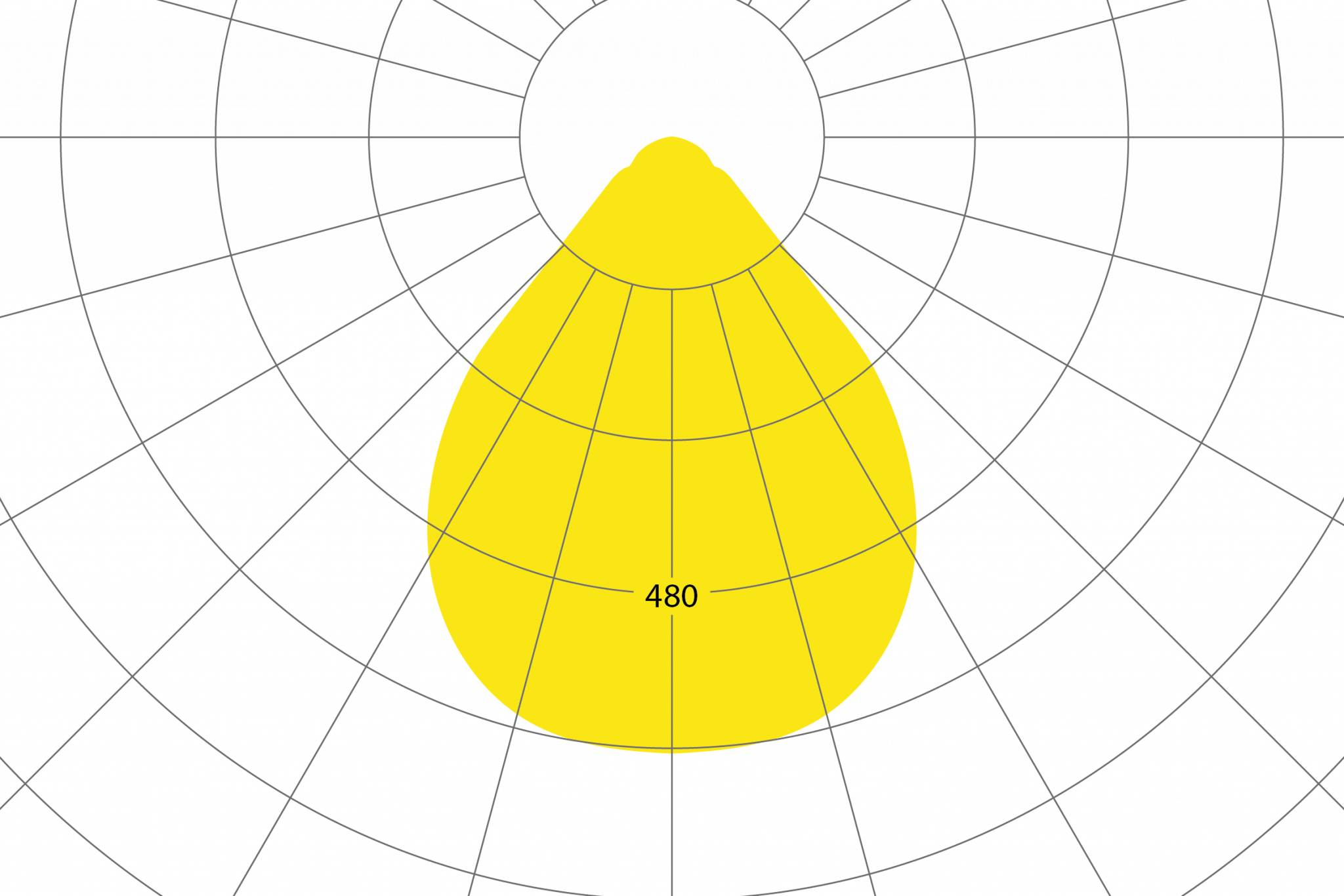

| 838036DA | 236W | 31388lm | 133lm/W | Symmetrical wide comfort 81° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838048DA | 309W | 41097lm | 133lm/W | Symmetrical wide comfort 81° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|

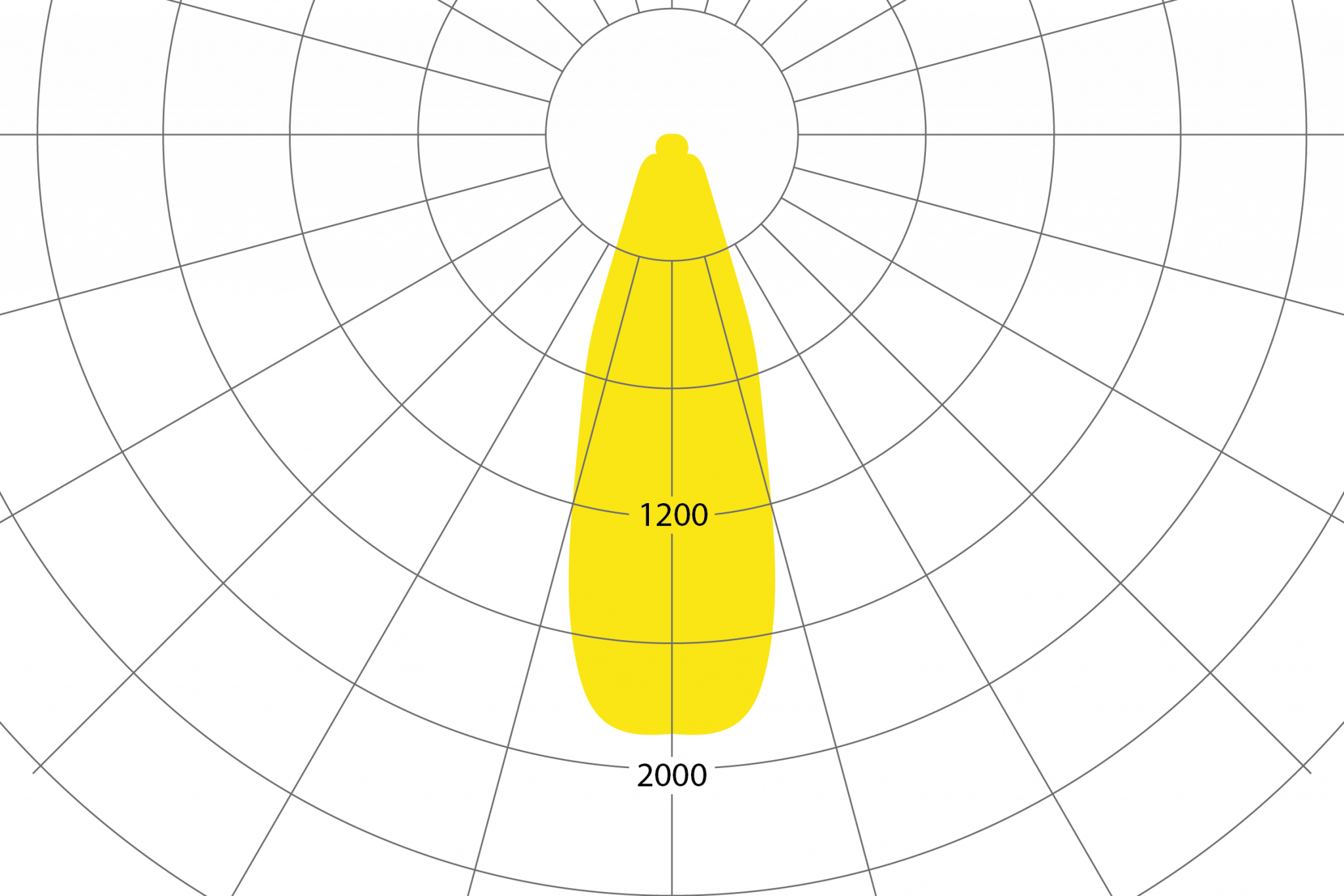

| 838136DA | 236W | 31388lm | 133lm/W | Simmetrica concentrante comfort 36° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838148DA | 309W | 41097lm | 133lm/W | Simmetrica concentrante comfort 36° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|

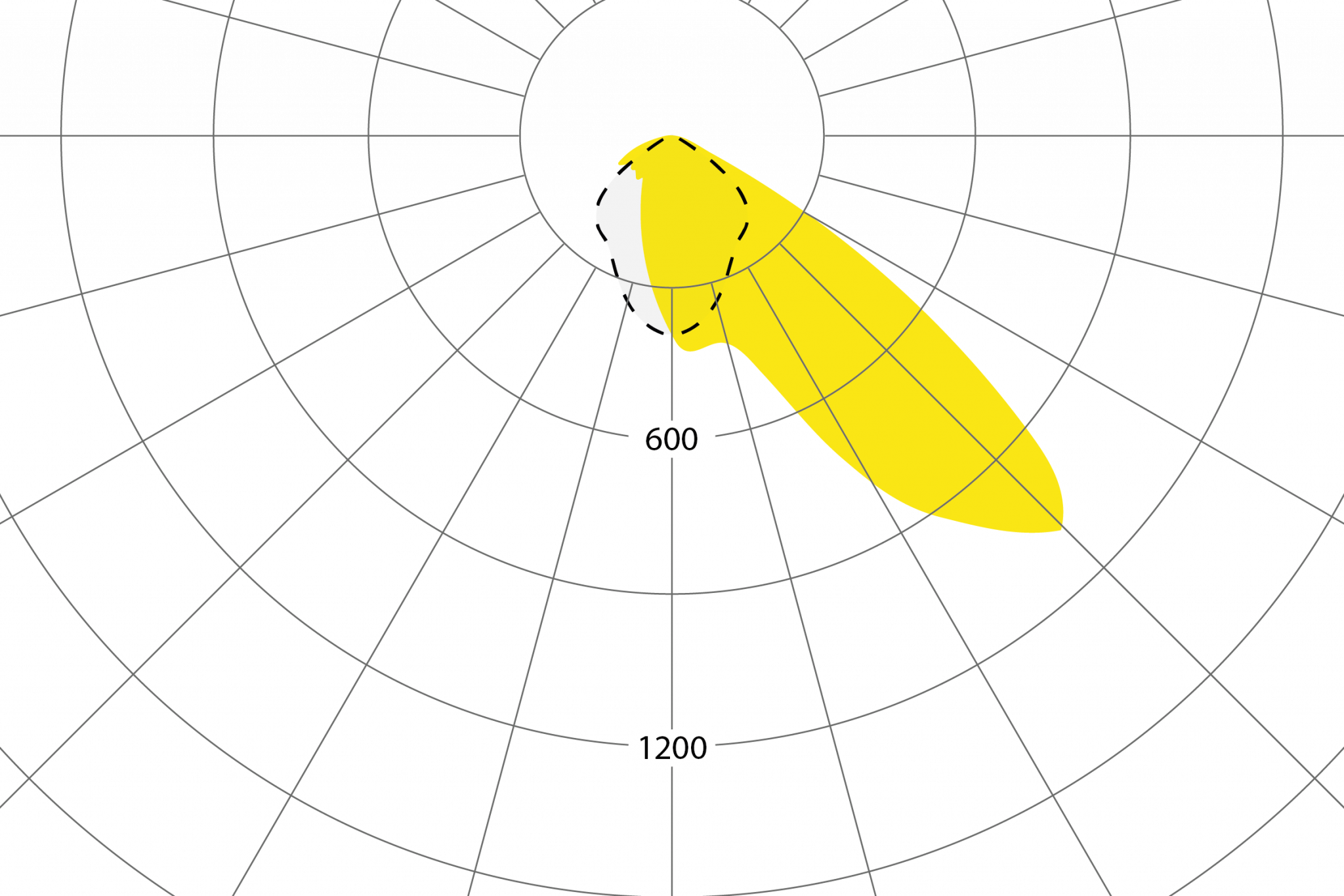

| 838236DA | 236W | 31388lm | 133lm/W | Asymmetric wide 23° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838248DA | 309W | 41097lm | 133lm/W | Asymmetric wide 23° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838736DA | 236W | 31388lm | 133lm/W | Asymmetric wide 50° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838748DA | 309W | 41097lm | 133lm/W | Asymmetric wide 50° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838336DA | 236W | 31388lm | 133lm/W | Asiymmetric narrow 43° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838348DA | 309W | 41097lm | 133lm/W | Asiymmetric narrow 43° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|

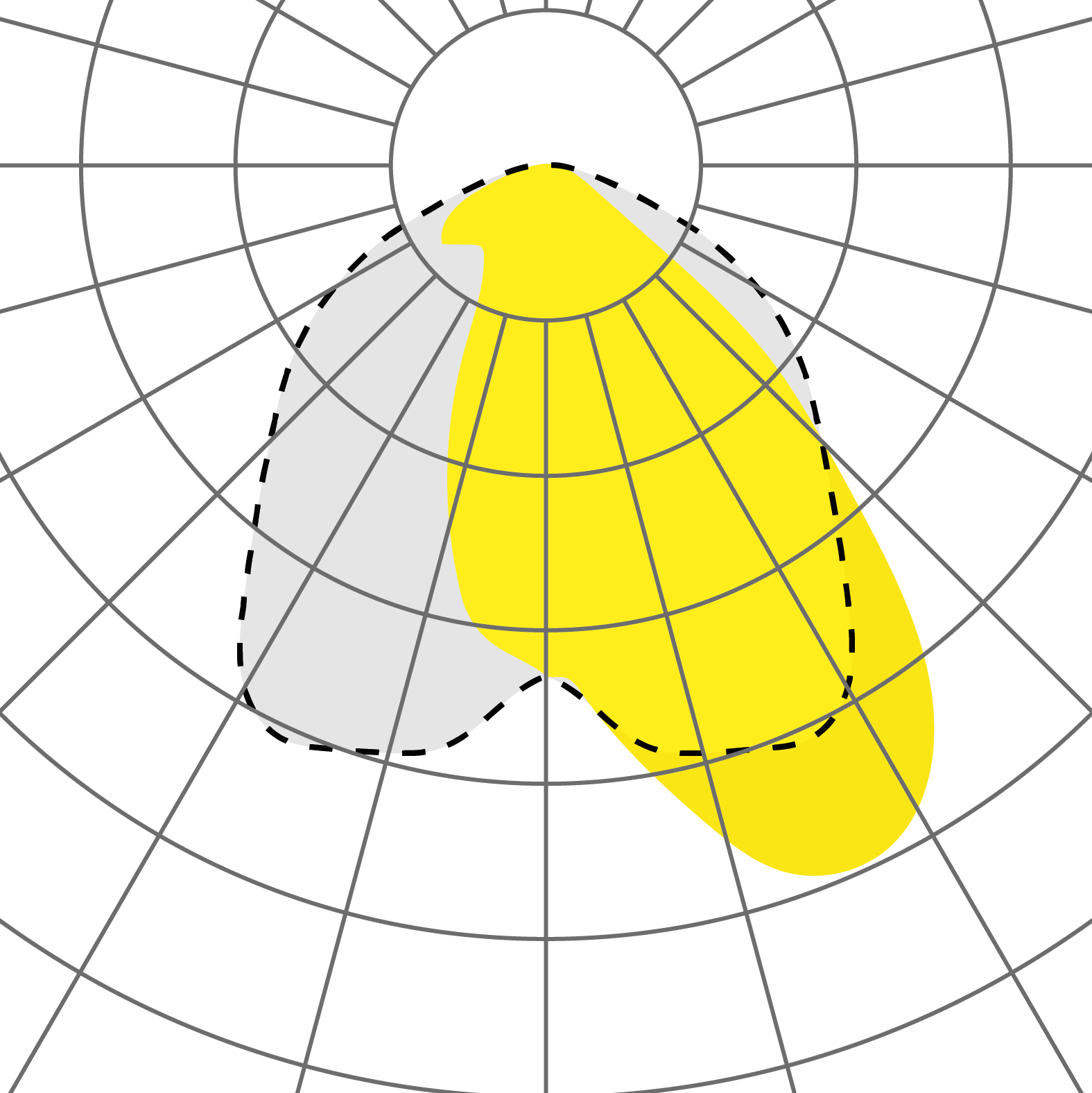

| 838536DA | 236W | 31388lm | 133lm/W | Asiymmetric narrow 55° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838548DA | 309W | 41097lm | 133lm/W | Asiymmetric narrow 55° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838060DA | 368W | 48944lm | 133lm/W | Symmetrical wide comfort 81° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838072DA | 442W | 59228lm | 134lm/W | Symmetrical wide comfort 81° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838160DA | 368W | 48944lm | 133lm/W | Simmetrica concentrante comfort 36° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838172DA | 442W | 59228lm | 134lm/W | Simmetrica concentrante comfort 36° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838260DA | 368W | 48944lm | 133lm/W | Asymmetric wide 23° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838272DA | 442W | 59228lm | 134lm/W | Asymmetric wide 23° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838760DA | 368W | 48944lm | 133lm/W | Asymmetric wide 50° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838772DA | 442W | 59228lm | 134lm/W | Asymmetric wide 50° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838360DA | 368W | 48944lm | 133lm/W | Asiymmetric narrow 43° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838372DA | 442W | 59228lm | 134lm/W | Asiymmetric narrow 43° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838560DA | 368W | 48944lm | 133lm/W | Asiymmetric narrow 55° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838572DA | 442W | 59228lm | 134lm/W | Asiymmetric narrow 55° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838096DA | 618W | 82194lm | 133lm/W | Symmetrical wide comfort 81° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838196DA | 618W | 82194lm | 133lm/W | Simmetrica concentrante comfort 36° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838296DA | 618W | 82194lm | 133lm/W | Asymmetric wide 23° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838796DA | 618W | 82194lm | 133lm/W | Asymmetric wide 50° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838396DA | 618W | 82194lm | 133lm/W | Asiymmetric narrow 43° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838596DA | 618W | 82194lm | 133lm/W | Asiymmetric narrow 55° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838012DA | 736W | 97888lm | 133lm/W | Symmetrical wide comfort 81° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838014DA | 884W | 118456lm | 134lm/W | Symmetrical wide comfort 81° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838112DA | 736W | 97888lm | 133lm/W | Simmetrica concentrante comfort 36° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838114DA | 884W | 118456lm | 134lm/W | Simmetrica concentrante comfort 36° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838212DA | 736W | 97888lm | 133lm/W | Asymmetric wide 23° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838214DA | 884W | 118456lm | 134lm/W | Asymmetric wide 23° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838712DA | 736W | 97888lm | 133lm/W | Asymmetric wide 50° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838714DA | 884W | 118456lm | 134lm/W | Asymmetric wide 50° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838312DA | 736W | 97888lm | 133lm/W | Asiymmetric narrow 43° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838314DA | 884W | 118456lm | 134lm/W | Asiymmetric narrow 43° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
Included: wall bracket.
Power supply with 5Px1.5mm2 quick connector and 1.5mm2 H07RN-F cable.
The stated flux and power values may be subject to a +/- 7% tolerance.
| Part numbers | Luminaire power | Output flux | Output efficiency | Optics | Diffuser type | Control system/dimming | Color temperature | Emergency function |
|---|---|---|---|---|---|---|---|---|
| 838512DA | 736W | 97888lm | 133lm/W | Asiymmetric narrow 55° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| 838514DA | 884W | 118456lm | 134lm/W | Asiymmetric narrow 55° | Extraclear tempered glass 4 mm | DALI | 4000K | Obtainable with UPS/DALI |
| Part numbers | Manufacturing material | Description |
|---|---|---|
| 818990 | Steel | X-TIGUA TRAVERSA 1 PROIETTORE |
| Part numbers | Manufacturing material | Description |
|---|---|---|
| 818991 | Steel | X-TIGUA TRAVERSA 2 TAGLIA 2/4 TAGLIA 1 |
Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.
Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.
