TIGUA Flood

TIGUA represents the best solution for lighting industrial sites, facades, signs, commercial spaces, sport centres and green areas. TIGUA consists of a die-cast aluminium body with very low copper content (aeronautical grade alloy), with anti-corrosion treatment, and a 4mm thick diffuser in extra-clear tempered glass, that ensure maximum resistance of the floodlight, even in harsh environments. The rear cooling fins and the electronic components used increase the service life of the unit. The estimated life of the device is 100,000 hours. The optical unit consists of a choice of optical solutions for symmetrical, asymmetrical and roadway light distribution. TIGUA benefits from a wide range of accessories that enable to easily install it in any environment: pole-top bracket, wall-mounted projecting bracket, U-plate. A front grille is also available to protect the entire unit. TIGUA is the highest performing floodlight fixture on the market.

IP66
IP66
IK08
IK08
Technical support
Technical support
Corrosion Resistant
Corrosion Resistant
Flicker free
Flicker free
Energy saving
Energy saving
Product selector

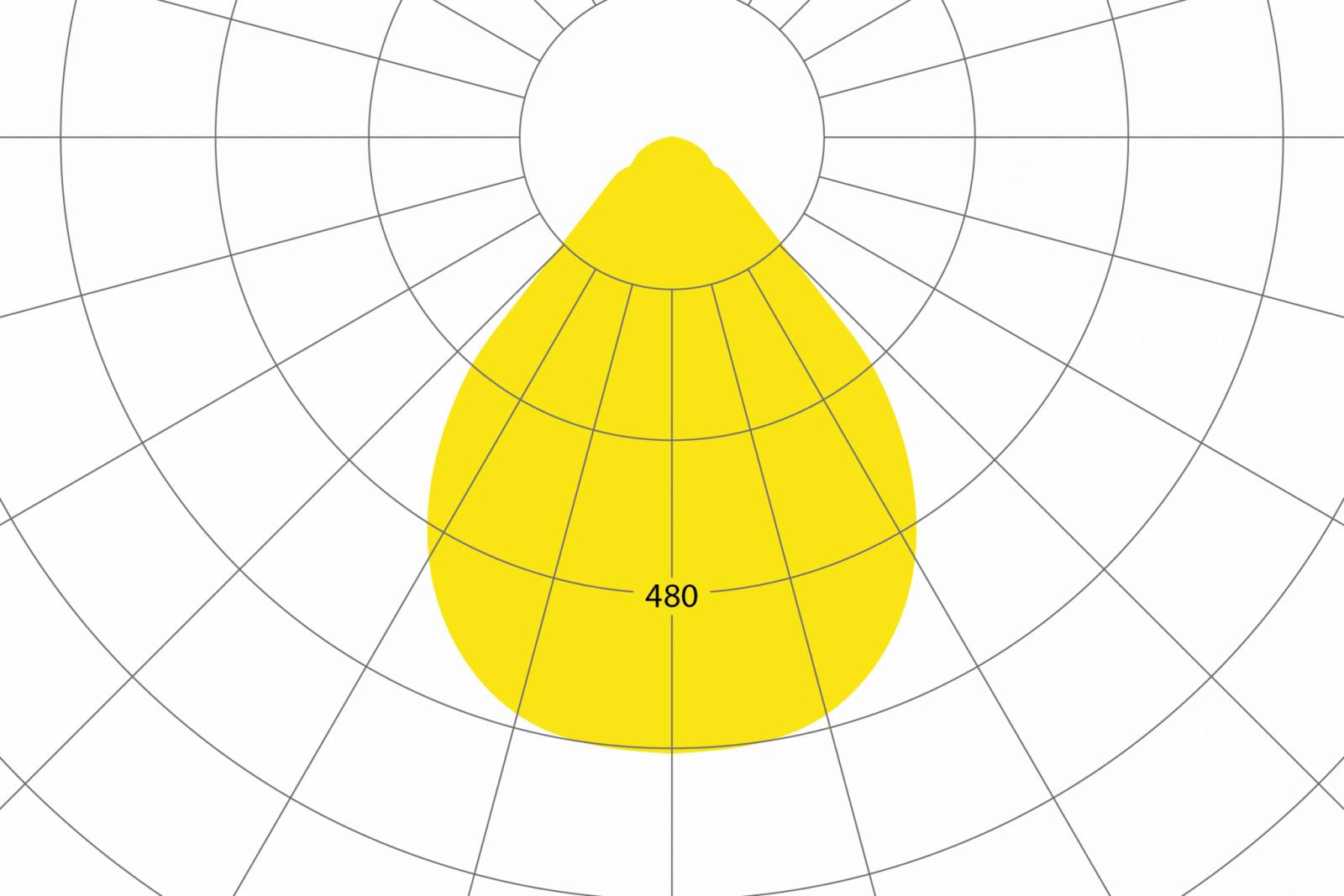

Symmetrical 81° extra wide beam optics - Tigua Flood

Included: wall bracket. Power supply with 2P quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
837011 48W 5835lm 121.50lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837012 95W 11670lm 123lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837013 130W 16141lm 124lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837024 140W 18298lm 131lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837025 188W 22900lm 122lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm Standard on-off 4000K N/A

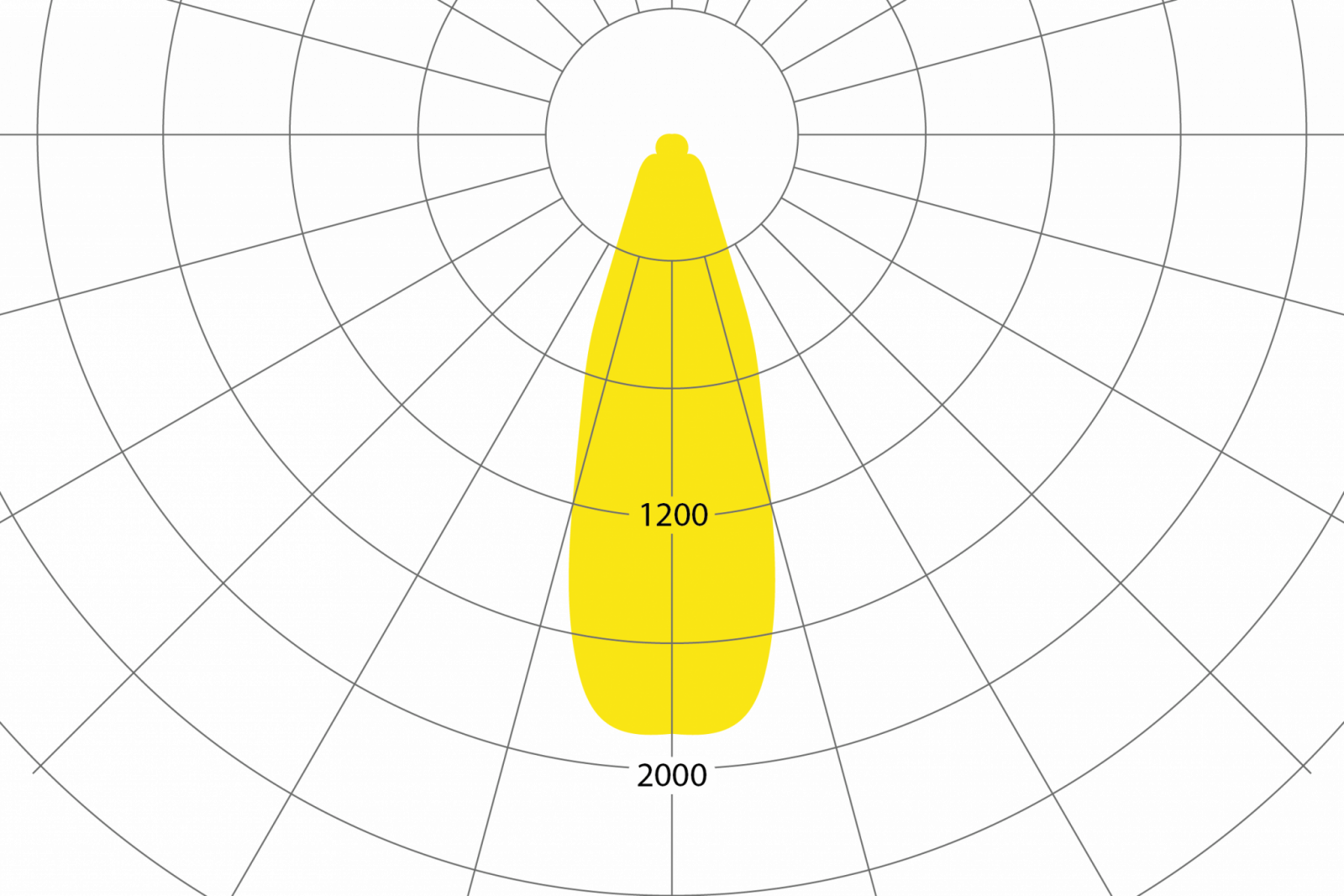

Symmetrical 36° narrow beam optics - Tigua Flood

Included: wall bracket. Power supply with 2P quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
837111 48W 5835lm 121.50lm/W Simmetrica concentrante comfort 36° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837112 95W 11670lm 123lm/W Simmetrica concentrante comfort 36° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837113 130W 16141lm 124lm/W Simmetrica concentrante comfort 36° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837124 140W 18298lm 131lm/W Simmetrica concentrante comfort 36° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837125 188W 22900lm 122lm/W Simmetrica concentrante comfort 36° Extraclear tempered glass 4 mm Standard on-off 4000K N/A

Asymmetrical 23° extra wide beam optics - Tigua Flood

Included: wall bracket. Power supply with 2P quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
837211 48W 5835lm 121.50lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837212 95W 11670lm 123lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837213 130W 16141lm 124lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837224 140W 18298lm 131lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837225 188W 22900lm 122lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm Standard on-off 4000K N/A

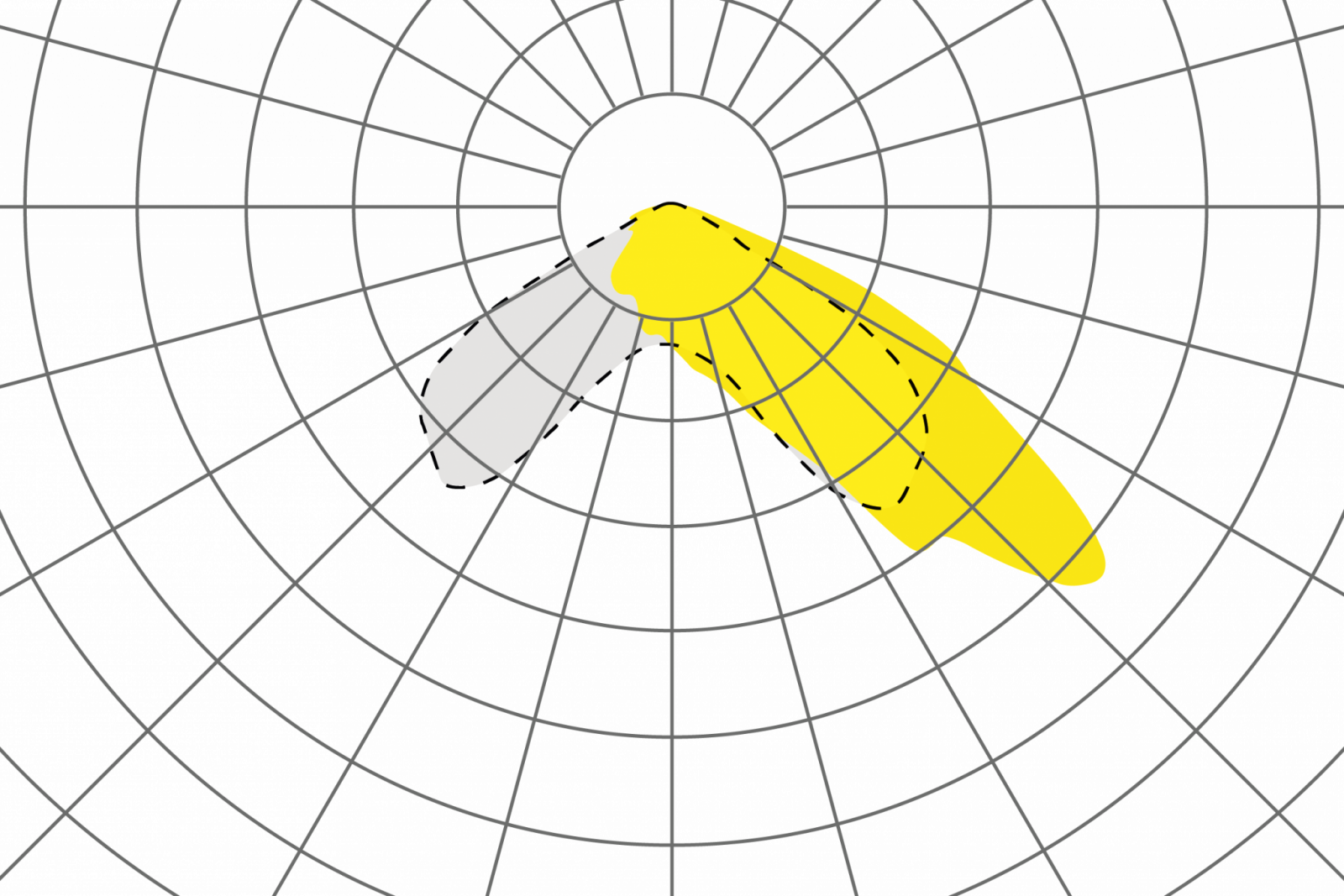

Asymmetrical 50° extra wide beam optics - Tigua Flood

Included: wall bracket. Power supply with 2P quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
837711 48W 5835lm 121.50lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837712 95W 11670lm 123lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837713 130W 16141lm 124lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837724 140W 18298lm 131lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837725 188W 22900lm 122lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm Standard on-off 4000K N/A

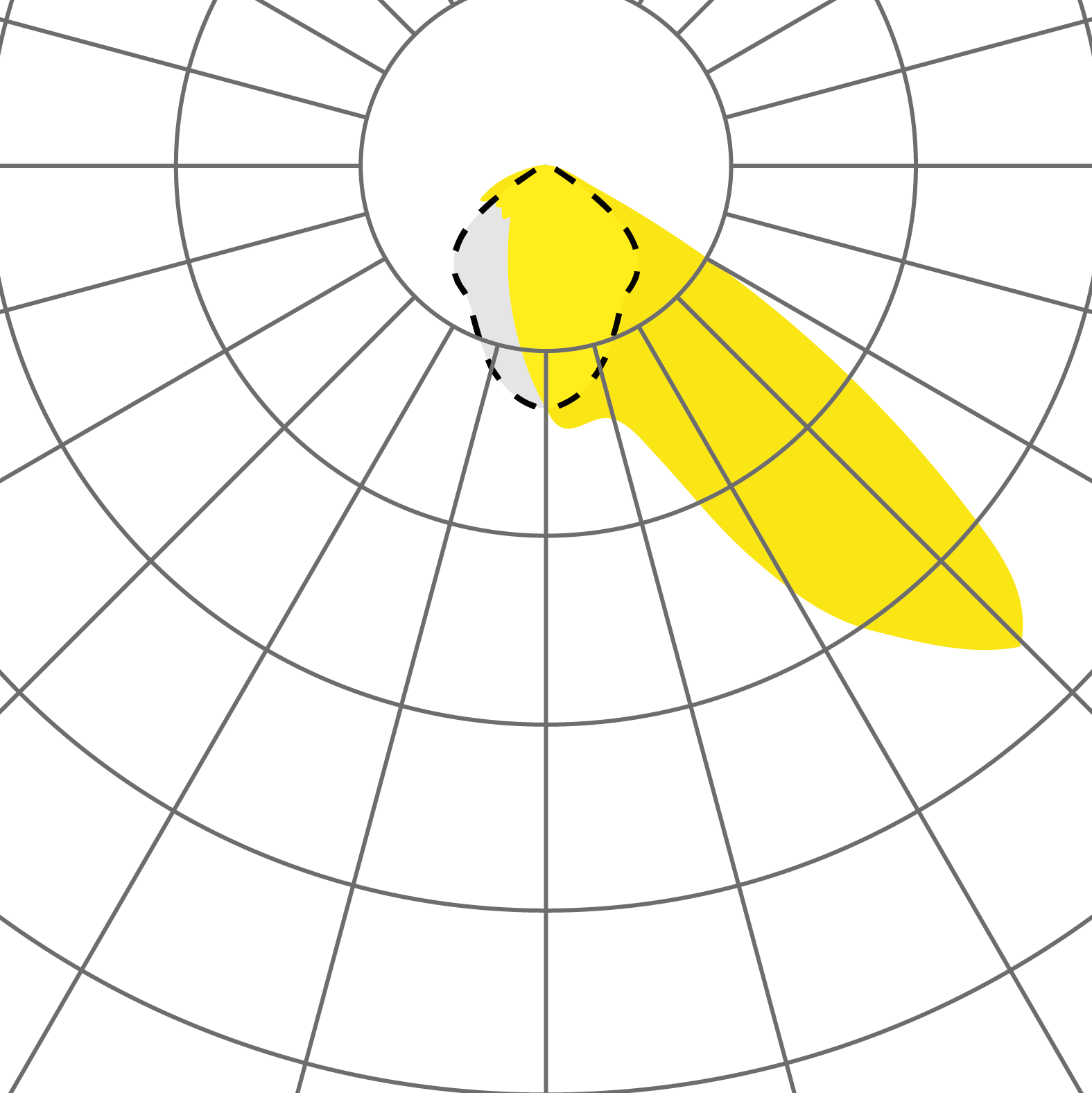

Asymmetrical 43° narrow beam optics - Tigua Flood

Included: wall bracket. Power supply with 2P quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
837311 48W 5835lm 121.50lm/W Asiymmetric narrow 43° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837312 95W 11670lm 123lm/W Asiymmetric narrow 43° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837313 130W 16141lm 124lm/W Asiymmetric narrow 43° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837324 140W 18298lm 131lm/W Asiymmetric narrow 43° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837325 188W 22900lm 122lm/W Asiymmetric narrow 43° Extraclear tempered glass 4 mm Standard on-off 4000K N/A

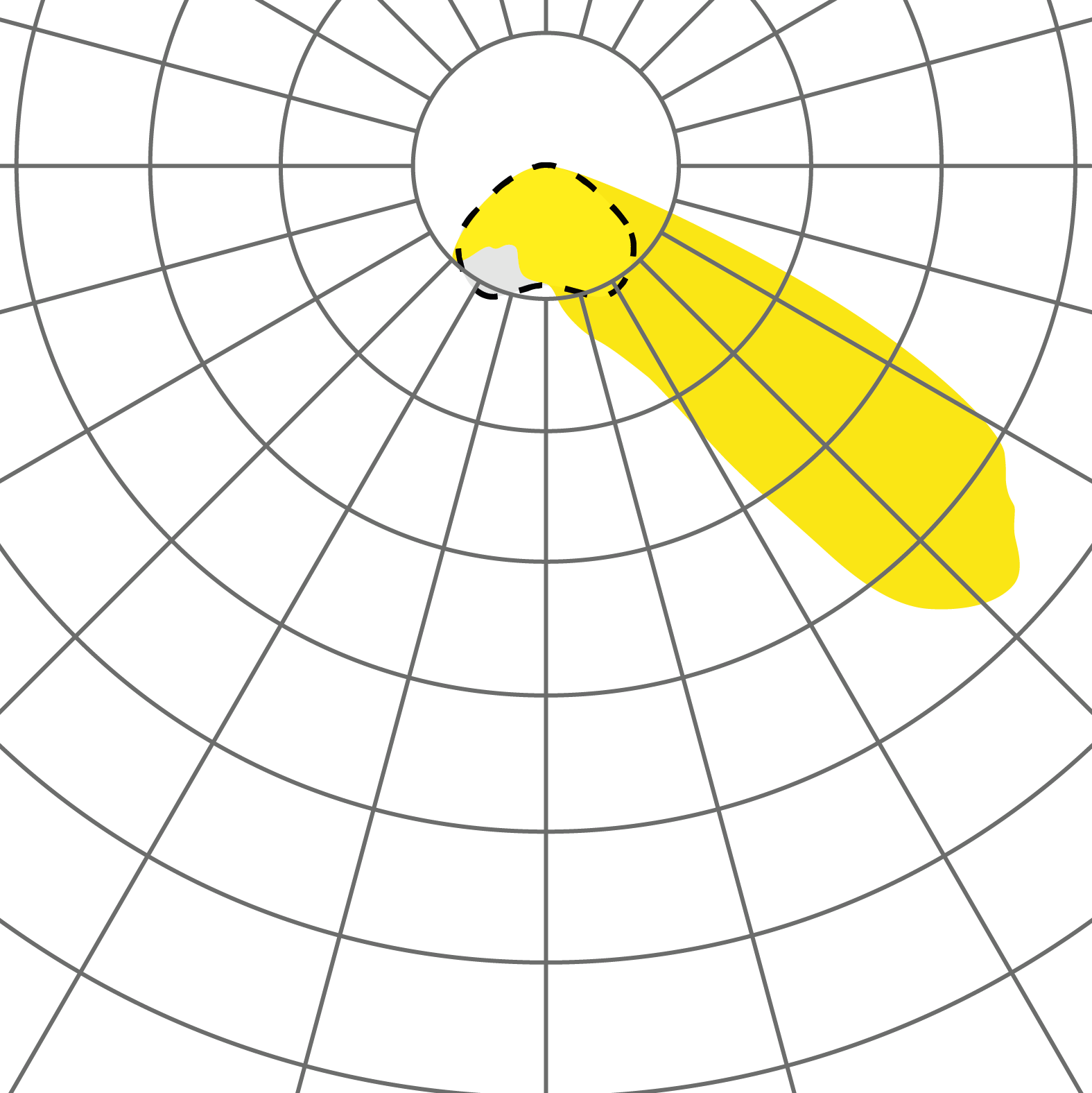

Asymmetrical 55° narrow beam optics - Tigua Flood

Included: wall bracket. Power supply with 2P quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
837511 48W 5835lm 121.50lm/W Asiymmetric narrow 55° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837312 95W 11670lm 123lm/W Asiymmetric narrow 43° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837513 130W 16141lm 124lm/W Asiymmetric narrow 55° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837524 140W 18298lm 131lm/W Asiymmetric narrow 55° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837525 188W 22900lm 122lm/W Asiymmetric narrow 55° Extraclear tempered glass 4 mm Standard on-off 4000K N/A

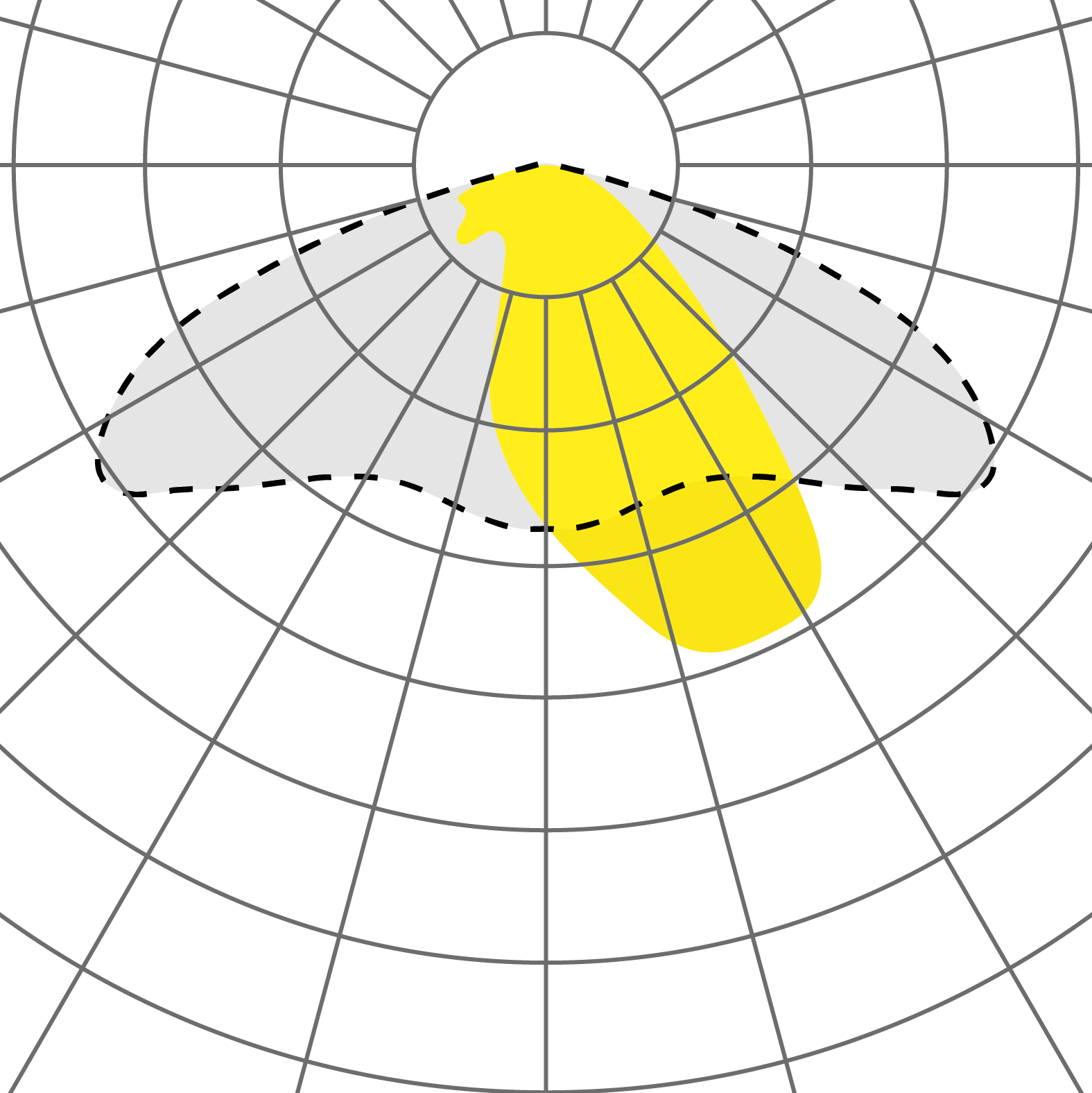

Roadway Optics - Tigua Flood

Included: wall bracket. Power supply with 2P quick connector.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
837411 48W 5835lm 121.50lm/W Road optic wide 65° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837412 95W 11670lm 123lm/W Road optic wide 65° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837413 130W 16141lm 124lm/W Road optic wide 65° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837424 140W 18298lm 131lm/W Road optic wide 65° Extraclear tempered glass 4 mm Standard on-off 4000K N/A
837425 188W 22900lm 122lm/W Road optic wide 65° Extraclear tempered glass 4 mm Standard on-off 4000K N/A

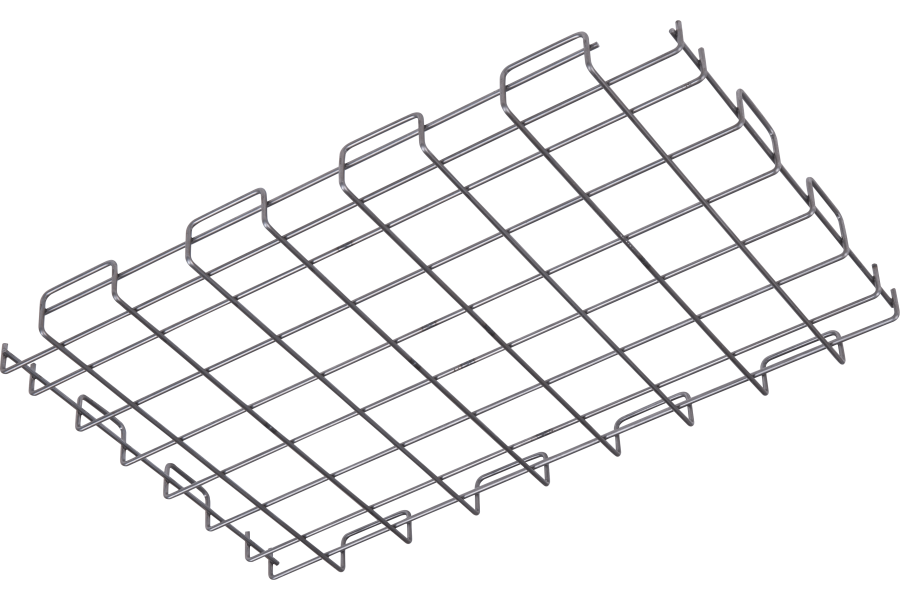

PROTECTION GRID FOR FLOODLIGHTS OF THE TIGUA SERIES

PROTECTION GRID
Part numbers Manufacturing material Description
811911 Stainless steel AISI 304 Protective wire guard

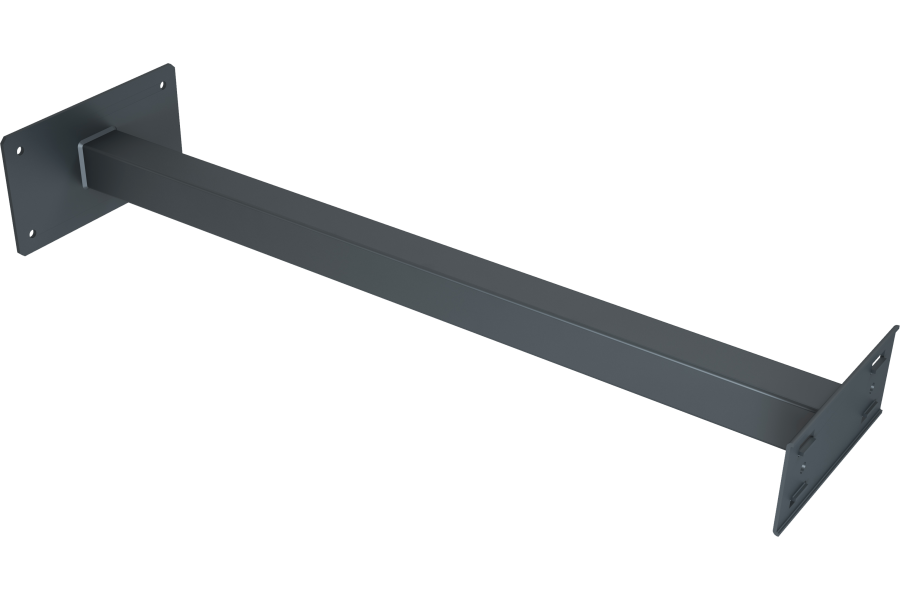

PROJECTING ARM MOUNTING BRACKET 750 MM PROJECTION

PROJECTING ARM MOUNTING BRACKET
Part numbers Manufacturing material Description
811914 Galvanized and painted steel Wall mounting with bracket 750MM

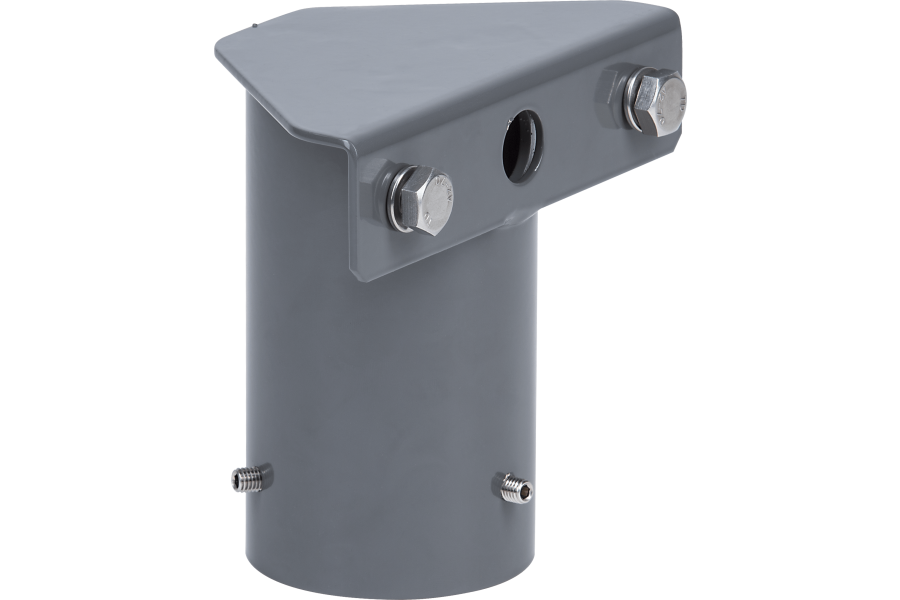

UNIVERSAL MOUNT FOR POLE HEAD INSTALLATION AND POLE PROJECTING ARM BRACKET Ø 60 MM AND Ø 76 MM

UNIVERSAL MOUNT FOR POLE HEAD
Part numbers Manufacturing material Description
811908 Galvanized and painted steel Pole-head mounting 60-76MM

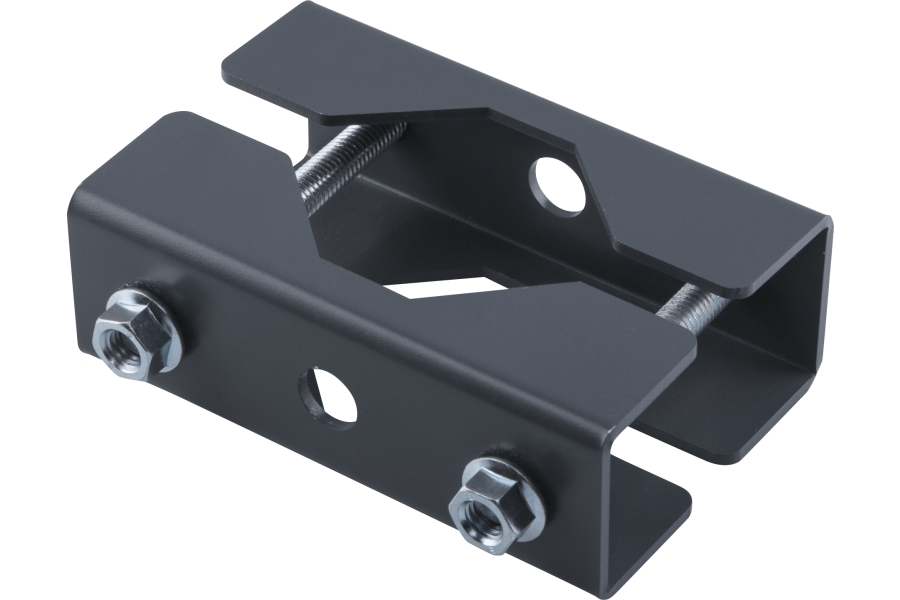

KIT CONSISTING OF COLLAR AND PLATE FOR Ø 60 MM TO Ø 80 MM POLE MOUNTING

KIT CONSISTING OF COLLAR AND PLATE
Part numbers Manufacturing material Description
811912 Galvanized and painted steel Pole "U" mounting with collar

Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.

Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.
