X-TIGUA Tunnel

A die-cast aluminium body with very low copper content, anti-corrosion treatment, and a 4mm thick diffuser in extra-clear tempered glass guarantees maximum durability for this luminaire. It is available in 4 sizes, providing effective output up to 63000 lm. High-power LEDs can maintain luminous flux over a period of more than 110000 hours. The optics are made using non-ageing, UV-resistant PMMA lenses with >90% efficiency and >95% transparency. The range includes 2x permanent optics and 2x reinforcement optics. Furthermore, customised optics are available according to specific project requirements. A wide range of AISI 304 stainless steel accessories is available for hanging the product using products designed to avoid galvanic corrosion.

Product selector Download brochure

IP66

IK08

Technical support

Corrosion Resistant

Flicker free

Energy saving

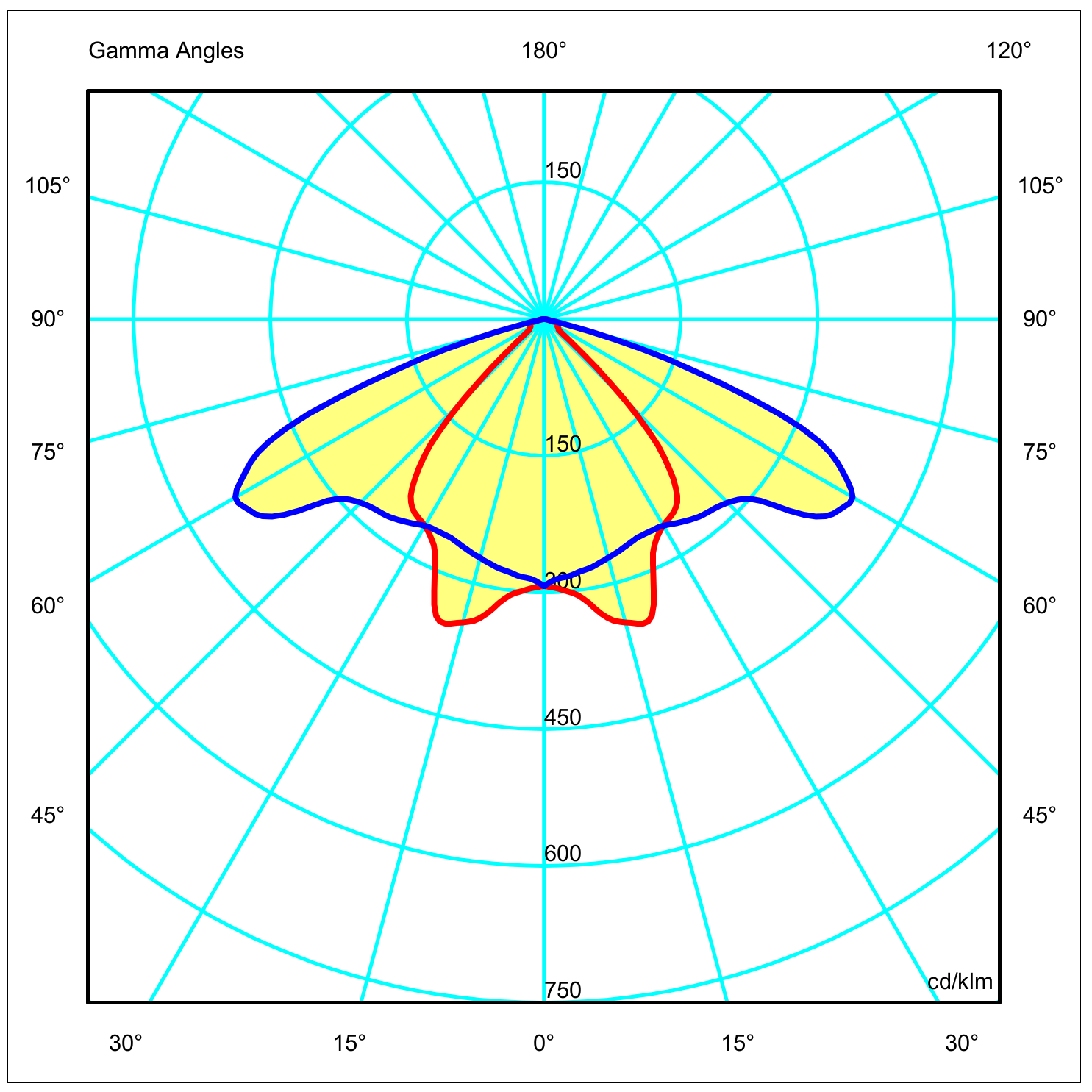

PS3 axially symmetrical and transversally symmetrical

Part numbers	Luminaire power	Output flux	Output efficiency	Optics	Diffuser type	Control system/dimming	Color temperature	Emergency function
811409	75W	9360lm	124.80lm/W	Axial and trans. symm. PS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811415	124W	15600lm	125.80lm/W	Axial and trans. symm. PS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812418	152W	19468lm	127.80lm/W	Axial and trans. symm. PS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812424	203W	25388lm	124.70lm/W	Axial and trans. symm. PS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812436	303W	38220lm	125.80lm/W	Axial and trans. symm. PS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812442	349W	43863lm	125.50lm/W	Axial and trans. symm. PS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812448	397W	49663lm	125lm/W	Axial and trans. symm. PS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812460	507W	63608lm	125.40lm/W	Axial and trans. symm. PS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A

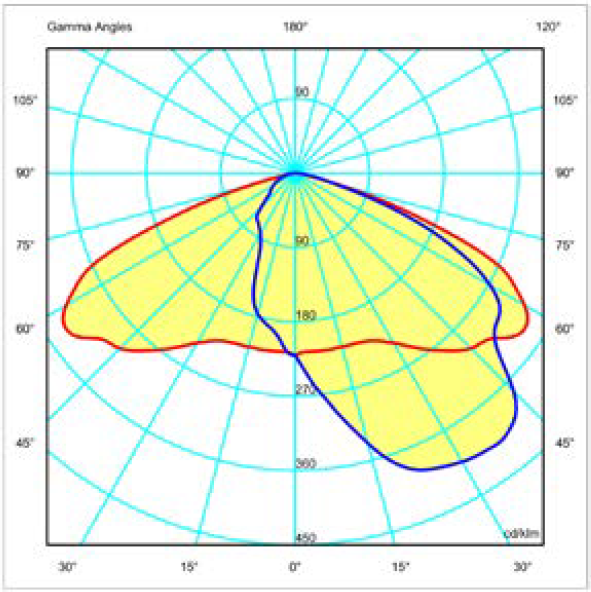

PA3 axially symmetrical and transversally asymmetrical 25° optics

Part numbers	Luminaire power	Output flux	Output efficiency	Optics	Diffuser type	Control system/dimming	Color temperature	Emergency function
811454	35W	4160lm	118.90lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811456	51W	6240lm	122.40lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811458	67W	8320lm	124.20lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811459	75W	9360lm	124.80lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811462	100W	12480lm	124.80lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811464	116W	14560lm	125.50lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811465	124W	15600lm	125.80lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812318	152W	18889lm	124lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812324	203W	24634lm	121lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812330	253W	30904lm	122.10lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812336	303W	37085lm	122.10lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812342	349W	42560lm	121.70lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812348	397W	48188lm	121.30lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812360	507W	61719lm	121.60lm/W	Axial symm. trans. asymm. PA3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A

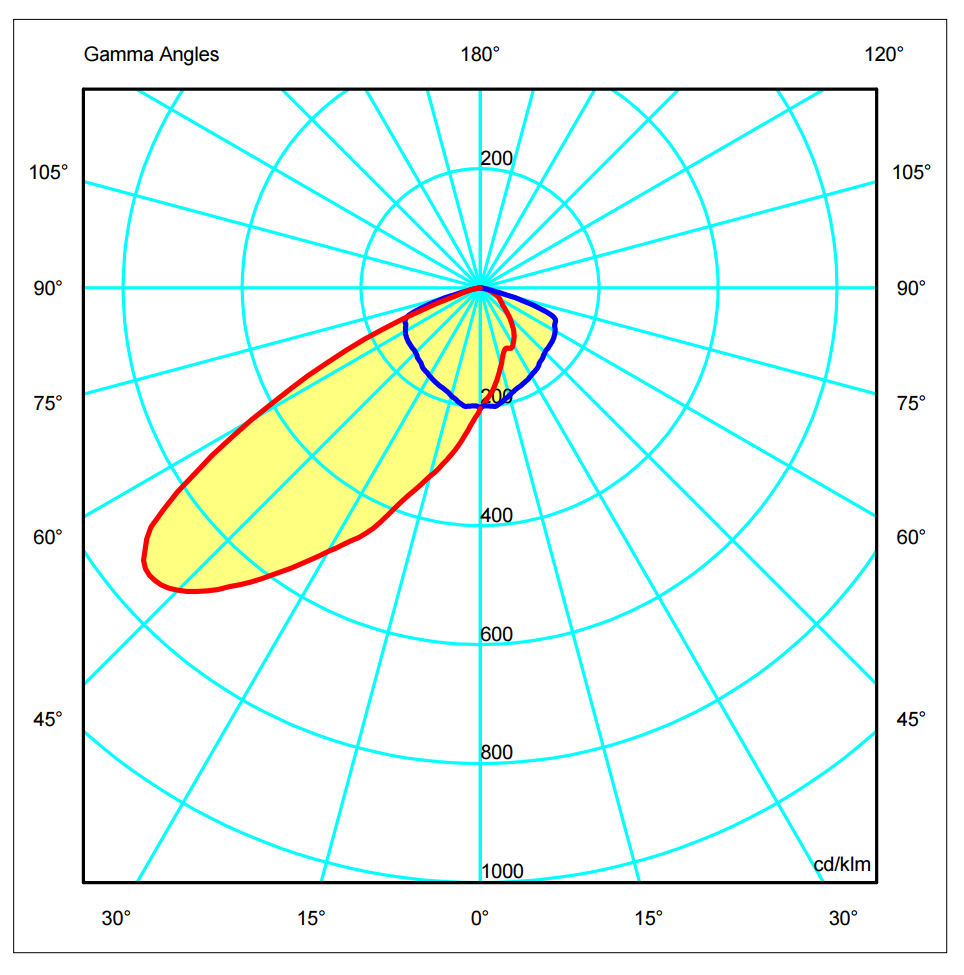

RS1 axial counterflux and transversally symmetrical 52° optics

Part numbers	Luminaire power	Output flux	Output efficiency	Optics	Diffuser type	Control system/dimming	Color temperature	Emergency function
811504	35W	4160lm	118.90lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811506	51W	6240lm	122.30lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811508	67W	8320lm	124lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811509	105W	12643lm	121.40lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811512	100W	12480lm	125lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811514	116W	14560lm	125lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811515	124W	15600lm	125lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812518	152W	19275lm	126lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812524	203W	25137lm	126lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812530	253W	31535lm	126lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812536	303W	37841lm	126lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812542	349W	43429lm	126lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812548	397W	48171lm	126lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812560	507W	69978lm	126lm/W	Axial counterbeam RS1	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A

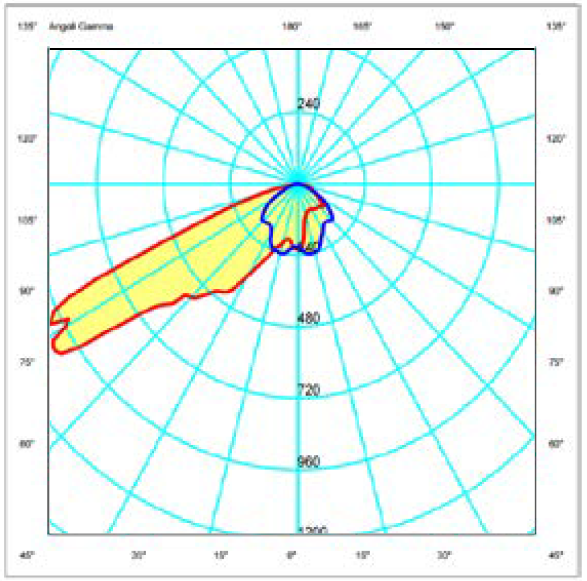

RS3 axial counterflux and transversally symmetrical 62° optics

Part numbers	Luminaire power	Output flux	Output efficiency	Optics	Diffuser type	Control system/dimming	Color temperature	Emergency function
811654	35W	4160lm	118.90lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811656	51W	6240lm	122.40lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811658	67W	8320lm	124.20lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811659	75W	9360lm	124.80lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811662	100W	12480lm	124.80lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811664	116W	14560lm	125.50lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
811665	124W	15600lm	125.80lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812618	152W	18311lm	120.20lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812624	203W	23880lm	117.30lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812630	253W	29958lm	118.30lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812642	349W	41257lm	118lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812648	397W	46713lm	117.60lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A
812660	507W	59829lm	117.90lm/W	Axial counterbeam RS3	Extraclear tempered glass 4 mm	Remote control on request	4000K	N/A

Accessories

X-TIGUA ADJUSTABLE BRACKET FOR MOUNTING ON DOUBLE CHAIN

ADJUSTABLE BRACKET FOR MOUNTING ON DOUBLE CHAIN

Part numbers	Manufacturing material	Description
819994	Steel	X-TIGUA SERIES 0-90 DEGREE ADJUSTABLE BRACKET FOR DOUBLE CHAIN SIZE M LUMINAIRE
819995	Steel	X-TIGUA SERIES 0-90 DEGREE ADJUSTABLE BRACKET FOR DOUBLE CHAIN SIZE L LUMINAIRE
