Rino EX

Watertight LED light fi xtures in AISI 304 stainless steel for applications in explosion hazardous areas as defined in ATEX 2014/34/EU Directive. The body is made of a single piece of AISI 304 stainless steel or galvanised steel, with no welded joints. The IP66 rating guaranteed by a reinforced gasket in anti-aging VMQ silicone elastomer, makes the RINO-EX light fixtures suitable for installations in environments with the presence of oxidising chemicals, salt solutions, acids and motor and vegetable oils. The diffuser in tempered glass is fixed to the body thanks to a system of AISI 304 stainless steel fi xing hooks. The light fixture is equipped with M8 threaded eyebolts thatare screwed to the body with no need to open the device. resinated on-off driver suitable for installations in potentially explosive environments. The light fi xture is certifi ed to withstand temperatures from -30 °C to +45 °C.

Download brochure

IK09

IP66

Technical support

Corrosion Resistant

Flicker free

Energy saving

Symmetrical 110° extra wide beam optics - RINO ATEX

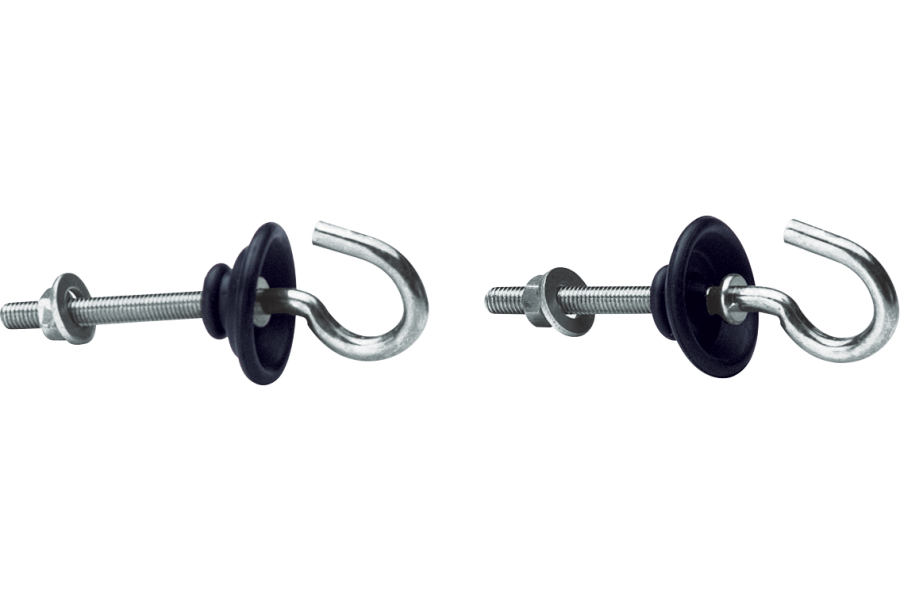

Included: pair of AISI 304 stainless steel eyebolts for pendant mounting.

The stated flux and power values maybe be subject to a +/- 7% tolerance.

Part numbers	Luminaire power	Output flux	Output efficiency	Optics	Diffuser type	Control system/dimming	Color temperature	Emergency function
821172EX	24W	3400lm	148lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
821272EX	36W	5180lm	144lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
821372EX	57W	7870lm	140lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
821472EX	71W	9623lm	136lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
821270EX	36W	5180lm	144lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 1h recharge 24h
821470EX	71W	9623lm	136lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 1h recharge 24h
821273EX	36W	5180lm	144lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 3h recharge 24h
821473EX	71W	9623lm	136lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 3h recharge 24h
821572EX	46W	6831lm	145lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
821770EX	86W	12353lm	144lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 1h recharge 24h
821673EX	71W	9736lm	137lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 3h recharge 24h
821670EX	71W	9736lm	137lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 1h recharge 24h
821770EX	86W	12353lm	144lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 1h recharge 24h
821773EX	86W	12353lm	144lm/W	Symmetrical wide 110°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 3h recharge 24h

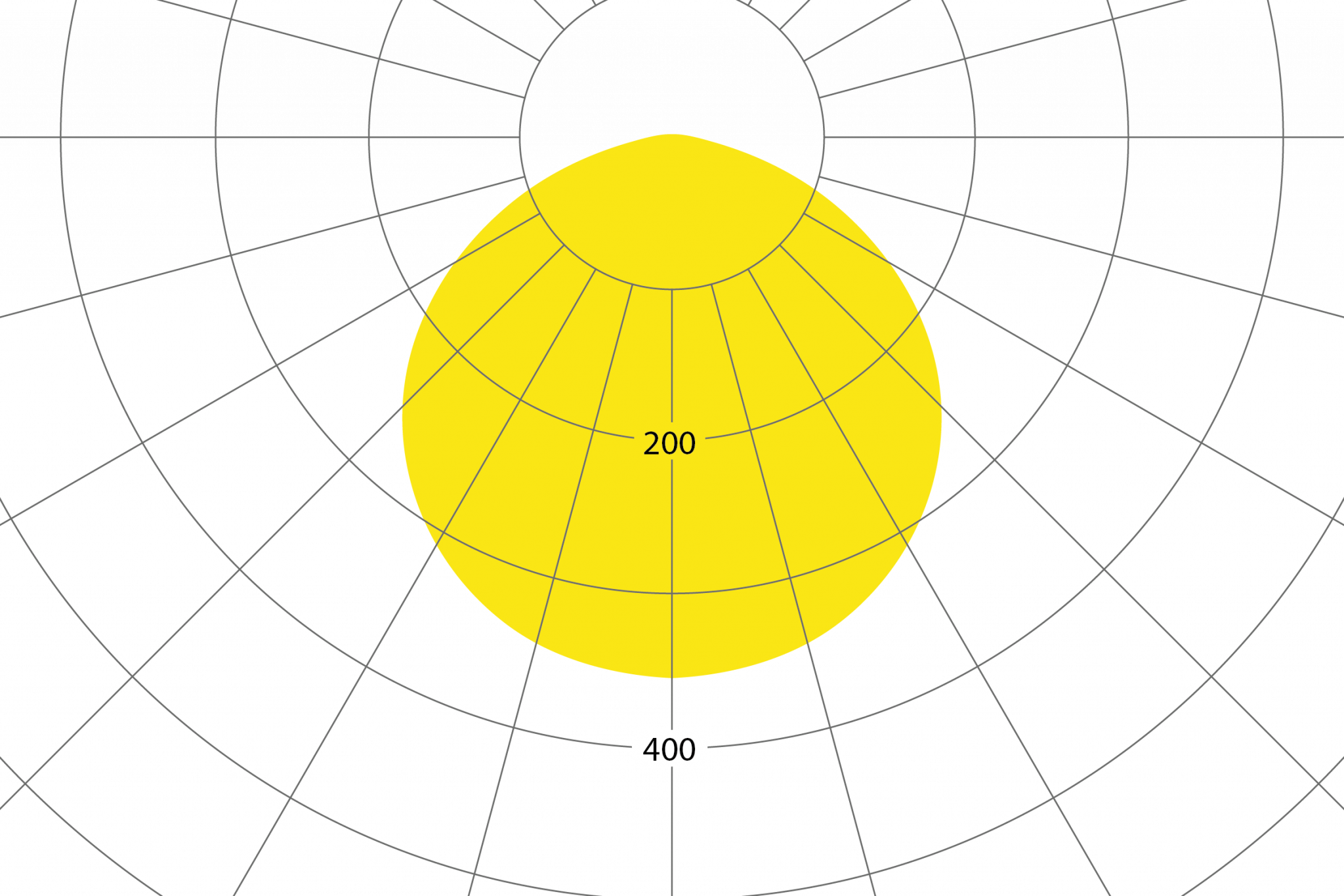

88° symmetrical optics - RINO ATEX

Included: pair of AISI 304 stainless steel eyebolts for pendant mounting.

The stated flux and power values maybe be subject to a +/- 7% tolerance.

Part numbers	Luminaire power	Output flux	Output efficiency	Optics	Diffuser type	Control system/dimming	Color temperature	Emergency function
821192EX	26W	3562lm	137lm/W	Symmmetrical wide comfort 88°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
821292EX	38W	5130lm	135lm/W	Symmmetrical wide comfort 88°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
821290EX	38W	5130lm	135lm/W	Symmmetrical wide comfort 88°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 1h recharge 24h
821390EX	52W	7072lm	136lm/W	Symmmetrical wide comfort 88°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 1h recharge 24h
821490EX	75W	10050lm	134lm/W	Symmmetrical wide comfort 88°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 1h recharge 24h
821193EX	26W	3562lm	137lm/W	Symmmetrical wide comfort 88°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 3h recharge 24h
821293EX	38W	5130lm	135lm/W	Symmmetrical wide comfort 88°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 3h recharge 24h
821393EX	52W	7072lm	136lm/W	Symmmetrical wide comfort 88°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 3h recharge 24h
821493EX	75W	10050lm	134lm/W	Symmmetrical wide comfort 88°	Extraclear tempered glass 5 mm	Standard on-off	4000K	Internal battery duration 3h recharge 24h

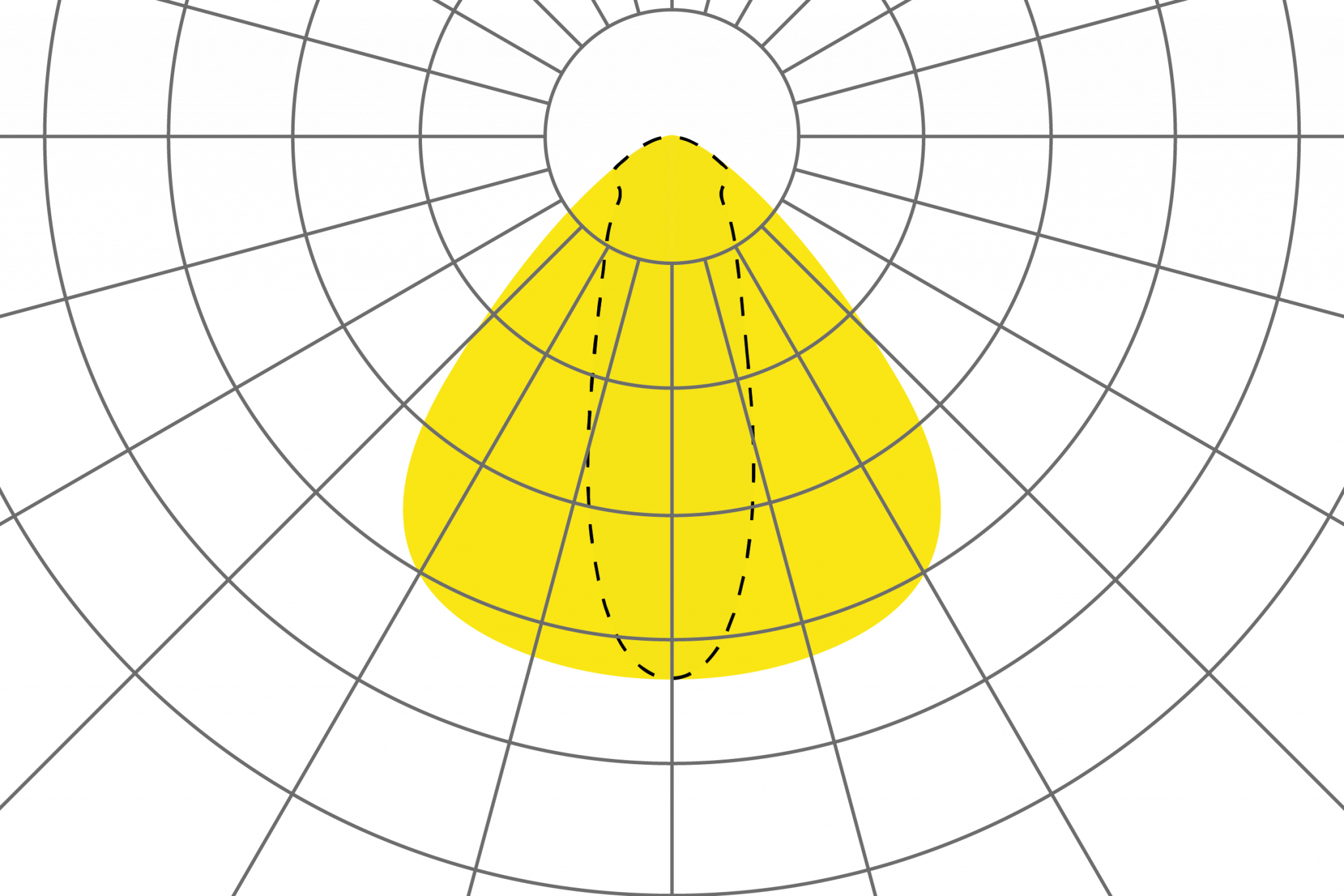

30°x 90° Narrow Beam Optics - RINO ATEX

Included: pair of AISI 304 stainless steel eyebolts for pendant mounting.

The stated flux and power values maybe be subject to a +/- 7% tolerance.

Part numbers	Luminaire power	Output flux	Output efficiency	Optics	Diffuser type	Control system/dimming	Color temperature	Emergency function
820392EX	52W	6500lm	125lm/W	Simmetrica concentrante comfort 30°X90°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
820492EX	75W	9525lm	127lm/W	Simmetrica concentrante comfort 30°X90°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A

Painted Galvanized Steel 30°x90° Narrow Beam Optics - RINO ATEX

Included: pair of AISI 304 stainless steel eyebolts for pendant mounting.

The stated flux and power values maybe be subject to a +/- 7% tolerance.

Part numbers	Luminaire power	Output flux	Output efficiency	Optics	Diffuser type	Control system/dimming	Color temperature	Emergency function
840392EX	52W	6500lm	125lm/W	Simmetrica concentrante comfort 30°X90°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
840492EX	75W	9525lm	127lm/W	Simmetrica concentrante comfort 30°X90°	Extraclear tempered glass 5 mm	Standard on-off	4000K	N/A
