TIGUA Suspension ATEX

The Tigua ATEX is the new line of ATEX light fixtures for zones 1,2, 21 and 22. Tigua ATEX is equipped with a high dissipation thermal management system that keeps the semiconductors unaltered over time. The input and connection to the terminal board is via ‘Ex e’ cable gland without having to make any insulation. The power supply electronics have been made in compliance with the EN 60079-18 Standard with ‘Ex mb’ protection mode (encapsulation). Thanks to the comfort beam optics available areas with combustible dusts and flammable gases can be illuminated in the best possible way.

Technical support
Technical support
Corrosion Resistant
Corrosion Resistant
Flicker free
Flicker free
Risk group zero
Risk group zero
Energy saving
Energy saving
Product selector

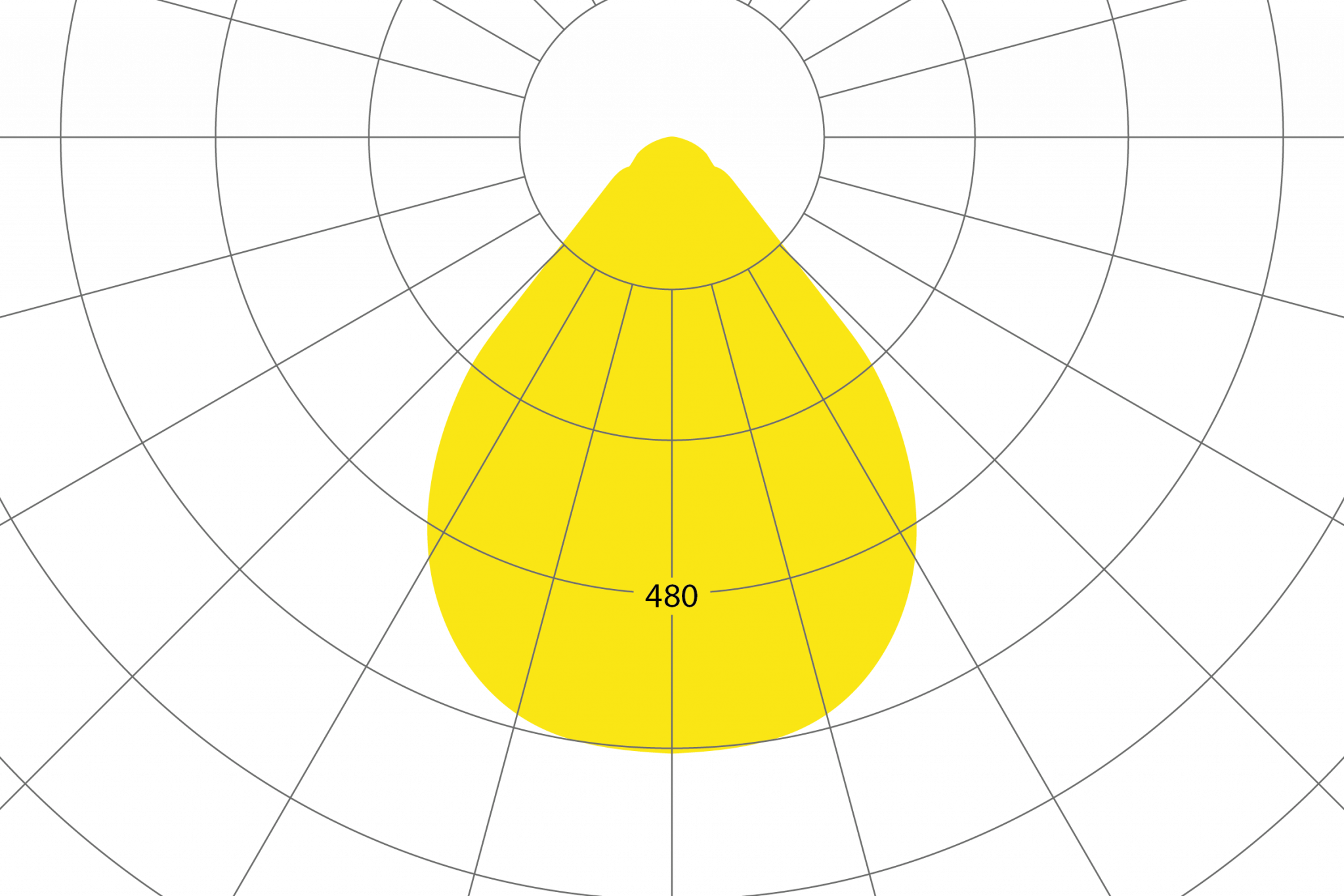

Symmetrical 81° extra wide beam - Tigua Suspension ATEX

Included: double chain bracket and busbar

Reccommended installtion height: between 4m & 7m.

The stated flux and power values have tolerances of +/- 7%.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
817031EX 47W 5808lm 115lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
817032EX 73W 8280lm 115lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
817033EX 89W 11615lm 115lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI
817034EX 141W 16560lm 115lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS/DALI

Tigua Emergency Kit

Emergency Kit

Part numbers Manufacturing material Description
811923 Aluminum alloy SERIES TIGUA Emergency KIT 1H
811924 Aluminum alloy SERIES TIGUA Emergency KIT 3H

Tigua 0 - 90° ADJUSTABLE BRACKET FOR MOUNTING ON DOUBLE CHAIN

0 - 90° ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
811919 Steel Adjustable double chain suspension

Tigua KIT WITH BRACKET FOR CEILING MOUNTING

KIT WITH BRACKET FOR CEILING MOUNTING

Part numbers Manufacturing material Description
811916 Steel Ceiling mounting KIT

Tigua SET OF BRACKET FOR HORIZONTAL POLE MOUNTING Ø 60 MM

SET OF BRACKET FOR HORIZONTAL POLE MOUNTING Ø 60 MM
Part numbers Manufacturing material Description
811920 Steel Horizontal pole mounting 60mm

Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.

Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.
