META 150 ATEX

The META150-EX series is the new line of ATEX light fixtures for zones 2, 21 and 22 with an efficiency up to 150 Im/W. This efficacy allows you to save over 70% on energy consumption. META150-EX is equipped with a high dissipation thermal management system that keeps the semiconductors unaltered over time. The input and connection to the terminal board is via ‘Ex e’ cable gland without having to make any insulation. The power supply electronics have been made in compliance with the EN 60079-18 Standard with ‘Ex mb’ protection mode (encapsulation). Thanks to the comfort beam optics available areas with combustible dusts and flammable gases can be illuminated in the best possible way.

IP66/IP67
IP66/IP67
1-10V dimmable
1-10V dimmable
Technical support
Technical support
Corrosion Resistant
Corrosion Resistant
Flicker free
Flicker free
Energy saving
Energy saving
Product selector

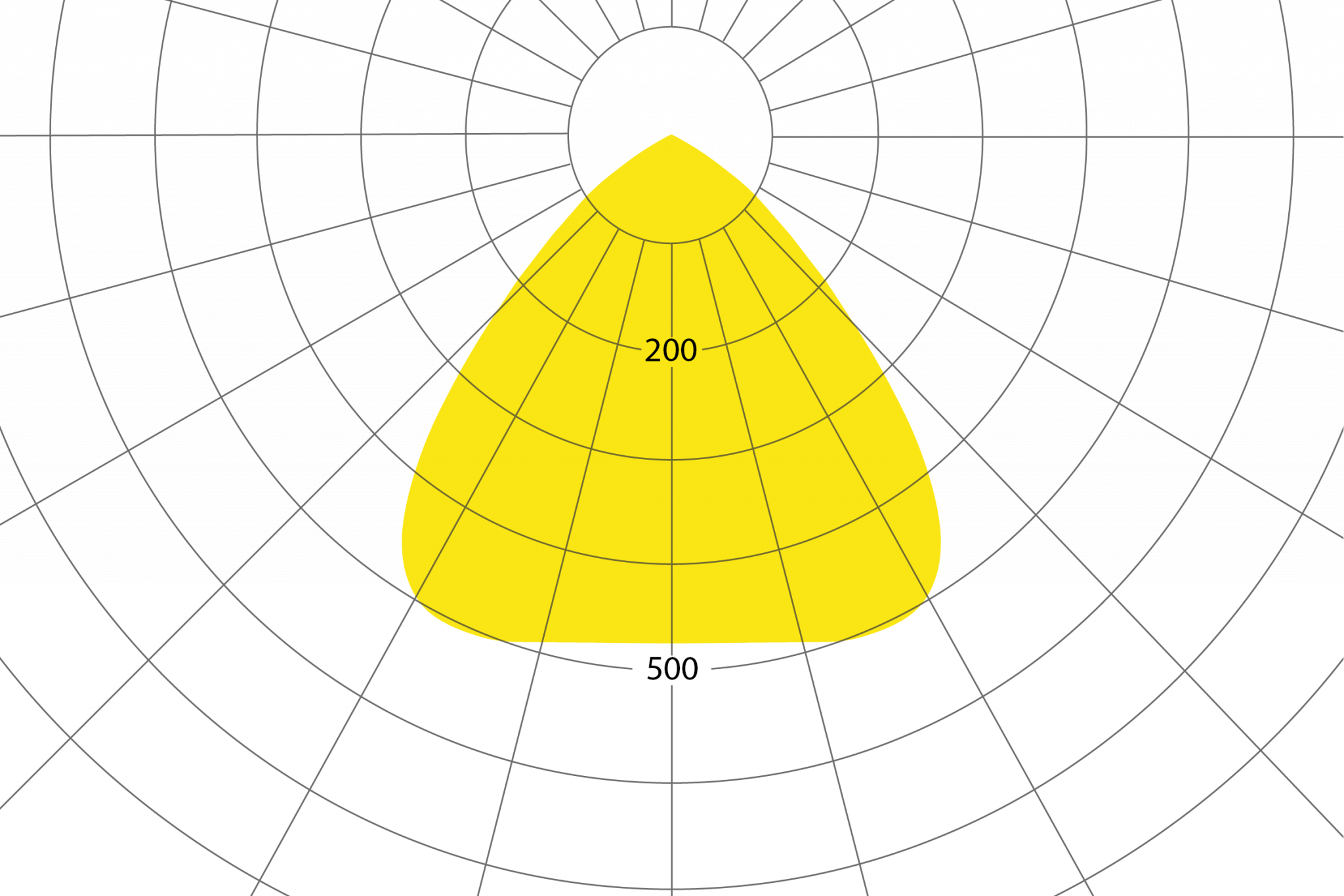

90° Comfort symmetrical optics - ATEX

Included: quick connection for pendant mounting.

Recommended installation height: between 5m & 8m.

The indicated flux and power values have tolerances of +/- 7%.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810430EX 60W 8748lm 145.80lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm Standard on-off 4000K Obtainable with UPS
810440EX 101W 14356lm 148lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS
810450EX 124.50W 16576lm 148lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS
810460EX 148W 19832lm 148lm/W Symmmetrical wide comfort 88° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS

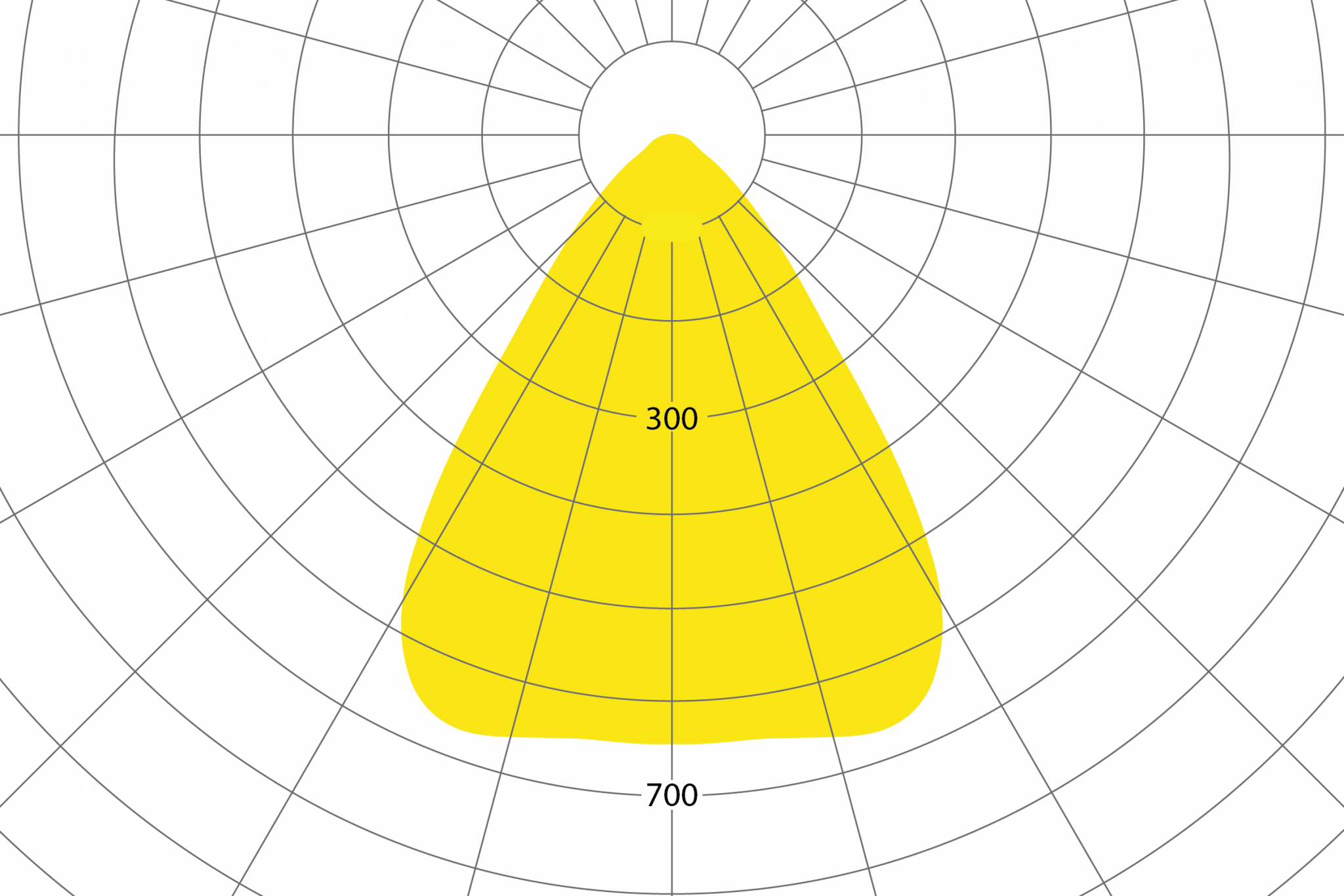

75° Medium symmetric optics - ATEX

Included: quick connection for pendant mounting.

Recommended installation height: between 5m & 8m.

The indicated flux and power values have tolerances of +/- 7%.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
810431EX 61W 8580lm 143lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm Standard on-off 4000K Obtainable with UPS
810441EX 101W 14065lm 145lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS
810451EX 124.50W 16352lm 146lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS
810461EX 148W 19564lm 146lm/W Symmetrical medium beam 75° Extraclear tempered glass 4 mm DALI 4000K Obtainable with UPS

Emergency Kit for META

Emergency Kit

Part numbers Manufacturing material Description
810992 Palazzoli Thermosetting GRP ENCLOSURE FOR 1H EMERGENCY KIT
810991 Aluminum alloy ENCLOSURE FOR 3H EMERGENCY KIT

PAIR OF BRACKETS FOR MOUNTING ON DOUBLE CHAIN AND BUSBAR

PAIR OF BRACKETS
Part numbers Manufacturing material Description
810997 Steel KIT FOR DOUBLE CHAIN OR BUSBARS INSTALLATION

0 - 90° ADJUSTABLE BRACKET FOR MOUNTING ON DOUBLE CHAIN

0 - 90° ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
810996 Steel ADJUSTABLE KIT FOR SUSPENDD INSTALLATION

KIT WITH BRACKET FOR CEILING MOUNTING

KIT WITH BRACKET
Part numbers Manufacturing material Description
810998 Steel KIT FOR CEILING INSTALLATION

SET OF BRACKETS FOR HORIZONTAL POLE MOUNTING Ø 60 MM

SET OF BRACKETS FOR HORIZONTAL POLE MOUNTING Ø 60 MM
Part numbers Manufacturing material Description
810995 Steel PAIR OF COLLARS FOR POLE MOUNTING

ADJUSTABLE BRACKET FOR WALL-MOUNTING POLE MOUNTING AND LIGHT TOWER MOUNTING

ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
810999 Steel ADJUSTABLE SUPPORT IN ZINC STEEL

0 - 90° ADJUSTABLE BRACKET FOR MOUNTING ON CATENARY CABLE

0 - 90° ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
810994 Steel KIT FOR WIRES SUSPENDED INSTALLATION

PROTECTION GUARD

PROTECTION GUARD
Part numbers Manufacturing material Description
810993 Stainless steel AISI 304 PROTECTION GRILL IN ZINC STEEL

Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.

Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.

Logo Lumicon
Logo Lia
Warranty
CESI
Certificate CESI
RINA
Certificate RINA
ATEX
Certificate ATEX
IECex
Certificate IECex
NEMKO
Certificate NEMKO
QL
Certificate QL

Videos

LDT File Data Sheet
