X-TIGUA FLOOD ATEX
Technical support
Technical support
Flicker free
Flicker free
Risk group zero
Risk group zero
Energy saving
Energy saving
Product selector

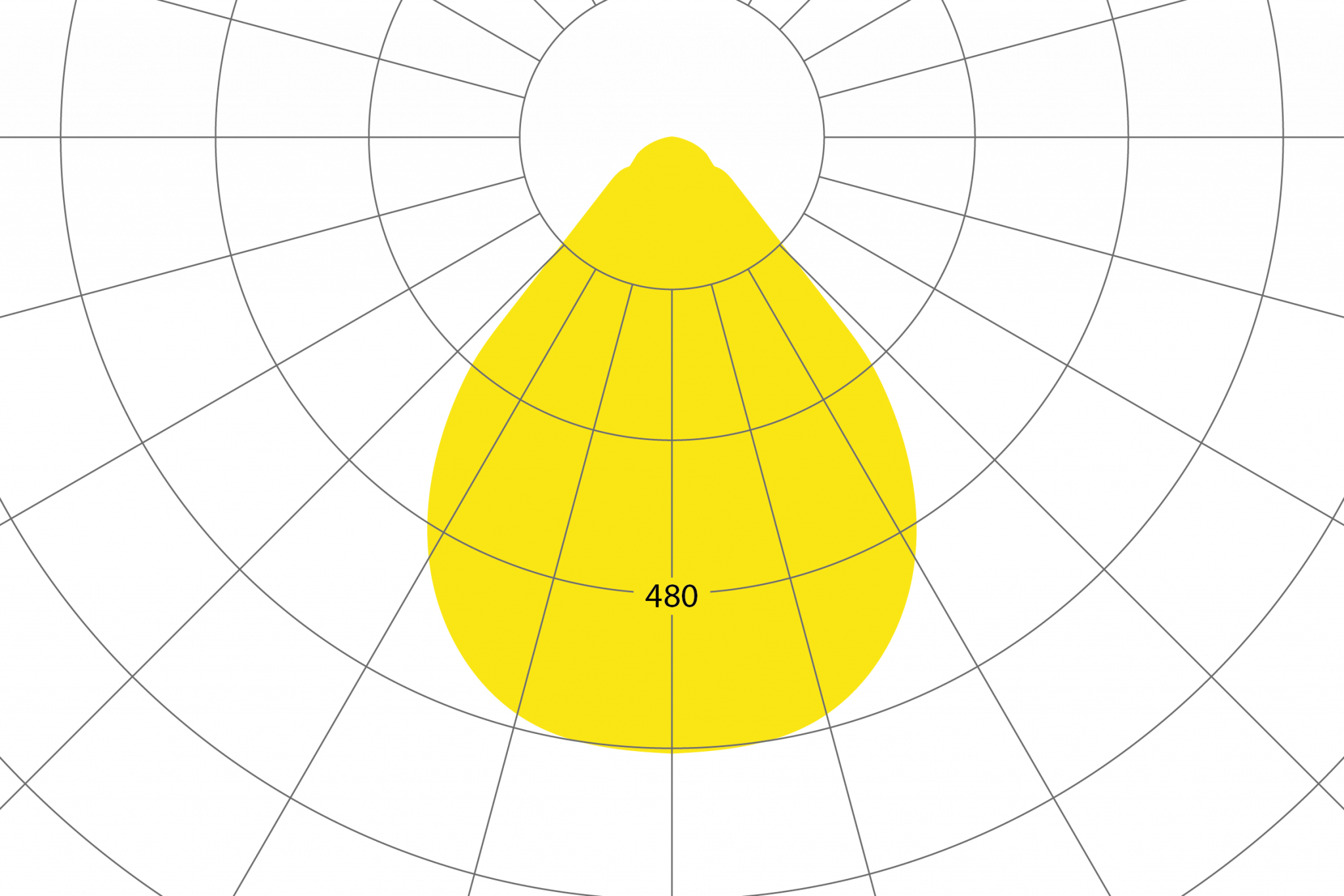

Symmetrical 81° extra wide beam optics - X-Tigua Flood ATEX

Included: wall bracket.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
818021EX 139W 17365 lm 115 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
818022EX 214W 24840 lm 115 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
818023EX 181W 23115 lm 115 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
818024EX 285W 33120 lm 115 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI

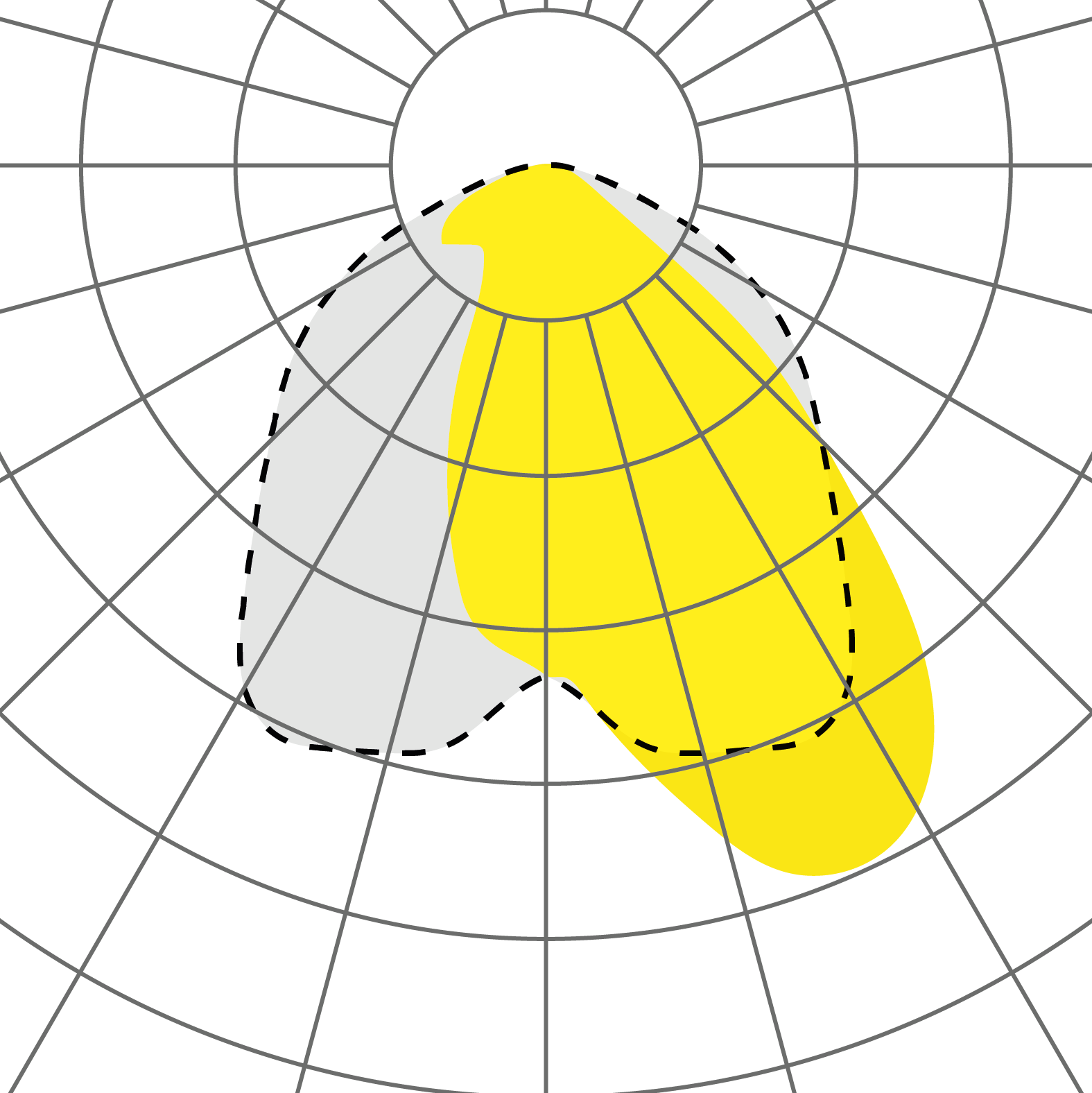

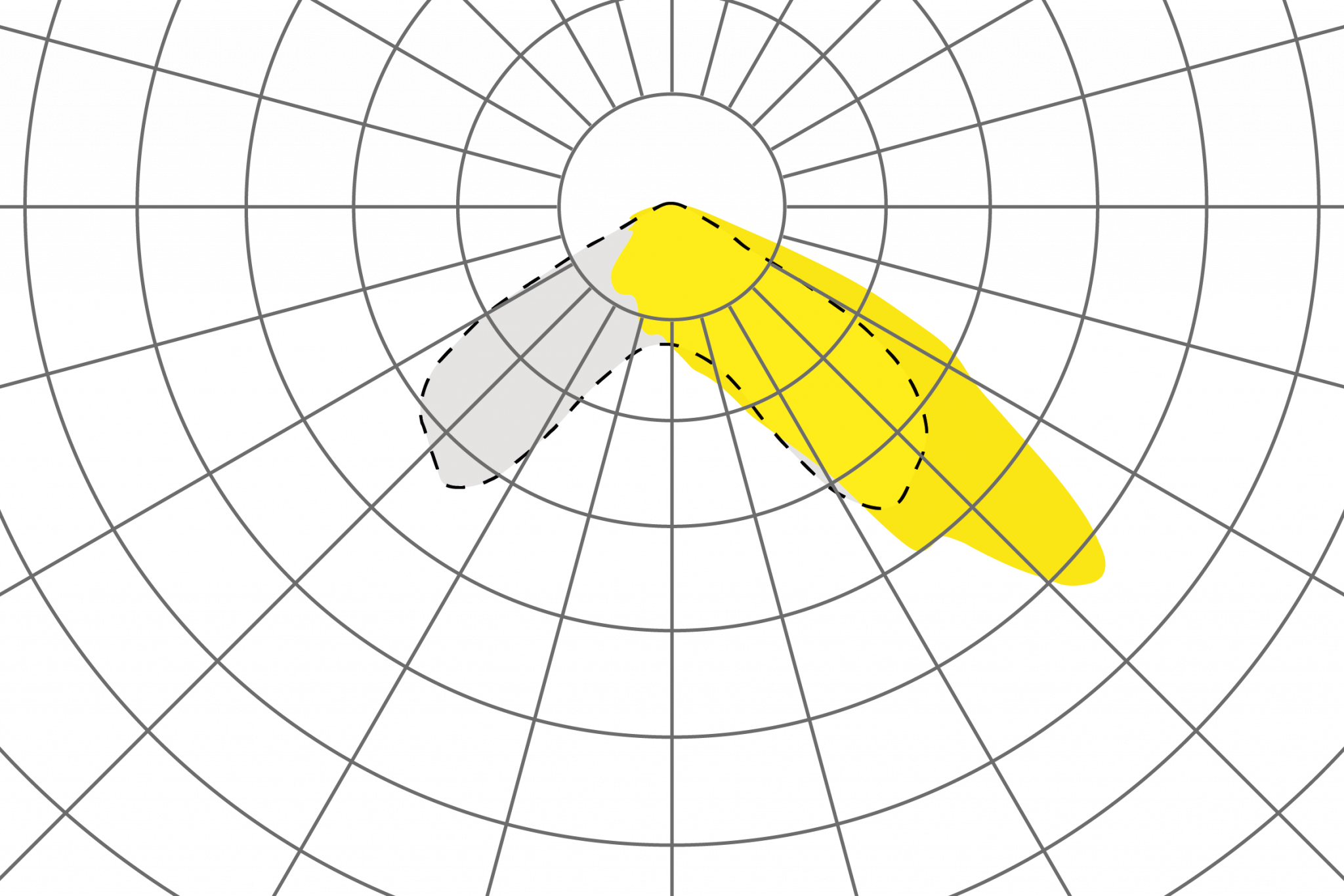

Asymmetrical 50° extra wide beam optics - X-Tigua Flood ATEX

Included: wall bracket.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
818221EX 139W 17365 lm 115 lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
818222EX 214W 24840 lm 115 lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
818223EX 181W 23115 lm 115 lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
818224EX 285W 33120 lm 115 lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI

Symmetrical 81° extra wide beam optics - X-Tigua Flood ATEX 3G - 2D

Included: wall bracket.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
838021EX 139W 19630 lm 130 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
838022EX 214W 27648 lm 128 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
838023EX 181W 26208 lm 130 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
838024EX 285W 36864 lm 128 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI

Asymmetrical 23° extra wide beam optics - X-Tigua Flood ATEX

Included: wall bracket.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
838221EX 139W 19630 lm 130 lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
838222EX 214W 27648 lm 128 lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
838223EX 181W 26208 lm 130 lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
838224EX 285W 36864 lm 128 lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI

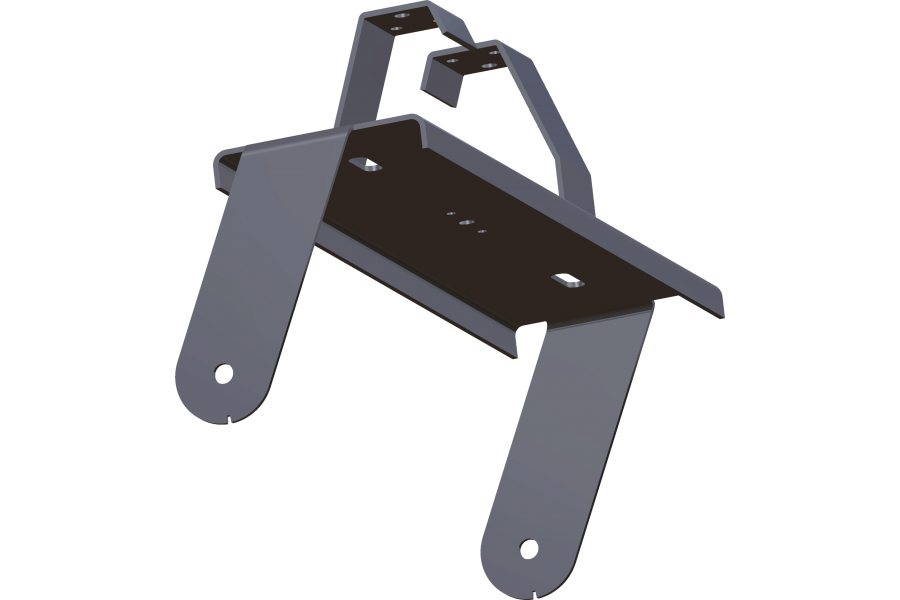

X-TIGUA ADJUSTABLE BRACKET FOR MOUNTING ON DOUBLE CHAIN

ADJUSTABLE BRACKET FOR MOUNTING ON DOUBLE CHAIN
Part numbers Manufacturing material Description
819994 Steel X-TIGUA SERIES 0-90 DEGREE ADJUSTABLE BRACKET FOR DOUBLE CHAIN SIZE M LUMINAIRE
819995 Steel X-TIGUA SERIES 0-90 DEGREE ADJUSTABLE BRACKET FOR DOUBLE CHAIN SIZE L LUMINAIRE

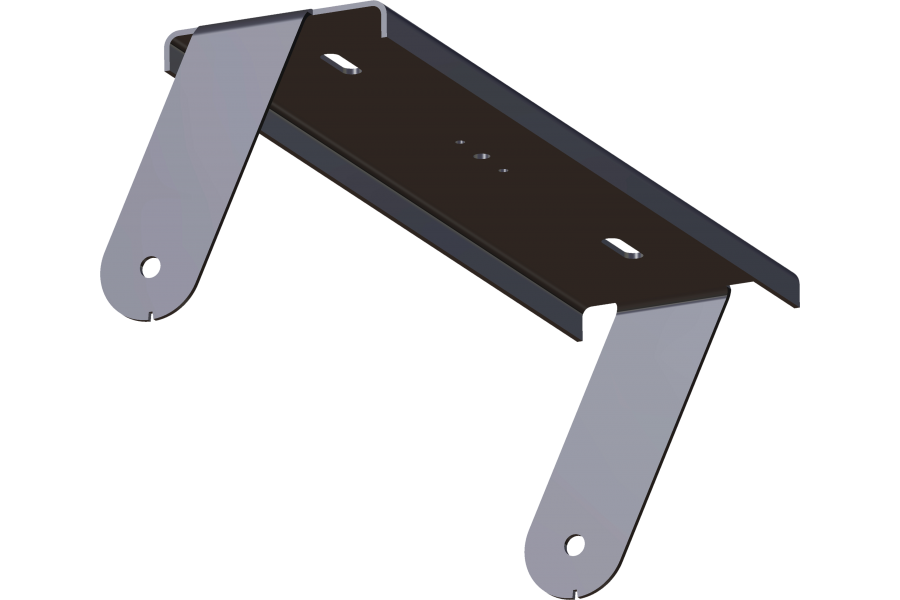

X-Tigua KIT WITH BRACKET FOR CEILING MOUNTING

KIT WITH BRACKET FOR CEILING MOUNTING
Part numbers Manufacturing material Description
819996 Steel X-TIGUA KIT FISSAGGIO A PLAFONE TGL 1
819997 Steel X-TIGUA KIT FISSAGGIO A PLAFONE TGL 2

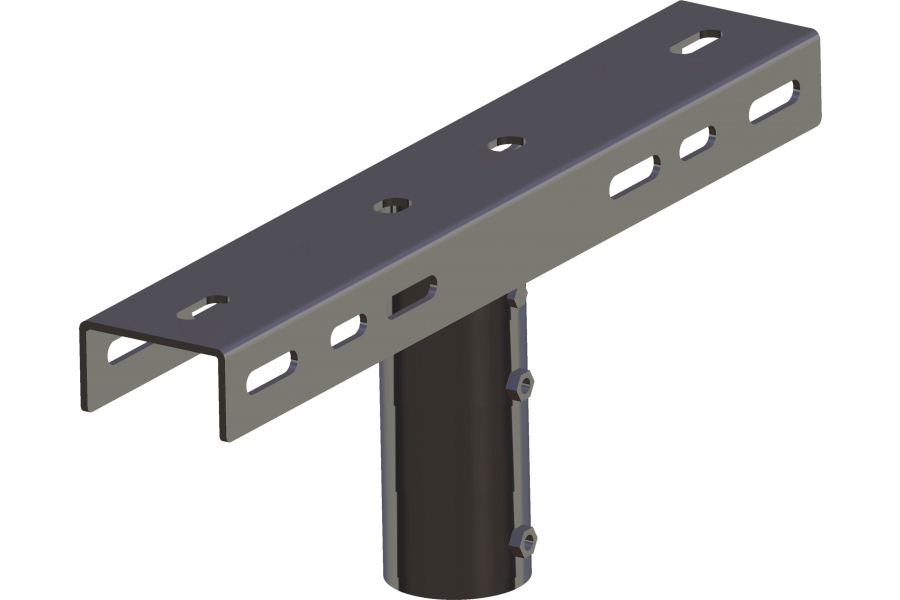

X-Tigua Flood CROSS BEAM FOR POLE-TOP MOUNTING 1 OR 2 X-TIGUA FLOODLIGHTS

CROSS BEAM FOR POLE-TOP MOUNTING 1 OR 2 X-TIGUA FLOODLIGHTS
Part numbers Manufacturing material Description
818990 Steel X-TIGUA TRAVERSA 1 PROIETTORE

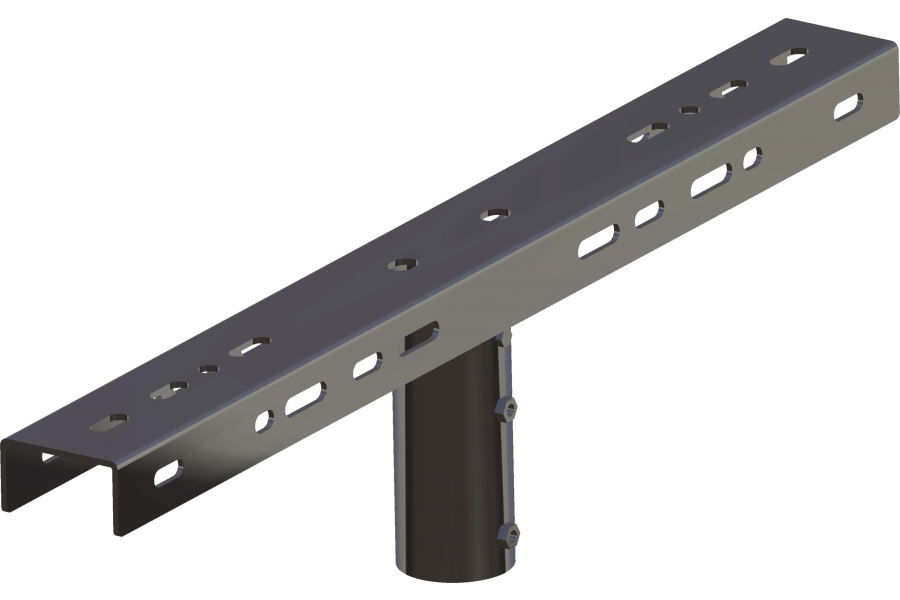

X-Tigua Flood CROSS BEAM FOR POLE-TOP MOUNTING 2 OR 4 X-TIGUA FLOODLIGHTS

CROSS BEAM FOR POLE-TOP MOUNTING 2 OR 4 X-TIGUA FLOODLIGHTS
Part numbers Manufacturing material Description
818991 Steel X-TIGUA TRAVERSA 2 TAGLIA 2/4 TAGLIA 1

Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.

Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.
