TIGUA FLOOD ATEX
Technical support
Technical support
Corrosion Resistant
Corrosion Resistant
Flicker free
Flicker free
Energy saving
Energy saving
Product selector

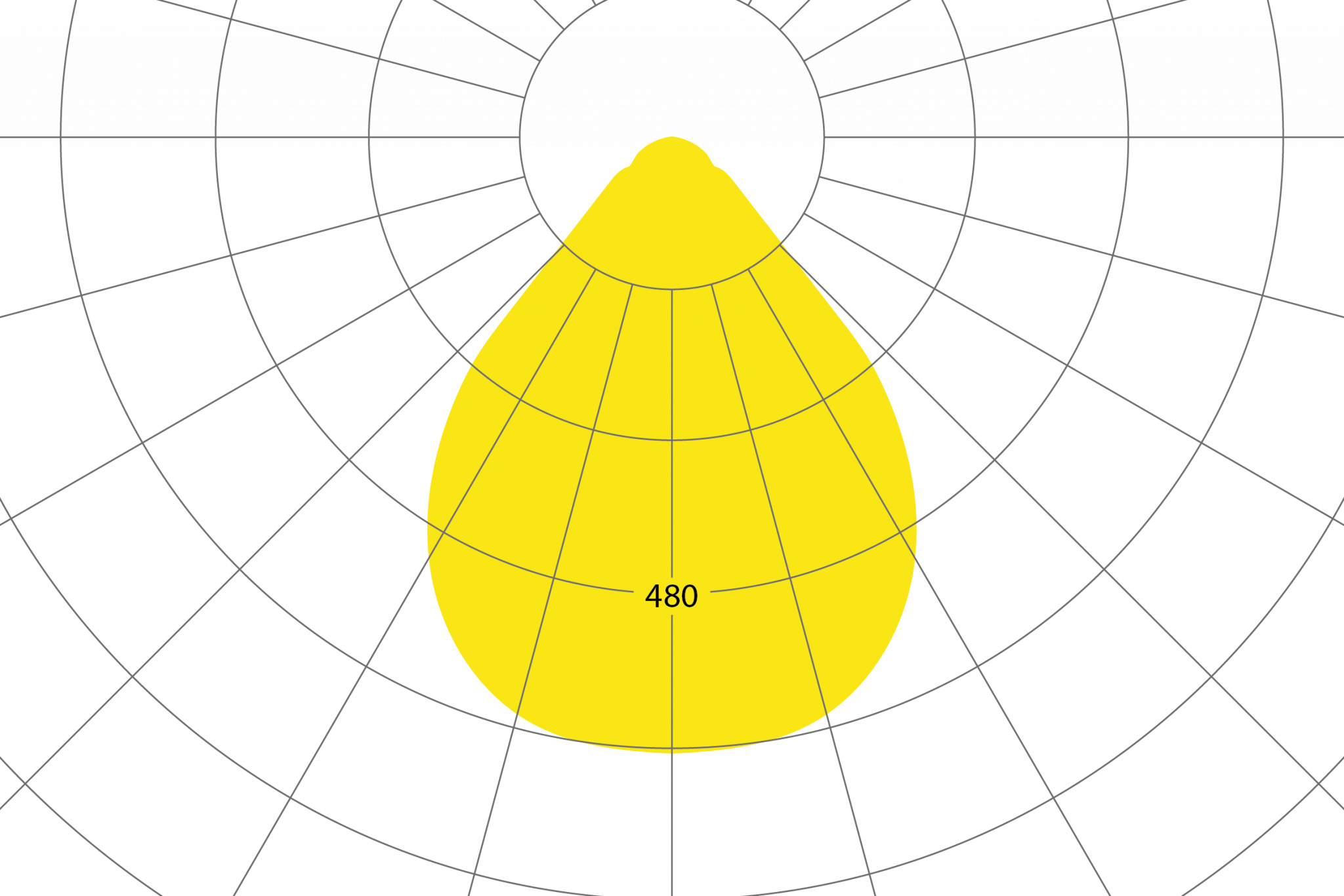

Symmetrical 81° extra wide beam optics - Tigua Flood ATEX

Included: wall bracket.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
817021EX 47W 5808 lm 115 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
817022EX 73W 8280 lm 115 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
817023EX 89W 11615 lm 115 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
817024EX 141W 16560 lm 115 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI

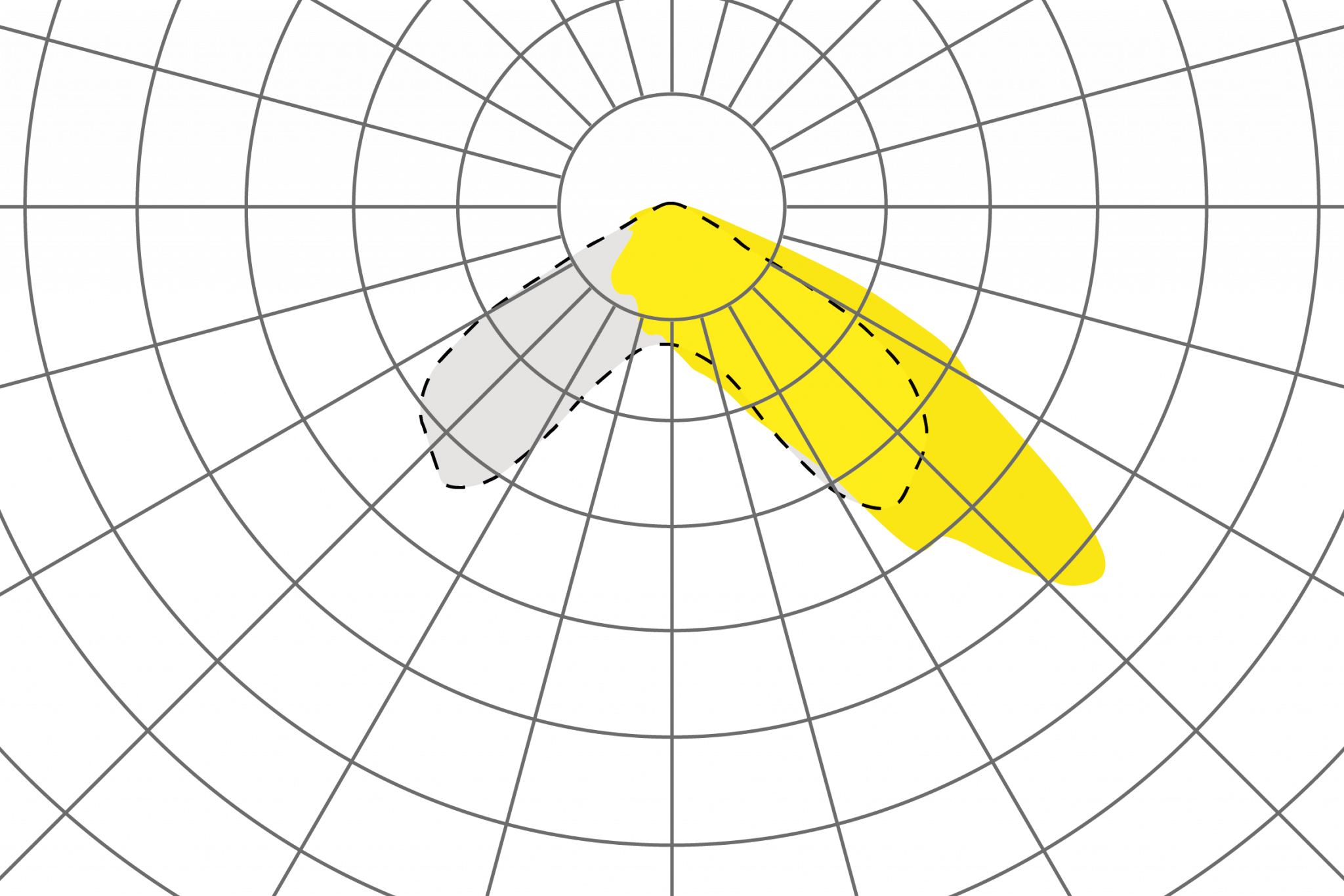

Asymmetrical 50° extra wide beam optics - Tigua Flood Atex

Included: wall bracket.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
817221EX 47W 5808 lm 115 lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
817222EX 73W 8280 lm 115 lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
817223EX 89W 11615 lm 115 lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
817224EX 141W 16560 lm 115 lm/W Asymmetric wide 50° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI

Symmetrical 81° extra wide beam optics - Tigua Flood ATEX 3G - 2D

Included: wall bracket.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
837021EX 47W 6312 lm 125 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
837022EX 73W 9000 lm 125 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
837023EX 89W 12625 lm 125 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
837024EX 141W 18000 lm 125 lm/W Symmetrical wide comfort 81° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI

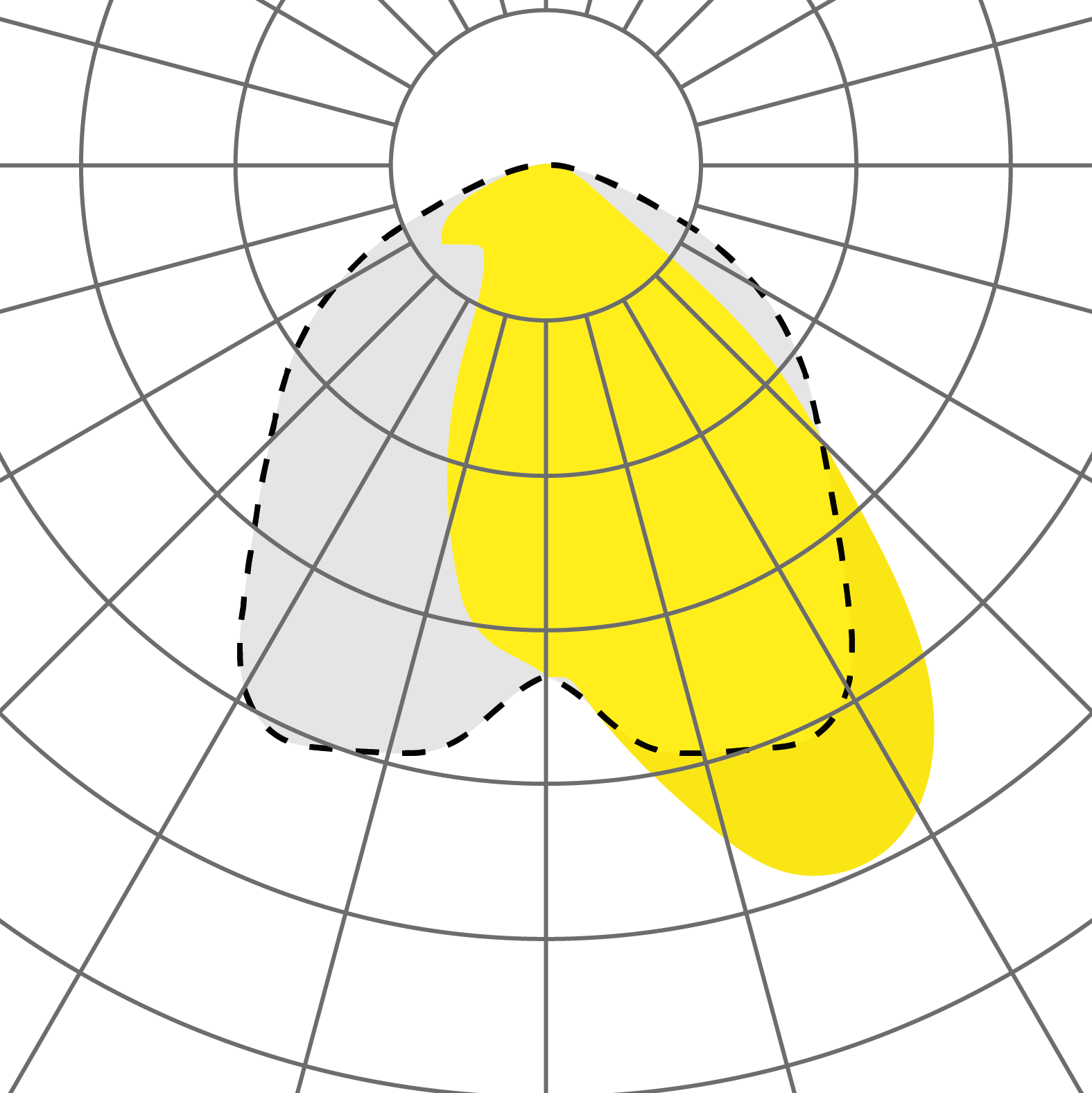

Asymmetrical 23° extra wide beam optics - Tigua Flood ATEX

Included: wall bracket.

The stated flux and power values may be subject to a +/- 7% tolerance.

Part numbers Luminaire power Output flux Output efficiency Optics Diffuser type Control system/dimming Color temperature Emergency function
837221EX 47W 6312 lm 125 lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
837222EX 73W 9000 lm 125 lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
837223EX 89W 12625 lm 125 lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI
837224EX 141W 18000 lm 125 lm/W Asymmetric wide 23° Extraclear tempered glass 4 mm DALI 4000 K Obtainable with UPS/DALI

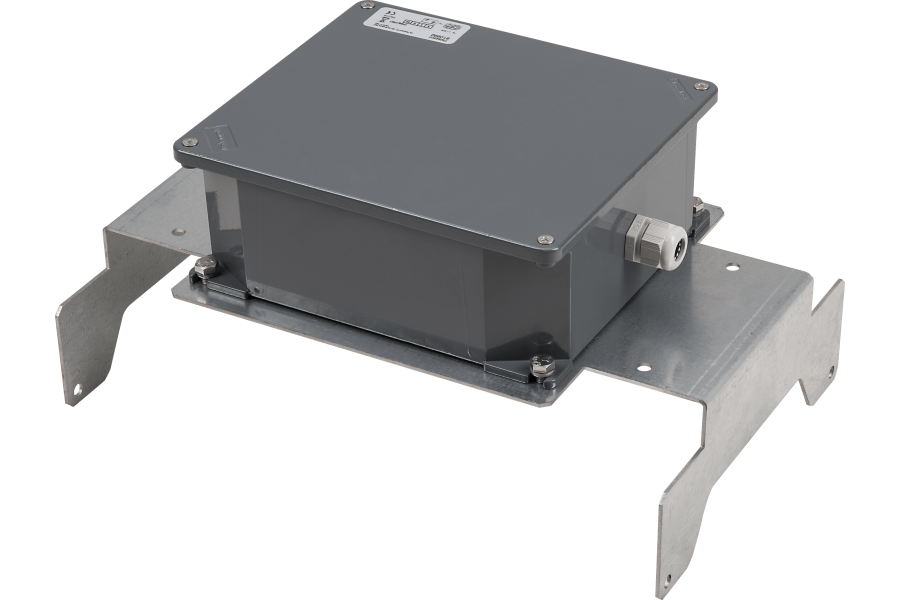

Tigua Emergency Kit

Emergency Kit

Part numbers Manufacturing material Description
811923 Aluminum alloy SERIES TIGUA Emergency KIT 1H
811924 Aluminum alloy SERIES TIGUA Emergency KIT 3H

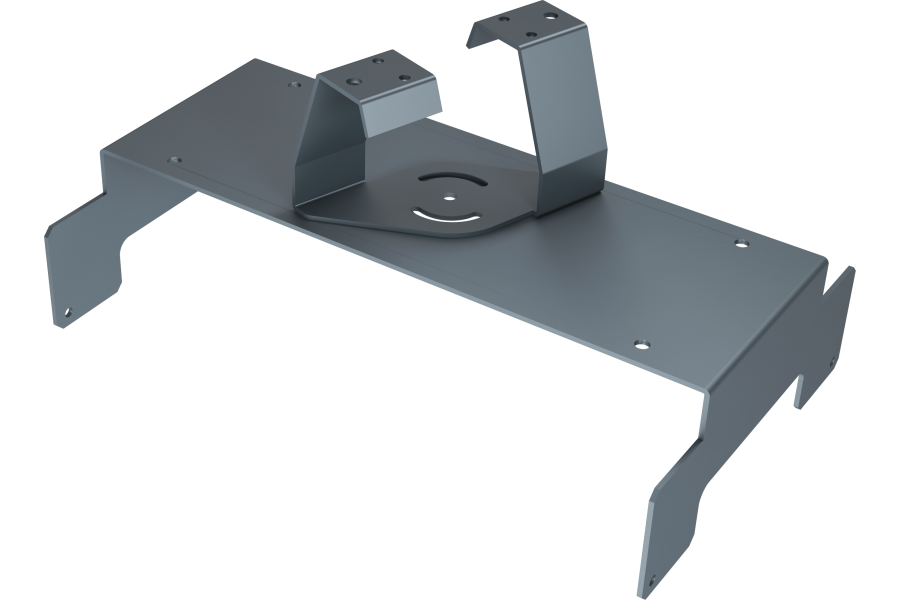

Tigua 0 - 90° ADJUSTABLE BRACKET FOR MOUNTING ON DOUBLE CHAIN

0 - 90° ADJUSTABLE BRACKET
Part numbers Manufacturing material Description
811919 Steel Adjustable double chain suspension

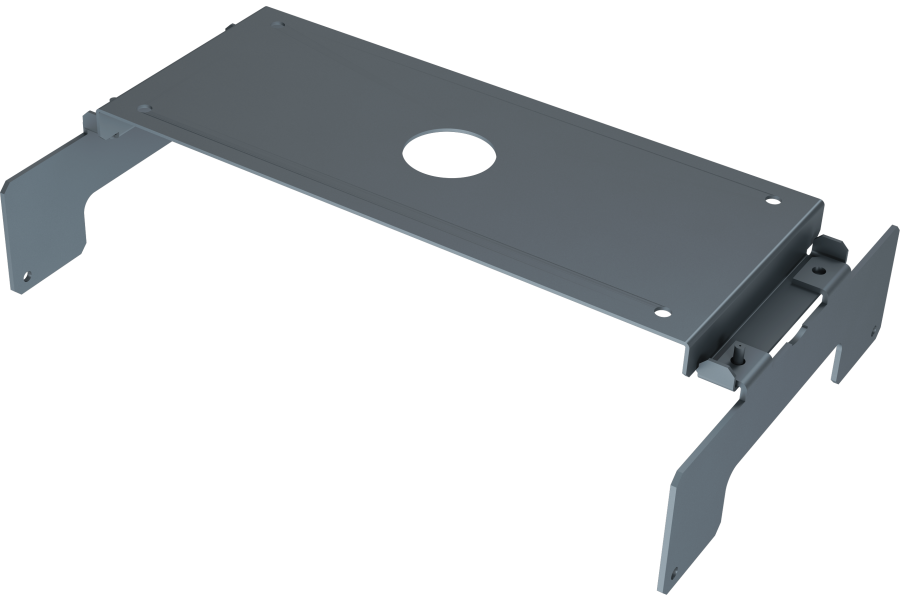

Tigua KIT WITH BRACKET FOR CEILING MOUNTING

KIT WITH BRACKET FOR CEILING MOUNTING

Part numbers Manufacturing material Description
811916 Steel Ceiling mounting KIT

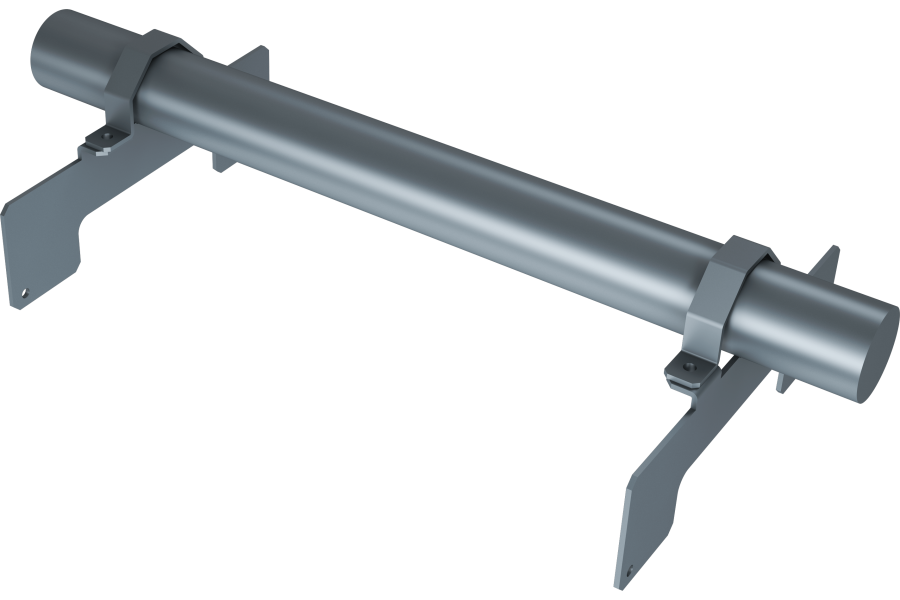

Tigua SET OF BRACKET FOR HORIZONTAL POLE MOUNTING Ø 60 MM

SET OF BRACKET FOR HORIZONTAL POLE MOUNTING Ø 60 MM
Part numbers Manufacturing material Description
811920 Steel Horizontal pole mounting 60mm

Certified in conformity to the ISO 9001 Standards, all the lighting fixtures are made in Italy and certified with several marks, such as ENEC, CESI, RINA, ATEX, IECex, NEMKO and QL (LED certificated against photobiological risk). QL LED lights fixtures reduce the energy amount required to reach the same level of illumination of traditional incandescent and discharge lamps, reducing the energy consumption and greenhouse gas emissions.

Each fitting is 100% individually tested with 24hr burn-in tests in our Italian manufacturing facility. All products are certified to the latest European standards. Expertly made in Italy all products are professionally distributed within the UK through Lewden. Our experienced lighting product designers continue to work with specifiers, architects and installers as they strive for excellence in meeting the ever-changing needs of customers.

Logo Lumicon
Logo Lia
Warranty
CESI
Certificate CESI
RINA
Certificate RINA
ATEX
Certificate ATEX
IECex
Certificate IECex
NEMKO
Certificate NEMKO
QL
Certificate QL
LDT File Data Sheet
