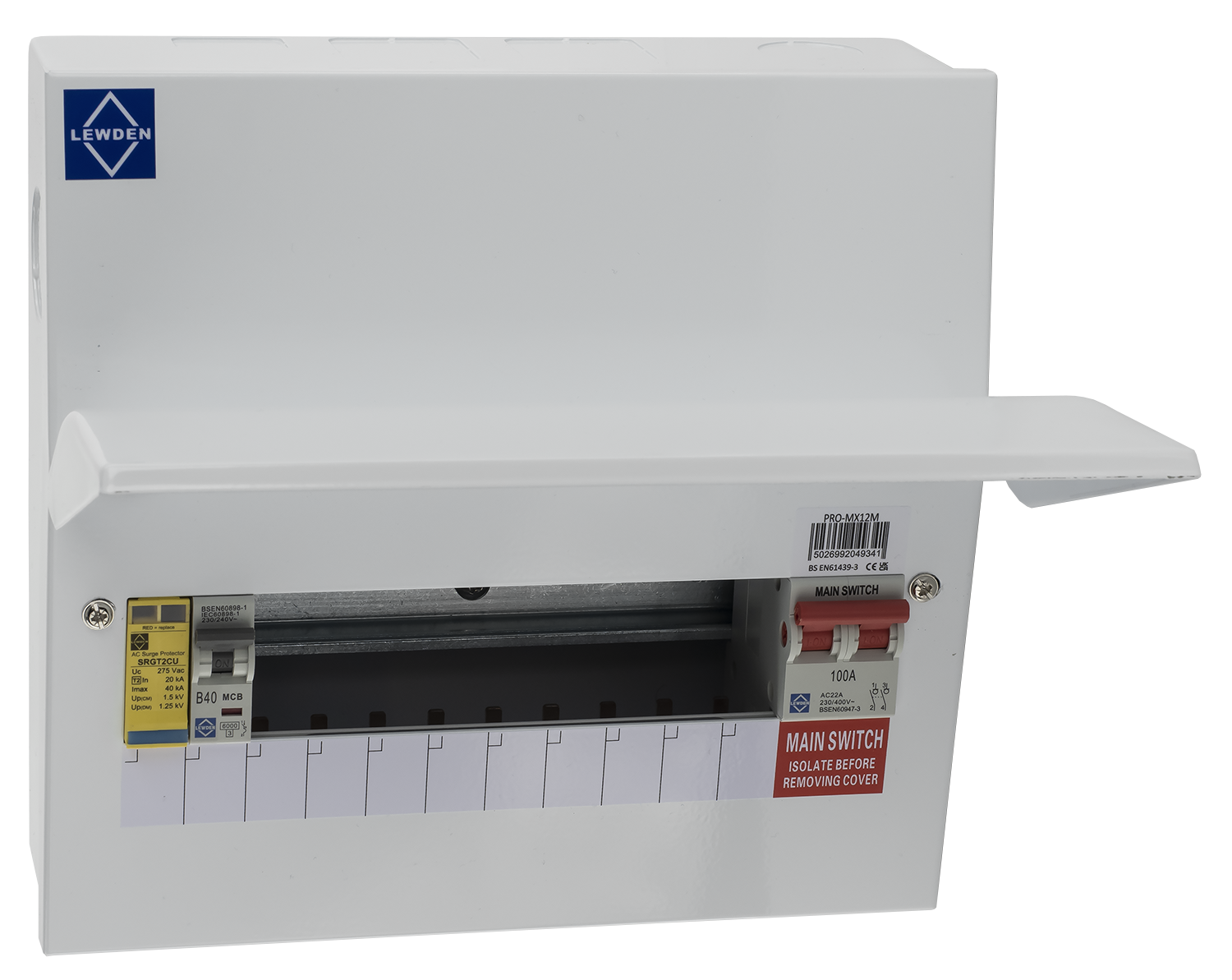

PRO Main Switch Consumer Unit with Type 2 Surge - Square Knockouts

  • Supplied complete with Type 2 Surge Protection Kit
  • Supplied complete with main switch.
  • One extra module for installation of SPD.
  • New & improved range.
  • Extra wiring space.
  • Selection of knockouts for mini trunking and conduits.
Keep up to date on the *NEW* 18th Edition Amendment 2 Regulations
PRO Main Switch Consumer Unit with Type 2 Surge - Square Knockouts
Product selector
Part number Rated current Modules Number Dimensions EAN Code
PRO-MX08MS 100A 6+1 266x210x106mm (HWD) 5026992051276
PRO-MX10MS 100A 8+1 266x244x106mm (HWD) 5026992051283
PRO-MX12MS 100A 10+1 266x281x106mm (HWD) 5026992051290
PRO-MX16MS 100A 14+1 266x353x106D (HWD) 5026992051306
PRO-MX21MS 100A 19+1 266x443x106mm (HWD) 5026992051313
