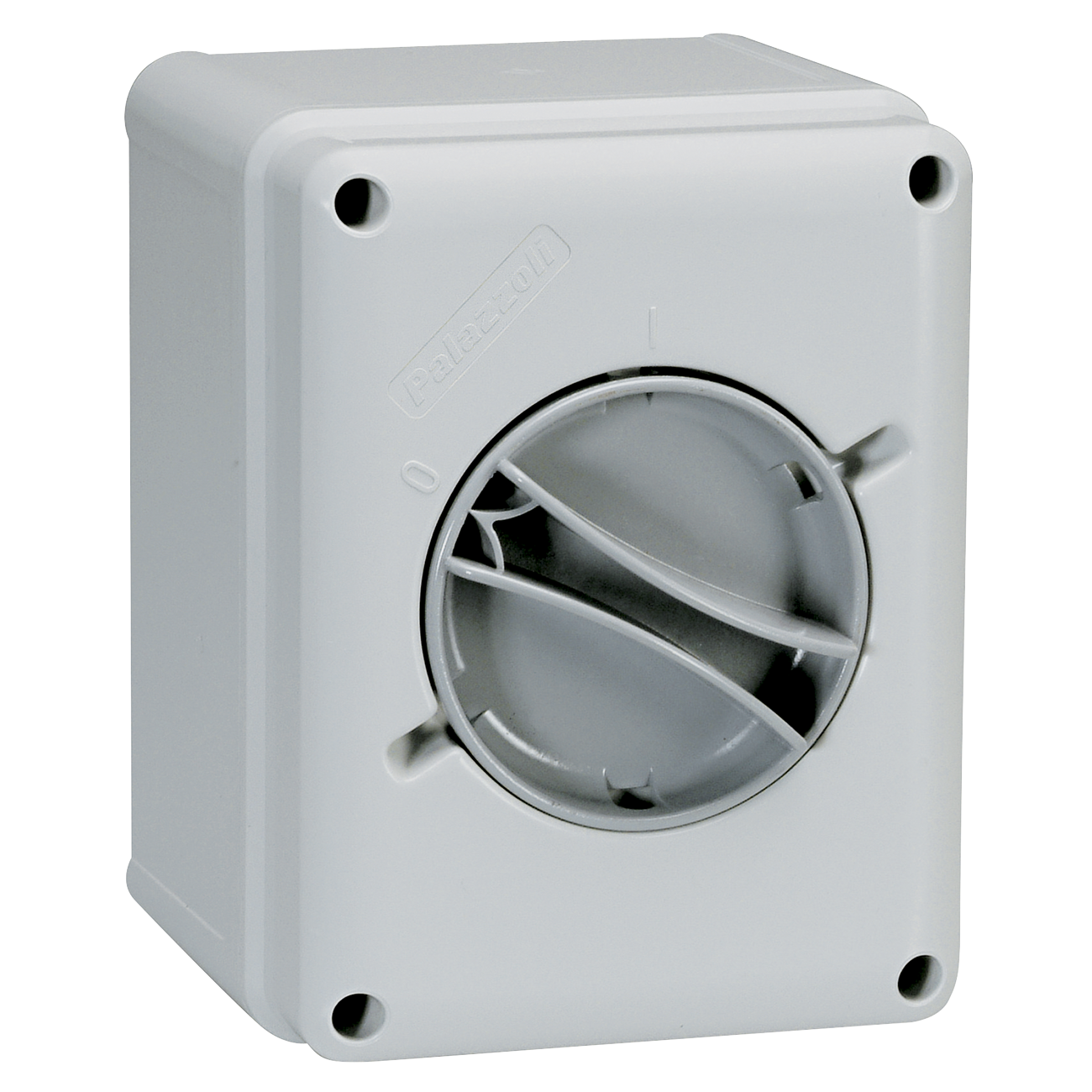

Control Rotary Isolators

  • Insulating material for wall-mounting standard applications.
  • Ensures the powering down (entire or partial) of the system, isolating it safely from any electrical power supply.
  • AC3-AC23A category and is also suitable for highly inductive loads.
  • Complete with terminal cover and padlockable handle in “0” and “1” position.
  • Rated current options from 16A up to 100A.
  • IP65 protection rating as per IEC/EN 60529.
  • IK08 impact resistance as per IEC/EN 62262.
  • Thermoplastic material.
Part number Poles Rated current Manufacturing material Dimensions EAN Code
209162 2P 16A Thermoplastic 158X121X126 mm 8014950015016
209163 3P 16A Thermoplastic 158X121X126 mm 8014950015023
209164 4P 16A Thermoplastic 158X121X126 mm 8014950015030
209253 3P 25A Thermoplastic 158X121X126 mm 8014950030347
209254 4P 25A Thermoplastic 158X121X126 mm 8014950030330
209322 2P 32A Thermoplastic 158X121X126 mm 8014950015047
209323 3P 32A Thermoplastic 158X121X126 mm 8014950015054
209324 4P 32A Thermoplastic 158X121X126 mm 8014950015061
209403 3P 40A Thermoplastic 250X158X138 mm 8014950030323
209404 4P 40A Thermoplastic 250X158X138 mm 8014950030316
209632 2P 63A Thermoplastic 250X158X138 mm 8014950015078
209633 3P 63A Thermoplastic 250X158X138 mm 8014950015085
209634 4P 63A Thermoplastic 250X158X138 mm 8014950015092
209103 3P 100A Thermoplastic 250X158X138 mm 8014950014996
209104 4P 100A Thermoplastic 250X158X138 mm 8014950015009
