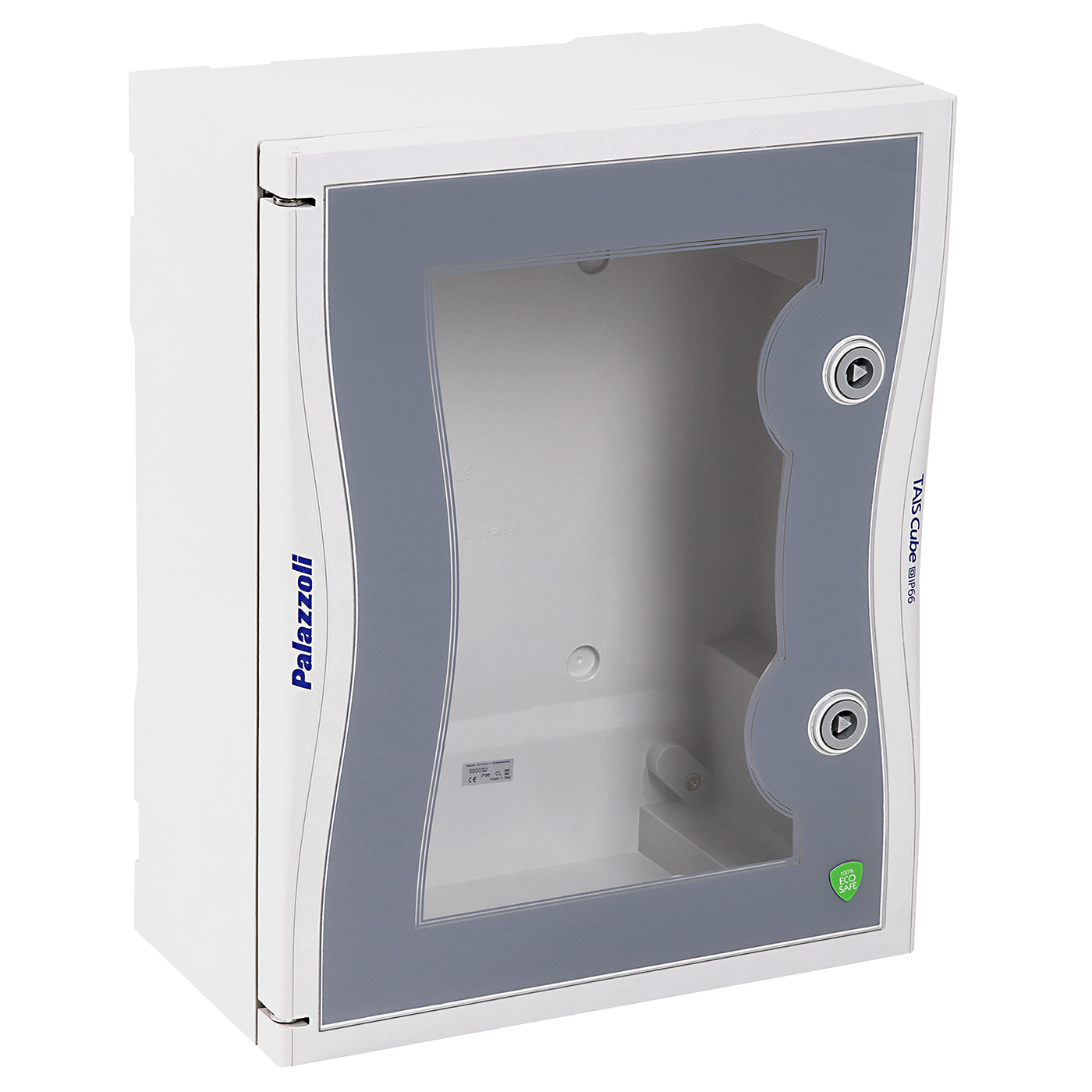

GRP Enclosures With Transparent Door

  • Distribution and automation board for heavy-duty applications.
  • Composed of 7 sizes in each version with blind or transparent door.
  • All elements are simply fixed with the "Click Cube" snap-in system.
  • Allow an opening wider than 180°.
  • Includes key with triangular insert and screw cover caps for double insulation.
  • IP66 protection rating as per IEC/EN 60529.
  • IK10 impact resistance as per IEC/EN 62262.
  • Thermosetting (GRP) material.
Part number Dimensions Protection degree Manufacturing material EAN Code
550031 258X304X160 mm (WHD) IP66 Thermosetting halogen free 8014950050901
550032 340X430X180 mm IP66 Thermosetting halogen free 8014950050918
550033 449X506X220 mm IP66 Thermosetting halogen free 8014950050925
550034 449X656X220 mm IP66 Thermosetting halogen free 8014950050932
550035 558X656X260 mm IP66 Thermosetting halogen free 8014950050949
550036 631X807X300 mm IP66 Thermosetting halogen free 8014950050956
550037 848X1058X350 mm IP66 Thermosetting halogen free 8014950052967
