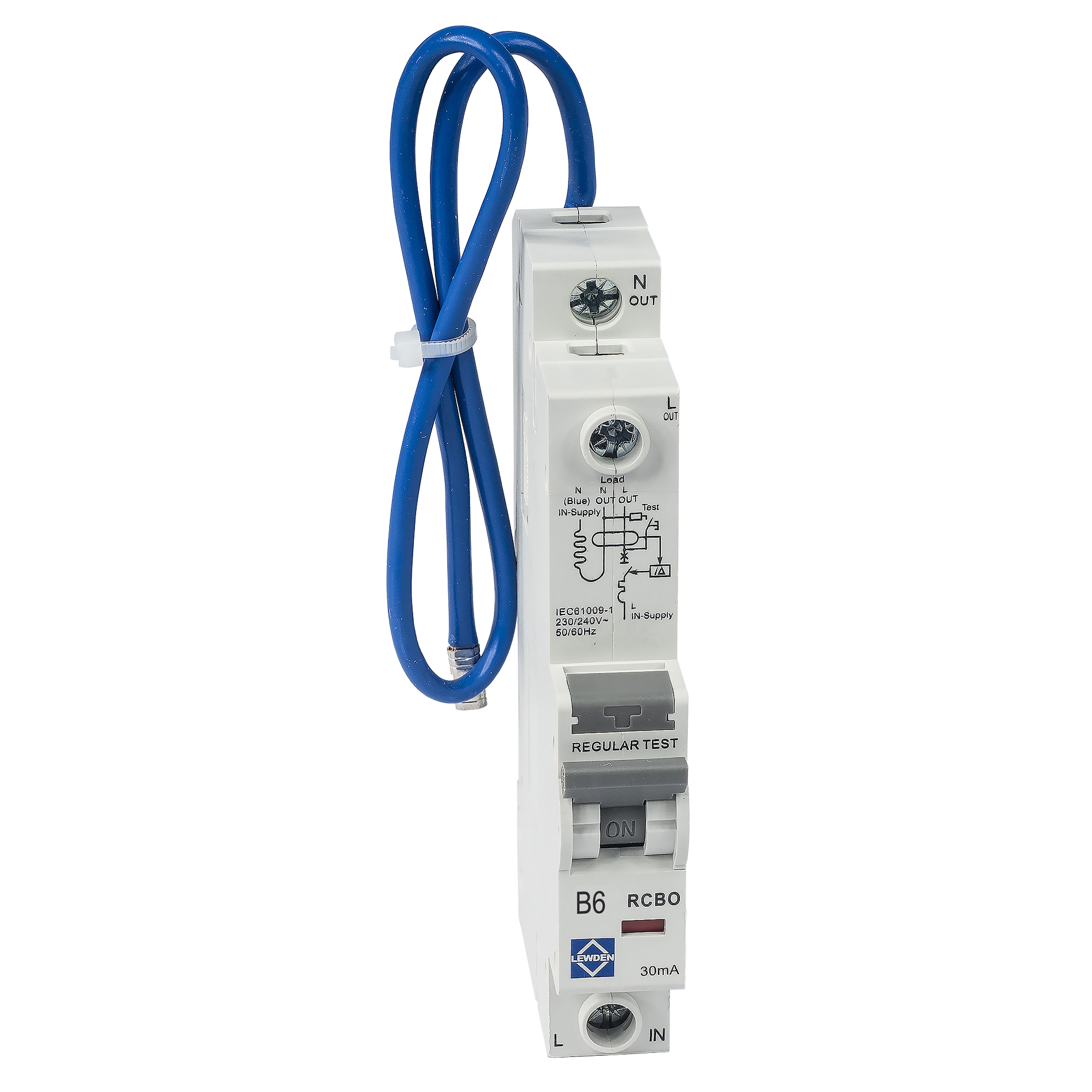

6kA RCBOs Single Pole

Designed and tested for use with Lewden branded distribution boards
Residual current circuit breaker with integral overcurrent protection
Class A
Single module RCBOs are suitable for use in TN-S,TN-C-S, & TT *network systems.

	Part number	Rated current	Trip curve	RCD Class	Residual Current	EAN Code
	RCBO-06/30/SPA	6A	B	A	30mA	5026992048658

	RCBO-10/30/SPA	10A	B	A	30mA	5026992048665

	RCBO-16/30/SPA	16A	B	A	30mA	5026992048672

	RCBO-20/30/SPA	20A	B	A	30mA	5026992048689

	RCBO-32/30/SPA	32A	B	A	30mA	5026992048696

	RCBO-40/30/SPA	40A	B	A	30mA	5026992048702

	RCBO-50/30/SPA	50A	B	A	30mA	5026992048719

	RCBO-06/30/1M/CA	6A	C	A	30mA	5026992048726

	RCBO-10/30/1M/CA	10A	C	A	30mA	5026992048733

	RCBO-16/30/1M/CA	16A	C	A	30mA	5026992048740

	RCBO-20/30/1M/CA	20A	C	A	30mA	5026992048757

	RCBO-32/30/1M/CA	32A	C	A	30mA	5026992048764

	RCBO-40/30/1M/CA	40A	C	A	30mA	5026992048771

	RCBO-50/30/1M/CA	50A	C	A	30mA	5026992048788

Technical guide

BS7671:2018 + AMENDMENT 2 : 2022

BS7671:2018 + AMENDMENT 2 : 2022

AMENDMENT 2 AND THE DESIGN AND INSTALLATION OF RESIDENTIAL CONSUMER UNITS
