10kA RCBOs

  • Designed and tested for use with Lewden branded distribution boards
  • Residual current circuit breaker with integral overcurrent protection
  • Class AC & A
  • Single module RCBOs are suitable for use in TN-S,TN-C-S, & TT *network systems.
Product selector
Part number Rated current Trip curve RCD Class Residual Current EAN Code
RCBO10-06/30/1MBA 6A B A 30mA 5026992048832
RCBO10-10/30/1MBA 10A B A 30mA 5026992048849
RCBO10-16/30/1MBA 16A B A 30mA 5026992048856
RCBO10-20/30/1MBA 20A B A 30mA 5026992048863
RCBO10-25/30/1MBA 25A B A 30mA 5026992048870
RCBO10-32/30/1MBA 32A B A 30mA 5026992048887
RCBO10-40/30/1MBA 40A B A 30mA 5026992048894
RCBO10-45/30/1MBA 45A B A 30mA 5026992048900
RCBO10-06/30/1MCA 6A C A 30mA 5026992048917
RCBO10-10/30/1MCA 10A C A 30mA 5026992048924
RCBO10-16/30/1MCA 16A C A 30mA 5026992048931
RCBO10-20/30/1MCA 20A C A 30mA 5026992048948
RCBO10-25/30/1MCA 25A C A 30mA 5026992048955

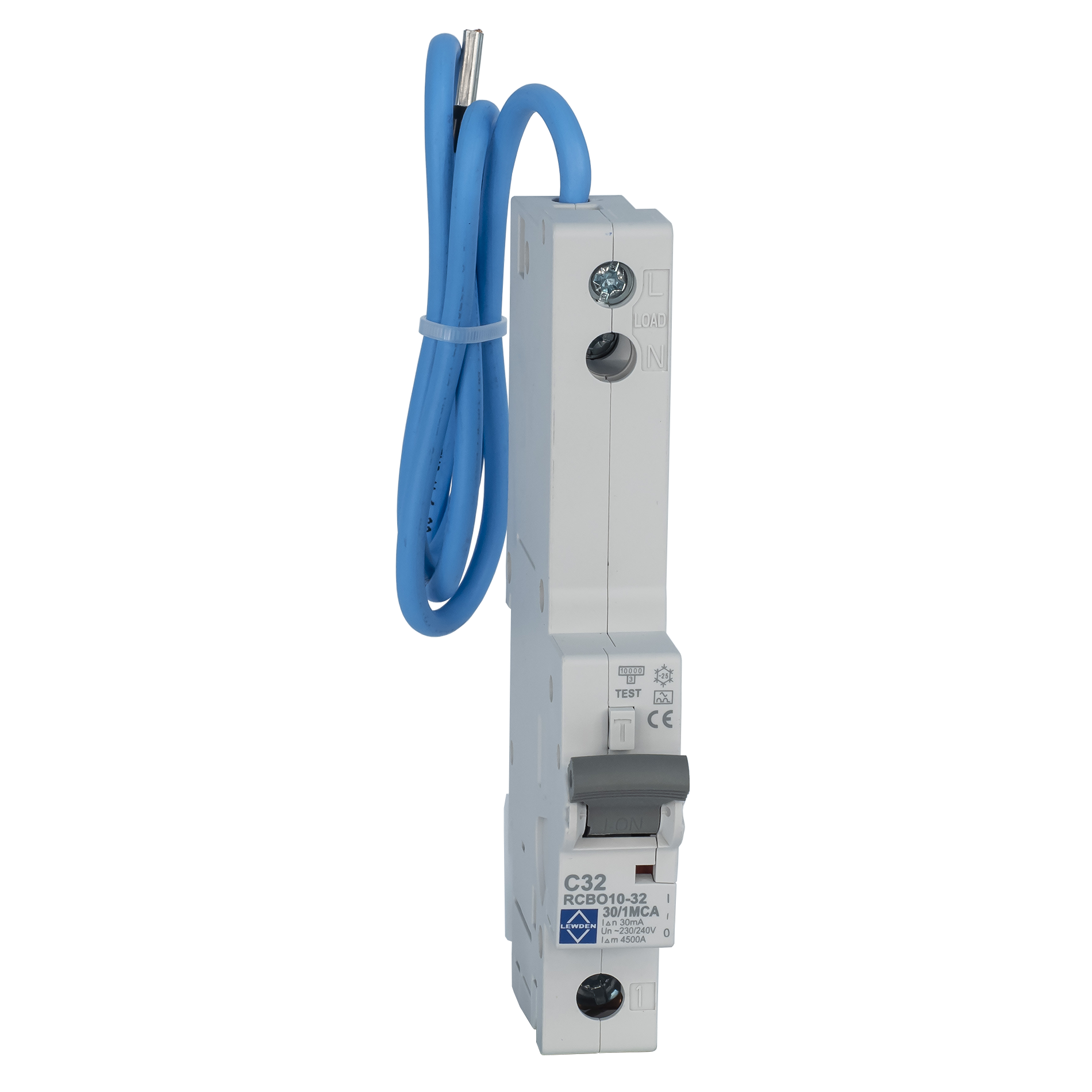

RCBO10-32/30/1MCA 32A C A 30mA 5026992048962
RCBO10-40/30/1MCA 40A C A 30mA 5026992048979
RCBO10-45/30/1MCA 45A C A 30mA 5026992048986
