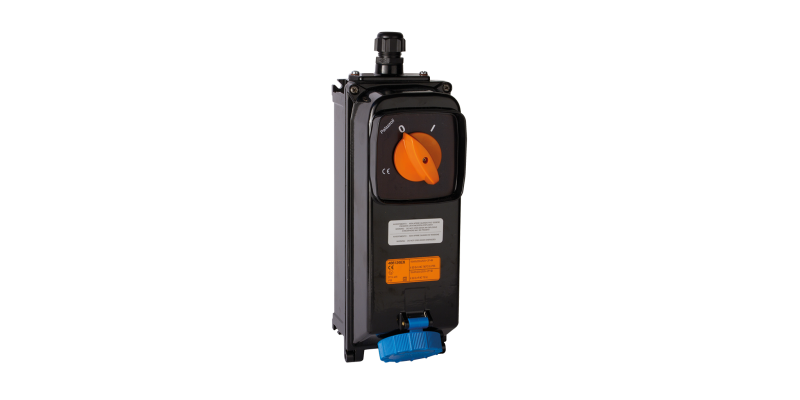

TAIS-EX Interlocked Sockets with Fuse Holder Base

  • Solutions For Explosive Atmospheres
  • Designed & Manufactured To Avoid The Risk Of Ignition
  • Tested In Compliance With Standards EN 60079-0
  • RAL 9005 Black Colour
  • Fuses Holder Base (Fuses not included)
TAIS-EX Interlocked Sockets with Fuse Holder Base
Product selector
Part number IP Protection degree Rated current Rated operating voltage Frequency Clock Position Poles
462124EX IP66 16A 110V 50/60Hz 4h 2P+
462134EX IP66 16A 110V 50/60Hz 4h 3P+
462144EX IP66 16A 110V 50/60Hz 4h 3P+N+
462126EX IP66 16A 230V 50/60Hz 6h 2P+
462139EX IP66 16A 230V 50/60Hz 9h 3P+
462149EX IP66 16A 230V 50/60Hz 9h 3P+N+
462129EX IP66 16A 400V 50/60Hz 9h 2P+
462136EX IP66 16A 400V 50/60Hz 6h 3P+
462146EX IP66 16A 400V 50/60Hz 6h 3P+N+
462137EX IP66 16A 500V 50/60Hz 7h 3P+
462147EX IP66 16A 500V 50/60Hz 7h 3P+N+
462224EX IP66 32A 110V 50/60Hz 4h 2P+
462234EX IP66 32A 110V 50/60Hz 4h 3P+
462244EX IP66 32A 110V 50/60Hz 4h 3P+N+
462226EX IP66 32A 230V 50/60Hz 6h 2P+
462239EX IP66 32A 230V 50/60Hz 9h 3P+
462249EX IP66 32A 230V 50/60Hz 9h 3P+N+
462229EX IP66 32A 400V 50/60Hz 9h 2P+
462236EX IP66 32A 400V 50/60Hz 6h 3P+
462246EX IP66 32A 400V 50/60Hz 6h 3P+N+
462237EX IP66 32A 500V 50/60Hz 7h 3P+
462247EX IP66 32A 500V 50/60Hz 7h 3P+N+
462324EX IP66 50A 110V 50/60Hz 4h 2P+
462334EX IP66 50A 110V 50/60Hz 4h 3P+
462344EX IP66 50A 110V 50/60Hz 4h 3P+N+
462326EX IP66 50A 230V 50/60Hz 6h 2P+
462339EX IP66 50A 230V 50/60Hz 9h 3P+
462349EX IP66 50A 230V 50/60Hz 9h 3P+N+
462329EX IP66 50A 400V 50/60Hz 9h 2P+
462336EX IP66 50A 400V 50/60Hz 6h 3P+
462346EX IP66 50A 400V 50/60Hz 6h 3P+N+
462337EX IP66 50A 500V 50/60Hz 7h 3P+
462347EX IP66 50A 500V 50/60Hz 7h 3P+N+
