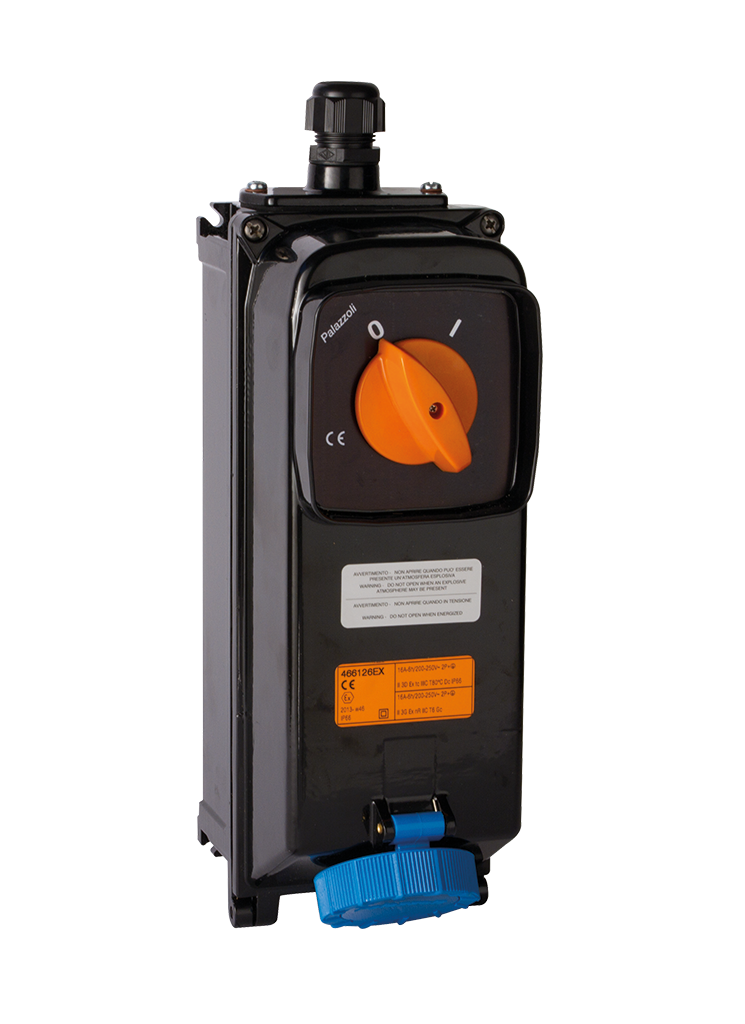

TAIS-EX Interlocked Sockets

  • Solutions For Explosive Atmospheres
  • Designed & Manufactured To Avoid The Risk Of Ignition
  • Tested In Compliance With Standards EN 60079-0
  • RAL 9005 Black Colour
TAIS-EX Interlocked Sockets
Product selector
Part number IP Protection degree Rated current Rated operating voltage Frequency Clock Position Poles
461124EX IP66 16A 110V 50/60Hz 4h 2P+
461134EX IP66 16A 110V 50/60Hz 4h 3P+
461144EX IP66 16A 110V 50/60Hz 4h 3P+N+
461126EX IP66 16A 230V 50/60Hz 6h 2P+
461139EX IP66 16A 230V 50/60Hz 9h 3P+
461149EX IP66 16A 230V 50/60Hz 9h 3P+N+
461129EX IP66 16A 400V 50/60Hz 9h 2P+
461136EX IP66 16A 400V 50/60Hz 6h 3P+
461146EX IP66 16A 400V 50/60Hz 6h 3P+N+
461137EX IP66 16A 500V 50/60Hz 7h 3P+
461147EX IP66 16A 500V 50/60Hz 7h 3P+N+
461224EX IP66 32A 110V 50/60Hz 4h 2P+
461234EX IP66 32A 110V 50/60Hz 4h 3P+
461244EX IP66 32A 110V 50/60Hz 4h 3P+N+
461226EX IP66 32A 230V 50/60Hz 6h 2P+
461239EX IP66 32A 230V 50/60Hz 9h 3P+
461249EX IP66 32A 230V 50/60Hz 9h 3P+N+
461229EX IP66 32A 400V 50/60Hz 9h 2P+
461236EX IP66 32A 400V 50/60Hz 6h 3P+
461246EX IP66 32A 400V 50/60Hz 6h 3P+N+
461237EX IP66 32A 500V 50/60Hz 7h 3P+
461247EX IP66 32A 500V 50/60Hz 7h 3P+N+
461324EX IP66 63A 110V 50/60Hz 4h 2P+
461334EX IP66 63A 110V 50/60Hz 4h 3P+
461344EX IP66 63A 110V 50/60Hz 4h 3P+N+
461326EX IP66 63A 230V 50/60Hz 6h 2P+
461339EX IP66 63A 230V 50/60Hz 9h 3P+
461349EX IP66 63A 230V 50/60Hz 9h 3P+N+
461329EX IP66 63A 400V 50/60Hz 9h 2P+
461336EX
461346EX IP66 63A 400V 50/60Hz 6h 3P+N+
461337EX IP66 63A 500V 50/60Hz 7h 3P+
461347EX IP66 63A 500V 50/60Hz 7h 3P+N+
